DDSS001-ANSI-1-SUS201
D and D Hardware
ANSI Grade 1, UL Listed / UL10C
Stainless Steel 304 / 316 / 201
SSS , PSS , PVD , PB, AB , AC, SC, PC, SB, MB
Silver,Black, Golden, Antique Brass, Antique Copper
Wooden Door, Metal Door, Steel Door, Interior Door, Outer Door etc.
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

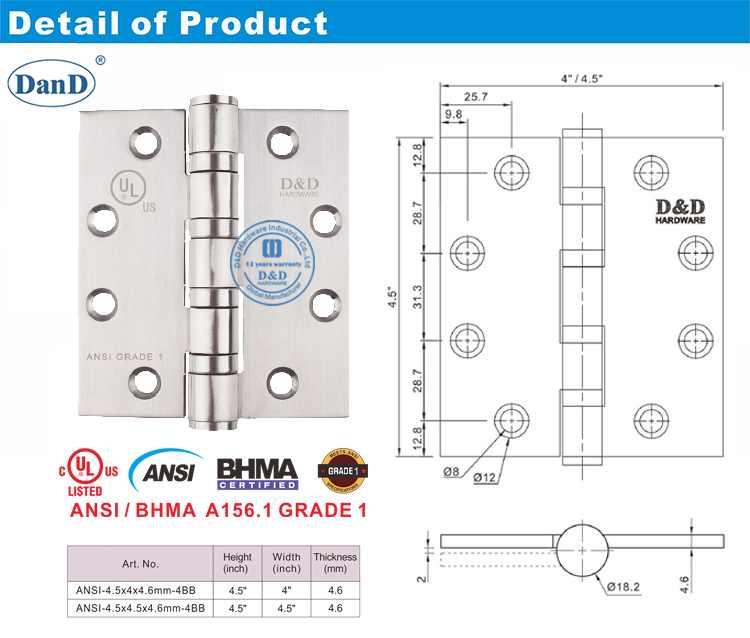

ANSI BHAM SUS201 Heavy Duty Door Hinge for Fire Rated Door-DDSS001-ANSI-1
SS201 Heavy Duty Door hinge, it is durable and easy to use. As a professional hinge supplier in China, we provide customers various quality Full Mortise Fire Rated Hinge and they apply to different commercial of doors. Full Mortise Fire Rated Hinge is one kind of our Wood Door Hinge. The material of Fire Rated Hinge is stainless steel, so it can keep the original shape very well. It won't turn yellow or rust. The UL Fire Rated Hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of Durable Fire Rated Hinge become old and bad. The Durable Wood Door Hinge can also keep long-term lubrication, make you convenient to open and close the door. The SSS201 Full Mortise Fire Rated Hinge is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.
Product Overview
The D&D range of architectural hinges is manufactured to the highest engineering standards and designed to offer a high price/ performance ratio.
They have been successfully type tested to all the requirements of BS EN 1935, ANSI/BHMA,UL 10C, 3 hours Fire Rate.
Stainless steel leaf, fix/loos /loose non-rising/non-removable pin, ball bearing/washers, flat/ rivet/ball/crown tip and screw provide enhanced durability and security.
Product name | ANSI BHAM SUS201 Heavy Duty Door Hinge for Fire Rated Door-DDSS001-ANSI-1 |
Product Model | DDSS001-ANSI-1-SUS201 |
Certification | ANSI Grade 1, UL Listed / UL10C |
| Cycle-test | Grade1: 2500,000 (two million and five hundred thousand cycle test) |
UL File Number | R38013 |
Notify Body | UL From U.S.A |
UL certificate item | 4.0"x3.0"x3.0mm 4.0"x3.5"x3.0mm 4.0"x4.0"x3.0mm 4.5"x4.0"x3.0mm 4.5"x4.5"x3.0mm 4.5"x4.0"x4.6mm 4.5"x4.0"x3.4mm 4.5"x4.5"x3.4mm 4.5"x4.5"x4.6mm |
Material | Stainless Steel 201, 304 or 316 |
Fitting | Flat tip, ball bearing, fix pin, screws |
Finish | Satin stainless steel, Polished stainless steel, Polished brass,Chrome-plated(polish chrome plate&satin chrome plate), Antique brass, Antique copper, Matt black，Physical Vapor Deposition |
| Color | Silver,Black, Golden, Antique Brass, Antique Copper |
Standard | Strictly according to ANSI/BHMA, Meets ANSI-A156.7. |
Suitable for | Wooden door, Metal door, Steel door , Fire rated door |
Packaging & Shipping
ANSI BHAM SUS201 Heavy Duty Door Hinge for Fire Rated Door-DDSS001-ANSI-1
| MOQ | 500 Pairs |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
D&D-To ensure the product quality through state-of-the-art inspection facilities.The inspection covers whole range form the incoming materials to the delivered products in Chemistry,mechanical properties, dimensional and necessary metallurgical structure.
Company Information
Contact us
ANSI BHAM SUS201 Heavy Duty Door Hinge for Fire Rated Door-DDSS001-ANSI-1
SS201 Heavy Duty Door hinge, it is durable and easy to use. As a professional hinge supplier in China, we provide customers various quality Full Mortise Fire Rated Hinge and they apply to different commercial of doors. Full Mortise Fire Rated Hinge is one kind of our Wood Door Hinge. The material of Fire Rated Hinge is stainless steel, so it can keep the original shape very well. It won't turn yellow or rust. The UL Fire Rated Hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of Durable Fire Rated Hinge become old and bad. The Durable Wood Door Hinge can also keep long-term lubrication, make you convenient to open and close the door. The SSS201 Full Mortise Fire Rated Hinge is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.
Product Overview
The D&D range of architectural hinges is manufactured to the highest engineering standards and designed to offer a high price/ performance ratio.
They have been successfully type tested to all the requirements of BS EN 1935, ANSI/BHMA,UL 10C, 3 hours Fire Rate.
Stainless steel leaf, fix/loos /loose non-rising/non-removable pin, ball bearing/washers, flat/ rivet/ball/crown tip and screw provide enhanced durability and security.
Product name | ANSI BHAM SUS201 Heavy Duty Door Hinge for Fire Rated Door-DDSS001-ANSI-1 |
Product Model | DDSS001-ANSI-1-SUS201 |
Certification | ANSI Grade 1, UL Listed / UL10C |
| Cycle-test | Grade1: 2500,000 (two million and five hundred thousand cycle test) |
UL File Number | R38013 |
Notify Body | UL From U.S.A |
UL certificate item | 4.0"x3.0"x3.0mm 4.0"x3.5"x3.0mm 4.0"x4.0"x3.0mm 4.5"x4.0"x3.0mm 4.5"x4.5"x3.0mm 4.5"x4.0"x4.6mm 4.5"x4.0"x3.4mm 4.5"x4.5"x3.4mm 4.5"x4.5"x4.6mm |
Material | Stainless Steel 201, 304 or 316 |
Fitting | Flat tip, ball bearing, fix pin, screws |
Finish | Satin stainless steel, Polished stainless steel, Polished brass,Chrome-plated(polish chrome plate&satin chrome plate), Antique brass, Antique copper, Matt black，Physical Vapor Deposition |
| Color | Silver,Black, Golden, Antique Brass, Antique Copper |
Standard | Strictly according to ANSI/BHMA, Meets ANSI-A156.7. |
Suitable for | Wooden door, Metal door, Steel door , Fire rated door |
Packaging & Shipping
ANSI BHAM SUS201 Heavy Duty Door Hinge for Fire Rated Door-DDSS001-ANSI-1
| MOQ | 500 Pairs |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Test
D&D-To ensure the product quality through state-of-the-art inspection facilities.The inspection covers whole range form the incoming materials to the delivered products in Chemistry,mechanical properties, dimensional and necessary metallurgical structure.
