The D and D Hardware door lock have been successfully tested to all the requirement of BS EN 12209.
Features & Functions
D and D Hardware's Lock and latch designed to support the entire the door levers, knobs and other unsprung furniture.The range is suitable for general commercial Door.
Provide complementary architectural quality,design integrity and choice of exterior finishes, Whenever you specify D&D hardware architectural hardware, D&D hardware guarantees the perfect match of form and function. D&D Hardware designed this series of products based on the principle of fire safety. Solid stainless steel latchbolts, deadbolts, followers, forend and strike plates provide enhanced durability and safety.
Rebate conversion are available to allow locks to be fitted in most rebated door sections.
1.Stainless steel forend and strike plate .
2.Reversible latchbolt.
3.Solid stainless steel latchbolt
4.Stainless steel spindle follower.
5.Flush fitting case rivets and screws.
6.Solid stainless steel deadbolt .
Guarantee
D and D Hardware mortise locks are supplied with a 5 year guarantee.See each individual product page for details.
BS EN12209 construction hardware machinery operating locks, latches and locking plates
EN 12209 uses an 11-digit coding system to classify mechanically operated locks, latches and locking plates. The basis of this standard is a comprehensive classification system for evaluating a wide range of products needed to meet the diverse requirements of the European market.
The features evaluated include normal use (and abuse) force, long-term durability, fire/smoke resistance, corrosion resistance, temperature resistance, and safety, including maneuverability and physical properties.
1.Category of use
Three grades are identified:
Grade 1 : Low frequency of use by people with a high incentive to exercise care and a small chance of misuse.E.g.Internal residential doors
Grade 2 : Medium frequency of use by people with some incentive to exercise care but where there is some chance of misuse.E.g.Internal office doors.
Grade 3 : High frequency of use by public or others with little incentive to exercise care and with a high change of misuse.E.g.Public doors.
2.Durability
Twelve grades are identified with minimum figures for deadbolt and snib operation, and latch bolt operation with and without side load, as show. The side load is applied to the latch bolt when it is being withdrawn.
Grade A | 50,000 tested cycles no stress on latch bolt | Grade L | 100,000 tested cycles stress on latch bolt 25 N |
Grade B | 100,000 tested cycles no stress on latch bolt | Grade M | 200,000 tested cycles stress on latch bolt 25 N |
Grade C | 200,000 tested cycles no stress on latch bolt | Grade R | 100,000 tested cycles stress on latch bolt 50 N |
Grade F | 50,000 tested cycles stress on latch bolt 10 N | Grade S | 200,000 tested cycles stress on latch bolt 50 N |
Grade G | 100,000 tested cycles stress on latch bolt 10 N | Grade W | 200,0o0 tested cycles stress on latch bolt 100N |
Grade H | 100,000 tested cycles stress on latch bolt 10 N | Grade X | 200,000 tested cycles stress on latch bolt 100N |
3.Door mass and Closing Force
Nine grades are identified with maximum figure for closing force at various door masses as shown. Note :losing force is form a standing. Star :i.e.fully extended latch bolt in contact with striking plate at star of test .
Maximun closing | Up to 100kg | Door mass up to 200kg | Above 200kg |
15N | grade 7 | grade 8 | grade 9 |
25N | grade 4 | grade 5 | grade 6 |
50N | grade 1 | grade 2 | grade 3 |
4.Fire resistance
Two grade are identified :
Grade 0 : Not approved for use on fire/smke door assemblies
Grade 1 : Suitable for use on fire/smoke door assemblies tested to BS EN 1634-1 etc.
5.Safety
No requirement, but note : a lock or latch conforming to this standard can, at the same time, also be part of an exit device conforming to BS EN 179 or BS EN 1125.
6.Corrosion resistance
Eight grade are identified with neutral salt-spray (NSS)corrosion resistance grades from BS EN 1670:1988, with and without Temperaturere resistance as shown :
Corrision resistance (NSS) | Temperature resistance | |
No requiremen | -20c to +80C | |
240 hours | grade D:very high corrosion resistance | grade G: very high corrosion resistance |
96 hours | grade C:high corrosion resistance | grade F: high corrosion resistance |
48 hours | grade B: moderate corrosion resistance | grade E: moderate corrosion resistance |
24 hours | grade A: low corrosion resistance | |
No requirement | grade O: no definedcorrosion resistance | |
7. Security and drill resistance
Seven grades are identified with minimum figures for requirements relating to physical attack, with or without drilling of the lockcase, as shown:
Icreasing resistance to attack | No drilling requirement | Drilling requirement |
grade6: very high security | grade7: very high security | |
grade4: high security | grade5: high security | |
grade3: medium security | ||
grade2: low security | ||
grade1 : minimum security |
8. Field of door application.
A | mortise lock, unrestricted application | J | rim lock, pivot door, inwards opening |
B | mortise lock, pivot door | K | mortise lock, pivot door,locked form inside |
C | mortise lock, sliding door | L | mortise lock, sliding door.locked form inside |
D | rim lock, unrestricted application | M | rim lock, pivot door, locked form inside |
E | rim lock, pivot door | N | rim lock, sliding door, locked form inside |
F | rim lock, sliding door | P | mortise lock, pivot door, supported,locked form inside |
G | bored lock, unrestricted application | R | rim lock, pivot door, inwards opening,locked form inside |
H | mortise lock, pivot door,supported |
9.Type of Key operation and locking.
Nine grades are identified for differing types of key operation, The grading determines how the lock is assessed foe deadlocking requirement as shown. In addition, there is a maximum key torque operating requirement of 1.5 Nm and a minimum key strength requirement of 2.5 Nm .
Grade 0 : Not applicable;
Grade A : Cylinder lock or latch; manually locking;
Grade B : Cylinder lock or latch; automatically Locking;
Grade C : Cylinder lock or latch; manually locking with intermediate locking;
Grade D : Lever lock or latch; manually locking;
Grade E : Lever lock or latch; automatically locking;
Grade F : Lever lock or latch; manually locking with intermediate locking;
Grade H : Lock or latch without key opreation;manually locking;
Grade G : Lock without key operation; automatically locking.
10. Type of spindle operation
Five grades are identified
Grade 0 : Lock without follower
Grade 1 : Lock with sprung lever or knob
Grade 2 : Lock with light unsprung leverg.
Grade 3 : Lock with heavy unsprung lever
Grade 4 : Lock with manufacturer's own specification furniture
11. Key identification
Nine grades are identified relating to the number of differs and levers.Grades to a latch with no locking action.
No of differs | No of levers | ||||||||
grade H | |||||||||
grade F | grade G | ||||||||
grade D | grade E | ||||||||
grade B | grade C | ||||||||
grade A | |||||||||
grade 0 | |||||||||

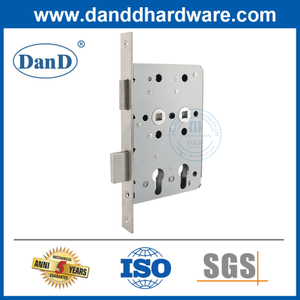

D&D CE mark European Mortise Lock Successfully tested for conformity to all the requirements of BS EN 12209, 11 Classification:3X910G3BC20
BS EN 1634 Part 1: 2000
The European Fire Safety Satandard for determining the fire resistance of door and shutter assemblies including hardware designed for installations within openings incorporated in vertical seprating elements (doorsets).
Fire Doors-Locks
The UK construction Products Regulations require locks for use on fire doors to be safe and durable. British/European standards BS EN 12209 is the recognised way of demonstrating compliance and requires that an official Notified Body proves both the product and the manufaturer's factory product controls are satisfactory before CE marking can be applied. It is recommended that locks fitted to Fire doors should be CE marked.
CE Marking
The CE mark is the easiest and safest way to provide hardware that complies with the latest UK building product regulations to use fire, smoke and escape doors.
BS8300 & Approved Document "M" of the Building Regulations
These documents recommend that locks should have a backset of at least 55 mm and a center of at least 72 mm. A Lock with keyway above the cylinder are also very suitable.
