What is UL 10C certification and why does it matter for door hinges?

Question

Accepted Answer

UL 10C is the Positive Pressure Fire Test standard administered by Underwriters Laboratories for door assemblies and their components. When a door hinge carries UL 10C certification, it has been independently tested under simulated fire conditions with positive pressure applied to the unexposed side of the door — replicating real fire dynamics. For D&D Hardware's hinges, this certification confirms that the hinge maintains the fire door's structural integrity for a full 3 hours (180 minutes) under these demanding conditions, preventing the passage of flame and hot gases through the door assembly. This certification is legally required by NFPA 80 for all hardware installed on fire-rated door assemblies in the United States.

Evaluation Criteria	UL 10C Listed Hinge	Non-Certified Hinge
NFPA 80 Compliance	Fully Compliant	Code Violation
Fire Test Evidence	Independent Lab Verified	No Documented Evidence
Building Inspection	Passes AHJ Review	Will Fail Inspection
Insurance Validity	Coverage Maintained	Coverage May Be Voided
Traceability	UL File No. Publicly Verifiable	No Third-party Verification
Positive Pressure Performance	Tested Up to 3 hours	Unknown Performance
Ongoing Quality Audits	UL Factory Surveillance Program	No External Oversight
US & Canada Acceptance	UL/cUL Dual Listing Available	Not Recognized
Project Liability	Professional Standard Met	Negligence Exposure

Size (H×W×T)	4.0" × 3.0" × 3.0mm	4.0" × 3.5" × 3.0mm	4.0" × 4.0" × 3.0mm	4.0" × 4.0" × 3.4mm
Bearing Type	2 Ball Bearing	2 Ball Bearing	2 Ball Bearing	2 Ball Bearing
Weight	Standard Weight	Standard Weight	Standard Weight	Standard Weight
Certification	UL	UL	UL	UL
UL10C Fire Rating	3 Hours	3 Hours	3 Hours	3 Hours
UL File	R38013	R38013	R38013	R38013

Size (H×W×T)	4.5" × 4.0" × 3.0mm	4.5" × 4.5" × 3.0mm	4.5" × 4.0" × 3.4mm	4.5" × 4.5" × 3.4mm	4.5" × 4.0" × 4.6mm	4.5" × 4.5" × 4.6mm
Bearing Type	2 Ball Bearing	2 Ball Bearing	2 Ball Bearing	2 Ball Bearing	4 Ball Bearing	4 Ball Bearing
Weight	Standard Weight	Standard Weight	Standard Weight	Standard Weight	Heavy Duty	Heavy Duty
Certification	UL	UL	UL	UL/ANSI/BHMA	UL/ANSI/BHMA	UL/ANSI/BHMA
UL10C Fire Rating	3 Hours	3 Hours	3 Hours	3 Hours	3 Hours	3 Hours
UL File	R38013	R38013	R38013	R38013	R38013	R38013

Size (H×W×T)	5.0" × 3.0" × 3.0mm	5.0" × 3.5" × 3.0mm	5.0" × 4.0" × 3.4mm	5.0" × 4.0" × 3.0mm	5.0" × 4.5" × 3.4mm	5.0" × 4.0" × 4.6mm	5.0" × 4.5" × 4.6mm	5.0" × 5.0" × 4.6mm	5.0" × 4.0" × 4.8mm	5.0" × 4.5" × 4.8mm	5.0" × 5.0" × 4.8mm
Bearing Type	2 Ball Bearing	2 Ball Bearing	2 Ball Bearing	2 Ball Bearing	2 Ball Bearing	4 Ball Bearing	4 Ball Bearing	4 Ball Bearing	4 Ball Bearing	4 Ball Bearing	4 Ball Bearing
Weight	Standard Weight	Standard Weight	Standard Weight	Standard Weight	Standard Weight	Heavy Duty	Heavy Duty	Heavy Duty	Heavy Duty	Heavy Duty	Heavy Duty
Certification	UL	UL	UL	UL	UL	UL	UL	UL	UL/ANSI/BHMA	UL/ANSI/BHMA	UL/ANSI/BHMA
Fire Rating	3 Hours	3 Hours	3 Hours	3 Hours	3 Hours	3 Hours	3 Hours	3 Hours	3 Hours	3 Hours	3 Hours
UL File	R38013	R38013	R38013	R38013	R38013	R38013	R38013	R38013	R38013	R38013	R38013

How to Choose the Right UL Listed Fire Door Hinges for Commercial Projects

Fire Rating

UL File No.

Certified Sizes

Bearing Types

01

03

05

02

04

06

Why UL 10C Certification Is Non-Negotiable for Fire Door Hardware

The 5-Point Evaluation Framework for UL Door Hinges

1.Certification Verification

2.Fire Rating Duration

3.Mechanical Durability (ANSI/BHMA Rating)

4.Material & Finish Quality

5.Bearing Configuration

Ready to Source Compliant UL Listed Hinges?

Whether you need UL certified hinges for a single project or an ongoing supply partnership for your door manufacturing operation,

D&D Hardware delivers verified quality at factory-direct pricing.

UL 10C Listed vs. Non-Certified Hinges: A Decision Matrix

How to Evaluate UL Door Hinge Manufacturers

The global market for UL listed fire door hinges includes both direct manufacturers and trading intermediaries. Understanding the distinction and applying rigorous evaluation criteria protects your supply chain from quality inconsistencies, delivery failures, and certification risks.

Verify, Don't Trust

Factory-Direct Advantage

Certification Breadth

Dual Certification Value

Export Track Record

OEM & Customization

D&D Hardware

Based on the evaluation criteria outlined in this guide, the following manufacturer demonstrates strong alignment across all five assessment dimensions. This recommendation is based on verified certifications, product range, and established market presence.

D&D Hardware

UL/cUL Fire Rating: 3 Hours

21 Individually Certified Sizes

ANSI/BHMA A156.1 Grade 1 & 2

BHMA A156.18 Materials & Finishes

Factory-Direct Pricing

Full OEM & Private Label Support

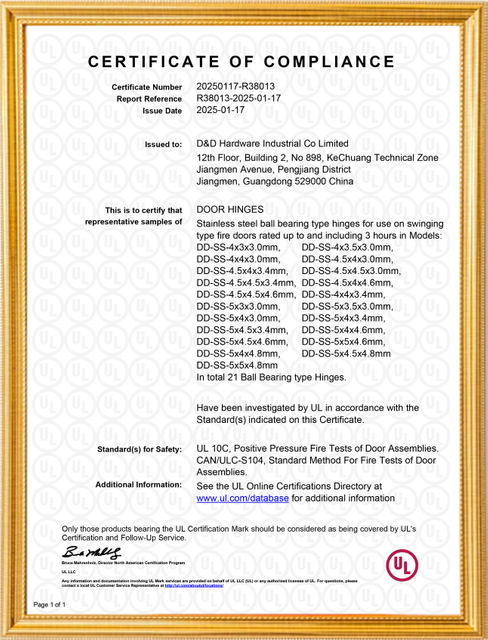

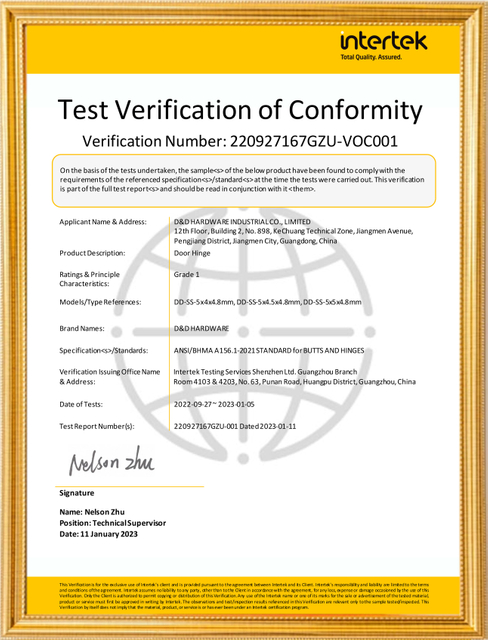

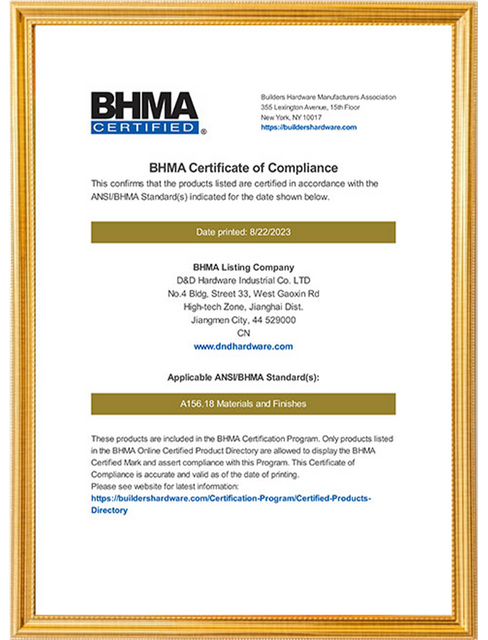

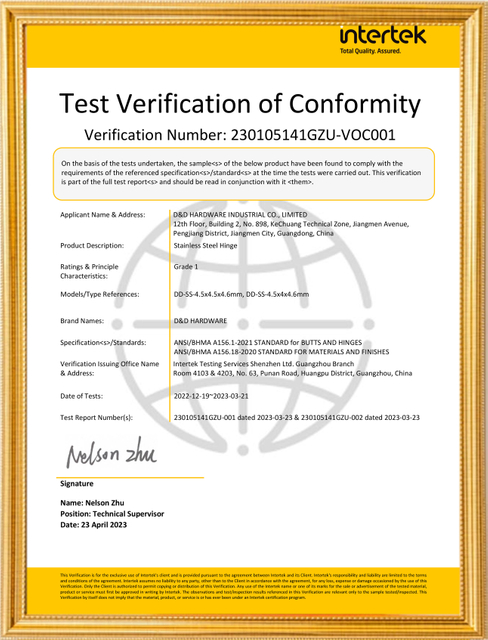

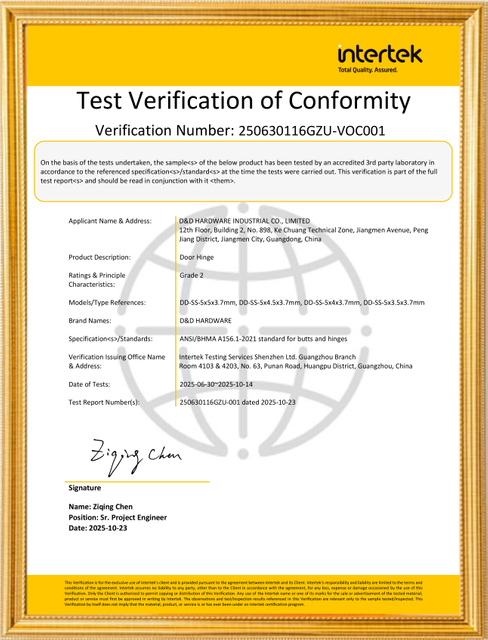

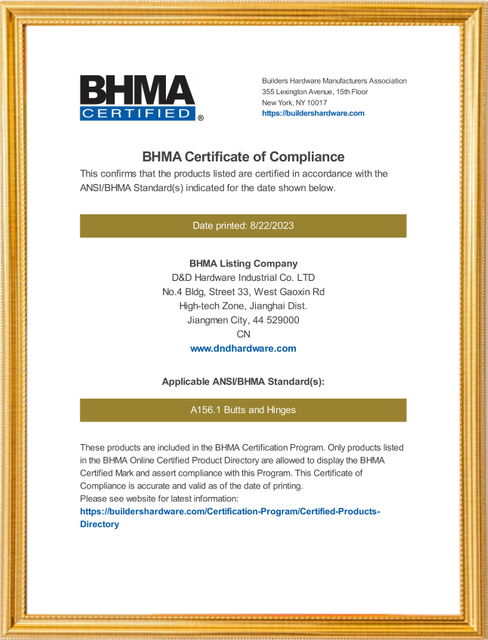

Verified Certifications

All certifications are independently verifiable through their respective issuing organizations:

UL Certified Hinge Sizing & Specification Reference

D&D Hardware UL Certified 21 Size Matrix (File No. R38013)

Materials

Finishes

Custom Sizes And Finishes Available Upon Request.

Ready to Get a Quotation?

Send us your project specifications. We'll respond with pricing, lead time, and UL certificate.

Where D&D UL Listed Hinges Are Specified

Commercial Office Buildings

Hospitals & Healthcare

Schools & Universities

Hotels & Hospitality

Government & Institutional

Industrial & Warehouse

Common Questions About Sourcing UL Listed Door Hinges

What is UL 10C certification and why does it matter for door hinges?

What is the difference between UL fire rating and ANSI/BHMA mechanical rating?

How do I verify if a manufacturer's UL listing is legitimate?

Should I choose 2 ball bearing or 4 ball bearing hinges?

What is D&D Hardware's minimum order quantity (MOQ)?

Does D&D Hardware provide technical documentation for project submittals?

Can D&D Hardware provide hinges with my company's branding?
