The Specifier's Decision Guide to ANSI / BHMA Door Hinges
Independently certified Grade 1 and Grade 2 commercial hinges, engineered for architects, specifiers, distributors and door manufacturers who need openings that pass inspection — and outlast the building schedule. Specify once. Certified for decades.

2.5M

Grade 1 cycles

1.5M

Grade 2 cycles

240h

Salt spray tested

3-HR

UL fire rating
Why ANSI/BHMA Certification Is Non-Negotiable on Commercial Projects
When a hardware schedule reaches procurement, manufacturer-claimed specifications are a liability. The American National Standards Institute (ANSI) and the Builders Hardware Manufacturers Association (BHMA) administer the only independently verified performance grading system for door hardware in North America — every certified hinge is tested at a BHMA-accredited laboratory, and certification is never self-reported.

Specifying hinges certified to both standards below protects contractors and building owners from the liability of premature hardware failure, simplifies architect approvals, and guarantees that published performance figures are reproducible in the field.


ANSI/BHMA A156.1

Butts & Hinges — Mechanical

The mechanical performance standard. Defines cycle durability, lateral and vertical wear, friction, load-bearing strength and dimensional tolerances for every performance grade.

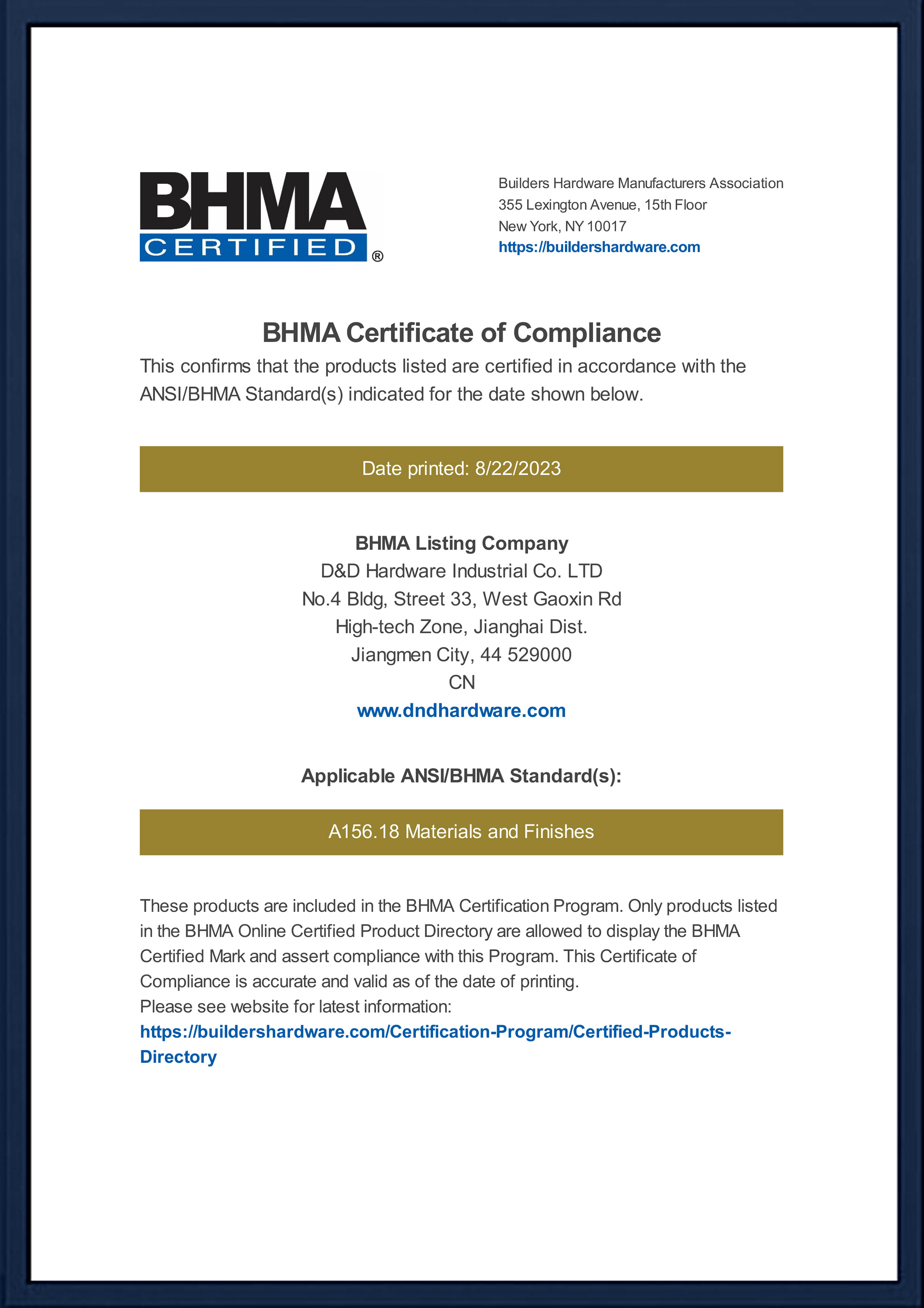

ANSI/BHMA A156.18

Materials & Finishes
The finish quality standard. Covers corrosion resistance through a 240-hour ASTM B117 salt spray test, plus adhesion and color consistency — critical for exterior and coastal projects.

ANSI/BHMA A156.18

BHMA is the only organization accredited by ANSI to develop performance standards for builders hardware. Standards are re-validated at least every five years, and certified factories undergo periodic audits — products that fail lose certification.
Grade 1 vs. Grade 2 vs. Grade 3
Which Opening Gets Which Hinge?
ANSI/BHMA A156.1 defines three grades, but only two belong on a commercial hardware schedule. The matrix below is built
for specification decisions: verified cycle counts, bearing construction and total-cost-of-ownership logic, side by side.

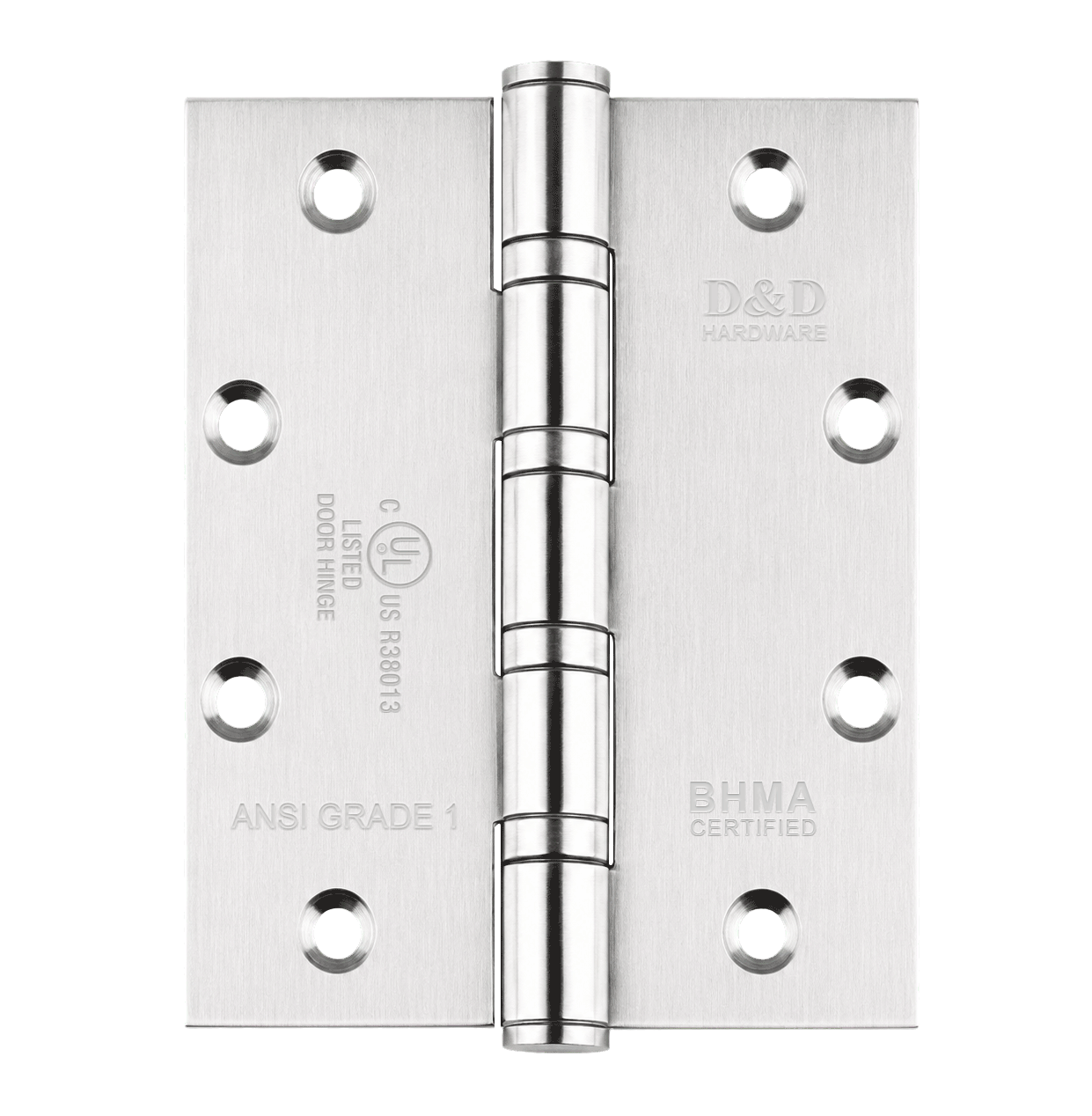

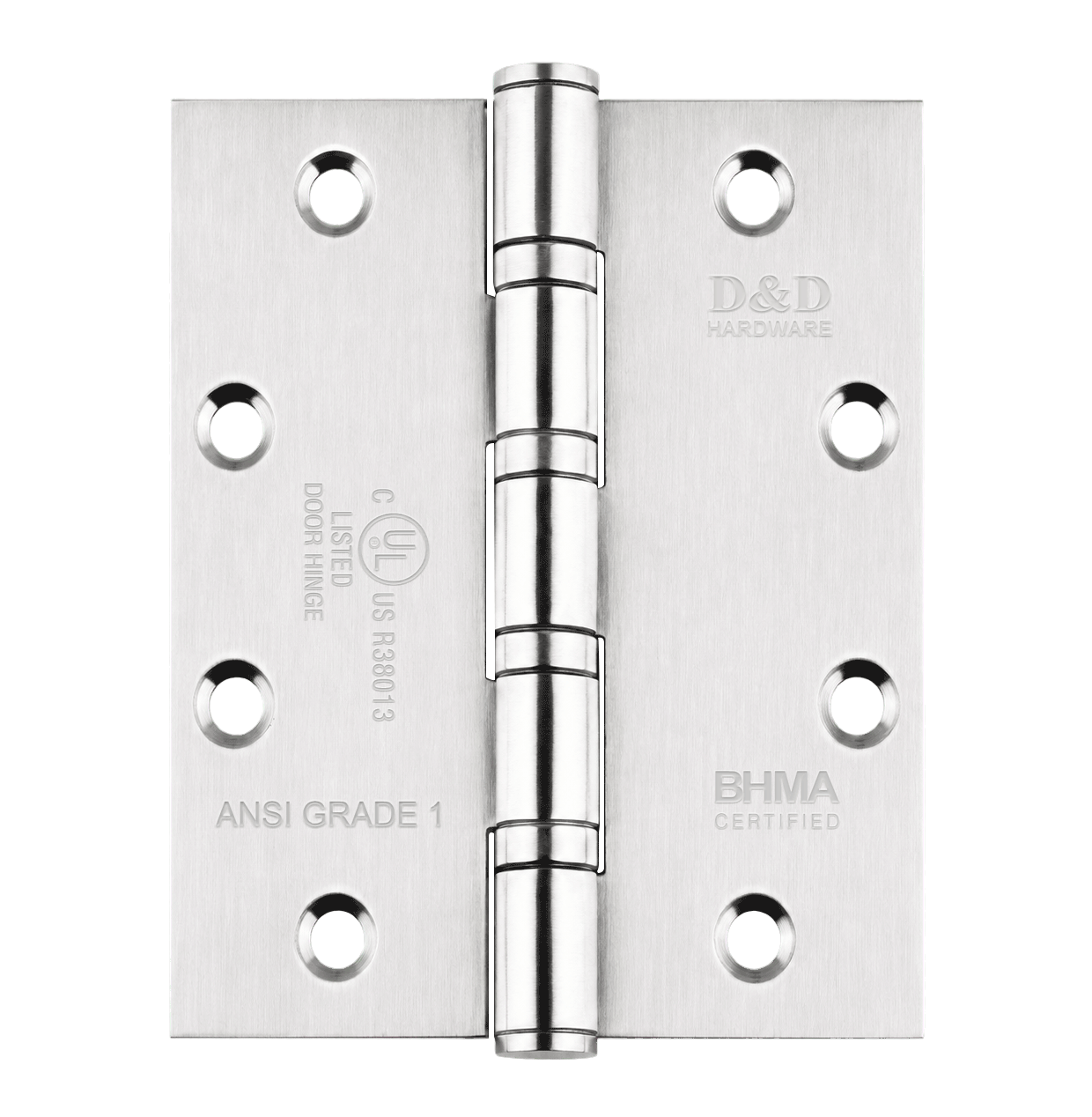

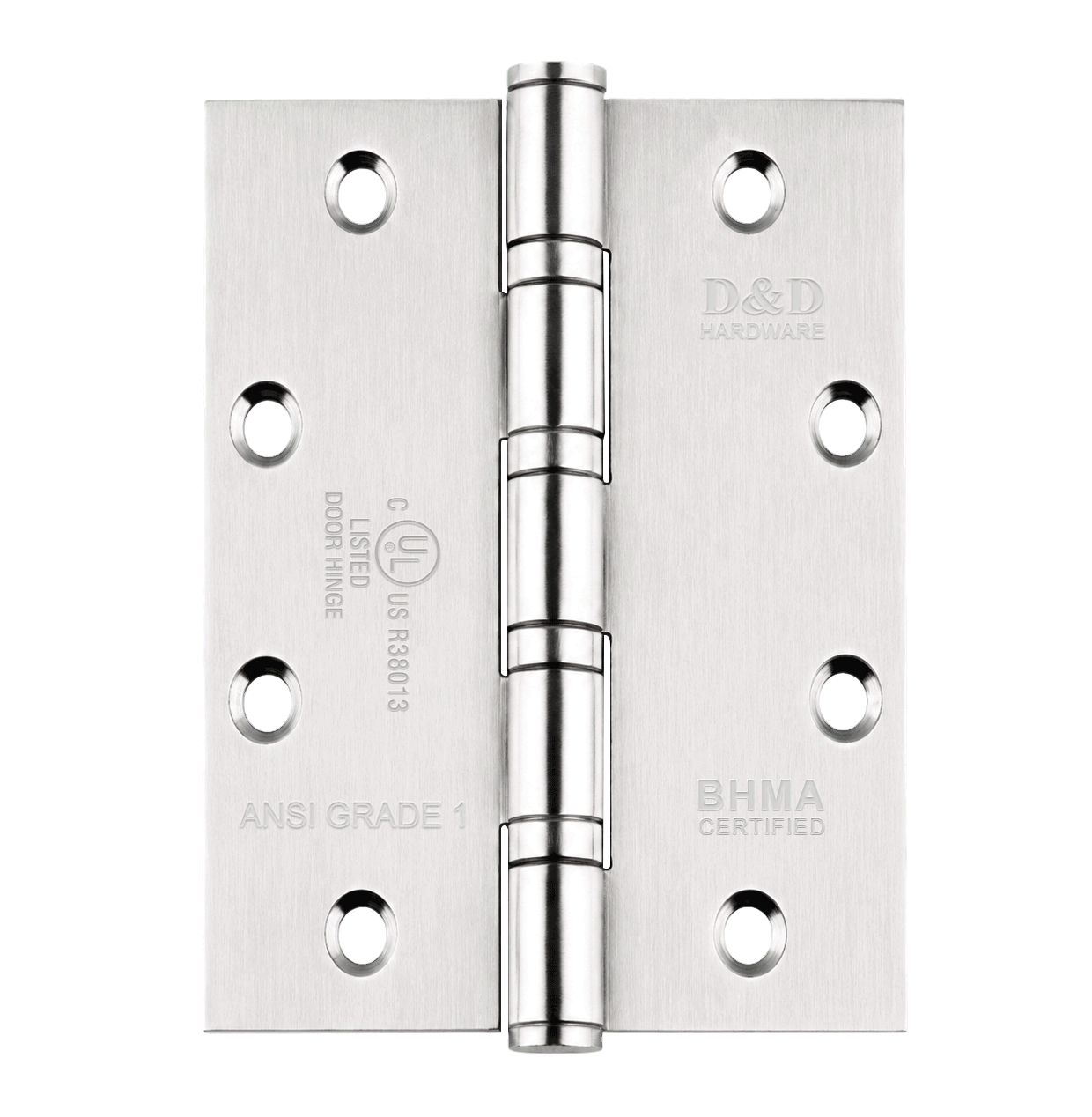

GRADE 1  -  D&D Certified
Specify for
Heavy Duty
The heavyweight specification. At 100 cycles per day, 2.5 million cycles represents over 68 years of tested mechanical life. Mandatory thinking for hospital corridors, school entrances, government facilities and heavy exterior doors.
0+
cycle test — the highest A156.1 classification
Bearing: Four Ball Bearing (4BB)
# Hospitals      # Schools      # Government      # Main entrances

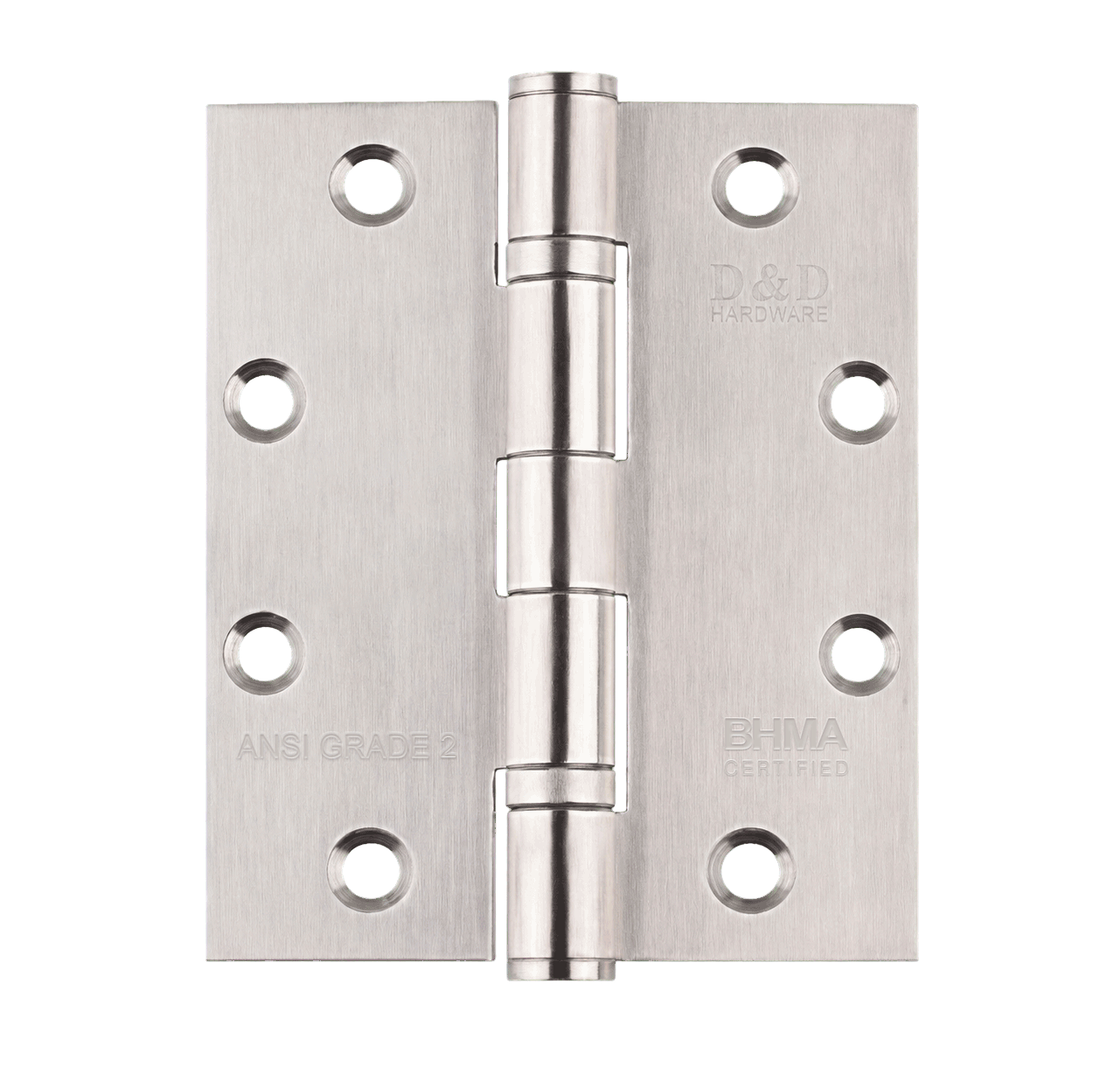

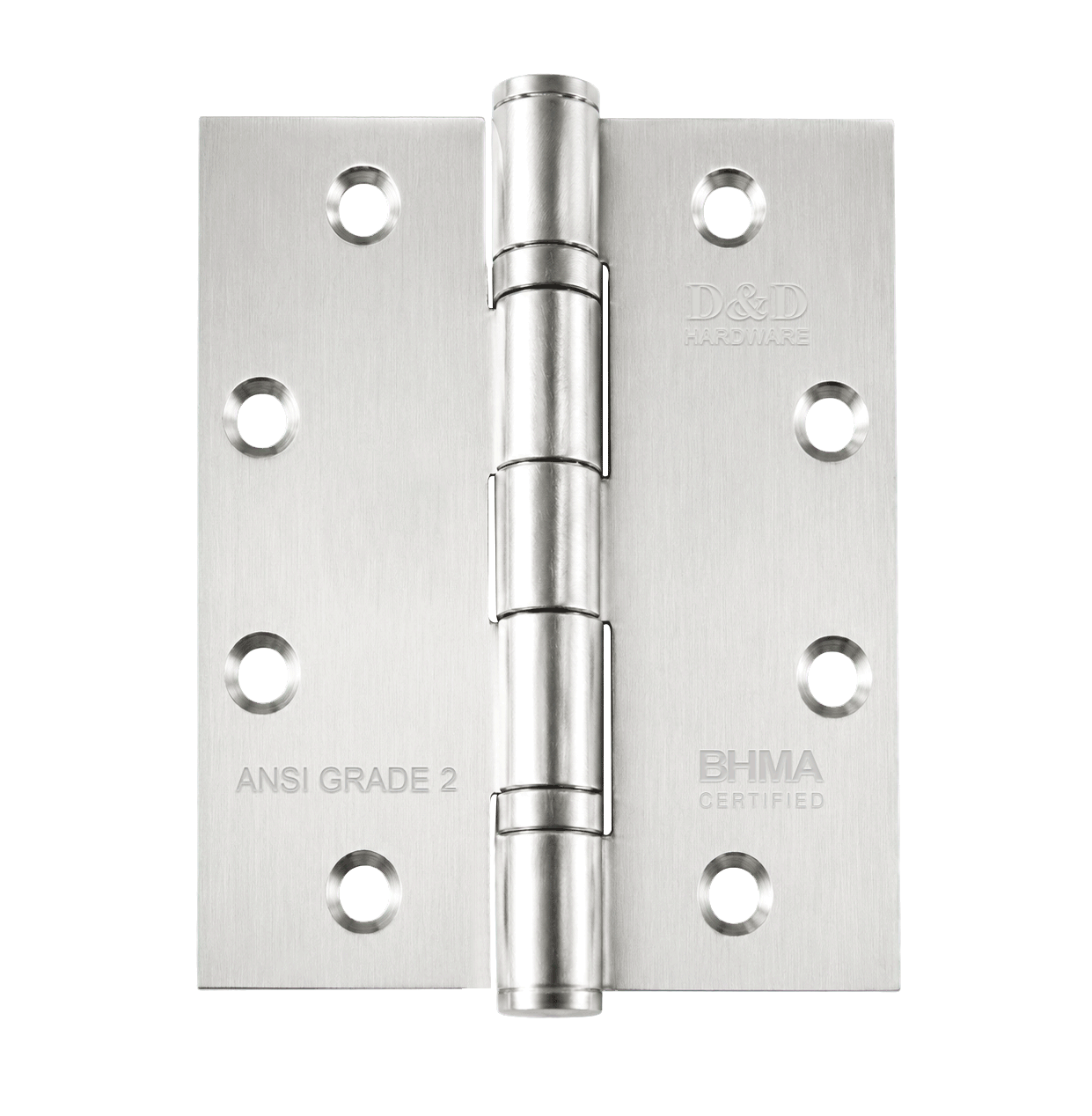

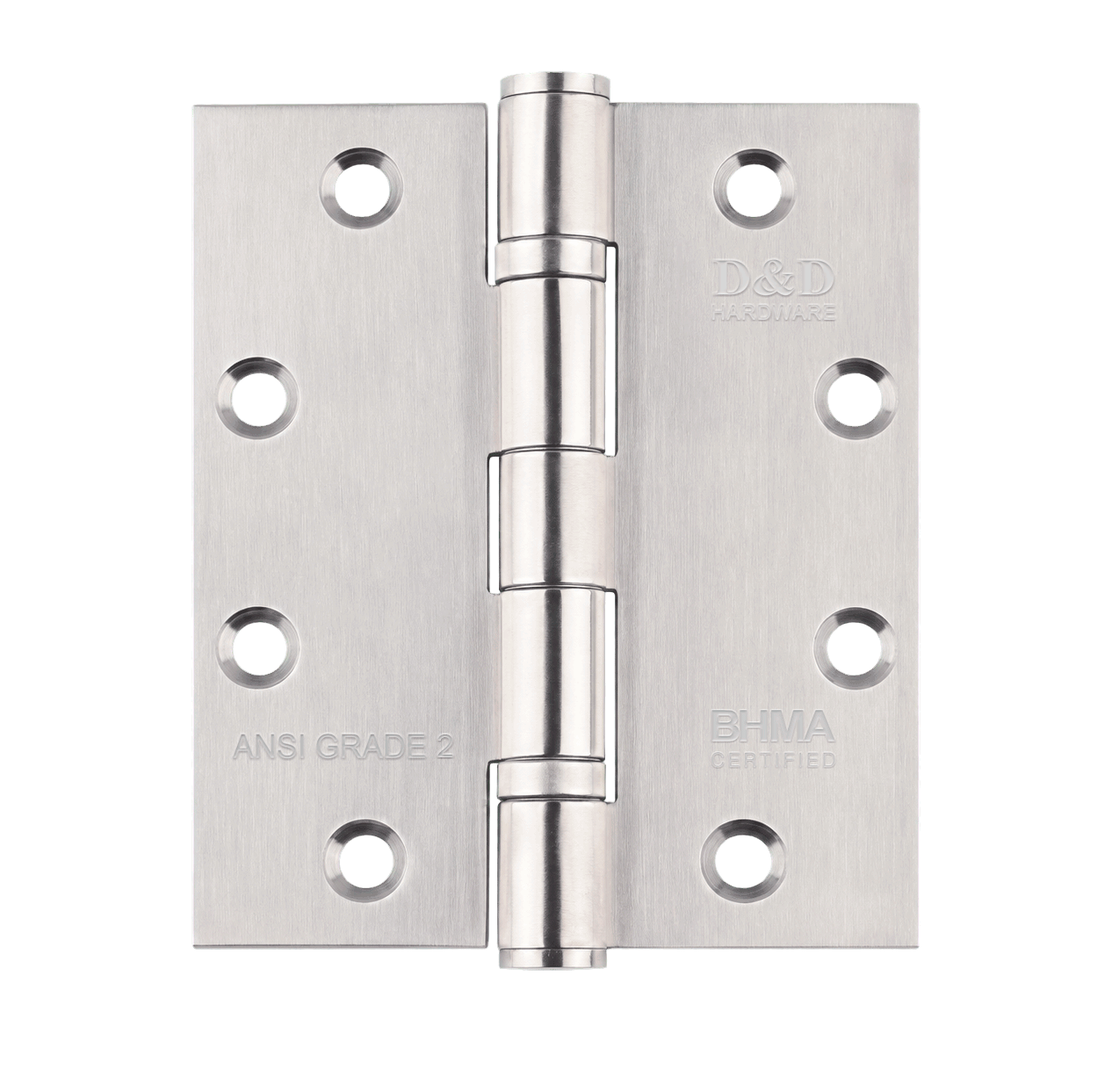

GRADE 2  -  D&D Certified
Specify for
Standard Commercial
The cost-balanced commercial workhorse. 1.5 million verified cycles cover office interiors, hotel guest rooms, retail back-of-house and multi-family common areas with a comfortable durability margin.

0+
cycle test — standard commercial classification
Bearing: Two Ball Bearing (2BB)
# Offices      # Hotels      # Retail      # Multi-family
GRADE 3
Residential Baseline — Reference Only
Tested to just 350,000 cycles — one-seventh of Grade 1. In commercial service, Grade 3 hardware leads to door sag, misalignment and premature replacement. D&D Hardware deliberately does not manufacture Grade 3: our range starts where commercial reliability starts.
0+
cycle test — light residential classification
Bearing: Plain / light-duty bearing
# Light residential only — not for commercial openings
Grade 1 vs. Grade 2 vs. Grade 3
Complete Comparison Guide
The ANSI/BHMA A156.1 standard defines three hinge grades with progressively lower performance thresholds. Understanding these differences is critical for specifiers, contractors, and facility managers making procurement decisions.
  • Specification Criterion Grade 1 (D&D Certified) Grade 2 (D&D Certified) Grade 3 (Reference)
    Cycle Test Requirement 2,500,000 cycles 1,500,000 cycles 350,000 cycles
    Bearing Construction Four ball bearing (4BB) Two ball bearing (2BB) Plain / light duty
    Hinge Types Heavy duty · Full mortise Full mortise · Standard weight Residential butt
    Typical Service Life @
    100 Cycles/Day    		 68+ years tested 41+ years tested <10 years tested
    Traffic Profile High-traffic / abuse-prone Moderate commercial traffic Light residential
    Total Cost of Ownership Lowest — no early replacement Low — right-sized spec High — repeat labor

Specification Rule Of Thumb

When traffic volume is uncertain, select up. The unit price difference between Grade 2 and Grade 1 is negligible against
the labor cost of one early hinge replacement — or one failed inspection that stalls a certificate of occupancy.
Inside the Test Lab: What Your Hinge Must Survive
A grade stamp is only as credible as the tests behind it. Every D&D ANSI/BHMA hinge earns its classification through the full A156.1
mechanical battery and A156.18 finish evaluation at accredited laboratories.
Cycle Durability - A156.1 · Cycle Test
─────────────────────────────────────
A weighted door is machine-cycled continuously until the grade threshold is reached — 2,500,000 swings for Grade 1. The hinge must finish with alignment, smooth operation and lateral/vertical wear inside tolerance.
Strength & Wear - A156.1 · Load / Friction
─────────────────────────────────────
Lateral wear, vertical wear, friction and strength tests verify the leaf, knuckle and pin geometry under load. Material gauge and fastener counts are prescribed per hinge height — nothing is left to interpretation.

Corrosion Resistance - A156.18 · ASTM B117
─────────────────────────────────────
A weighted door is machine-cycled continuously until the grade threshold is reached — 2,500,000 swings for Grade 1. The hinge must finish with alignment, smooth operation and lateral/vertical wear inside tolerance.

Security Option — NRP
For exterior out-swinging doors, specify Non-Removable Pins (NRP): a set screw tapped into the barrel
prevents pin extraction while the door is closed, securing the perimeter against forced entry.
Available across our Grade 1 and Grade 2 range.
Mechanical Durability,
Fire Safety Included
Fire compliance is non-negotiable in commercial architecture. The same D&D hinges you specify for ANSI/BHMA mechanical performance are also certified to UL/cUL UL 10C with a 3-hour fire rating (File No. R38013) — fully compatible with fire-rated assemblies under NFPA 80 and the International Building Code. One hinge, one submittal, dual compliance.


UL Fire Door Hinge Guide

 UL 10C        3-hour rating      21 certified sizes
───────────────────────────────────────────
Specify With Documentation, Not Assumptions
Send us your hardware schedule, door list or target specification. Our sales engineering team responds within 24 hours with certified options, test reports and factory-direct pricing.

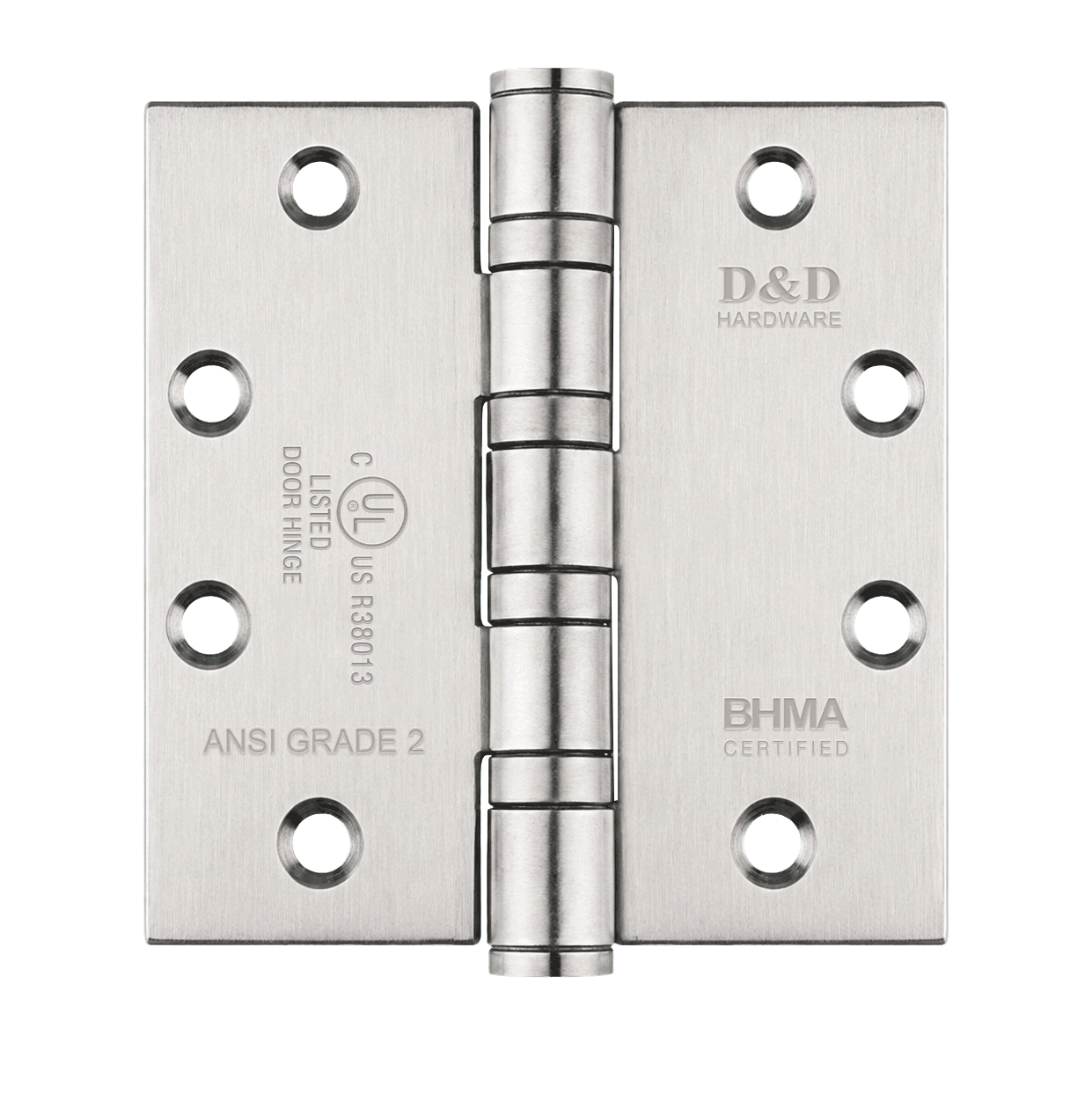

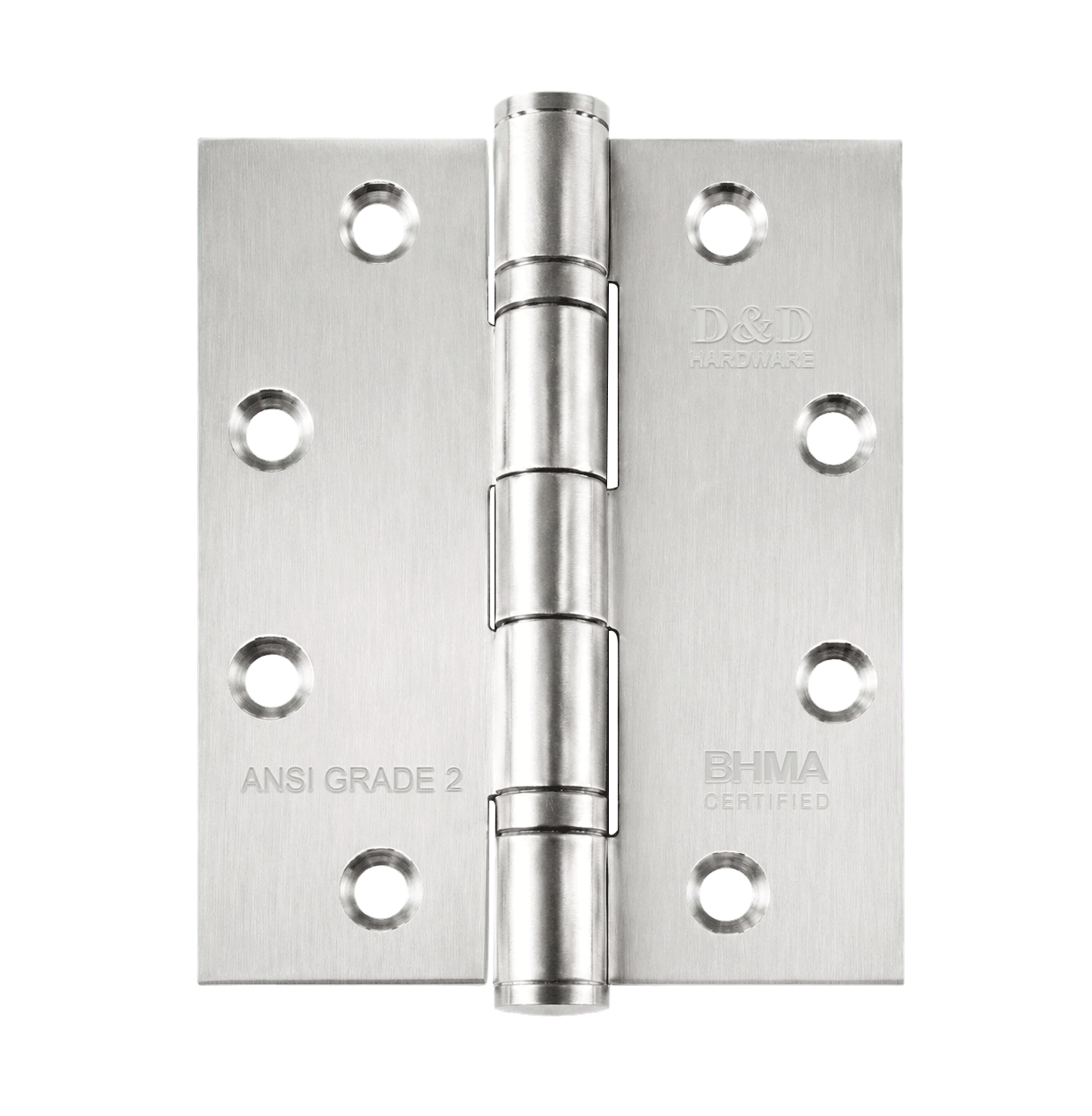

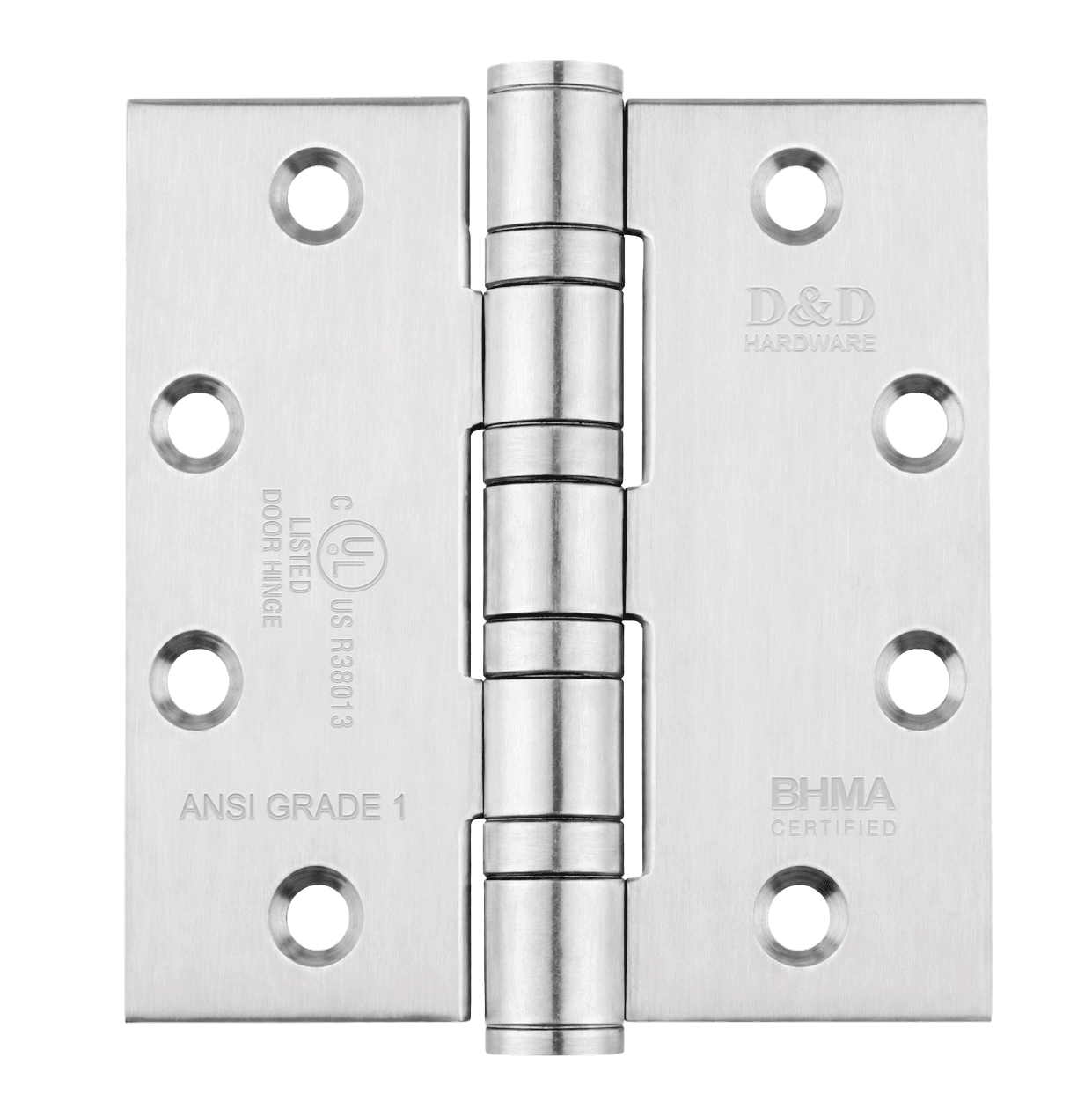

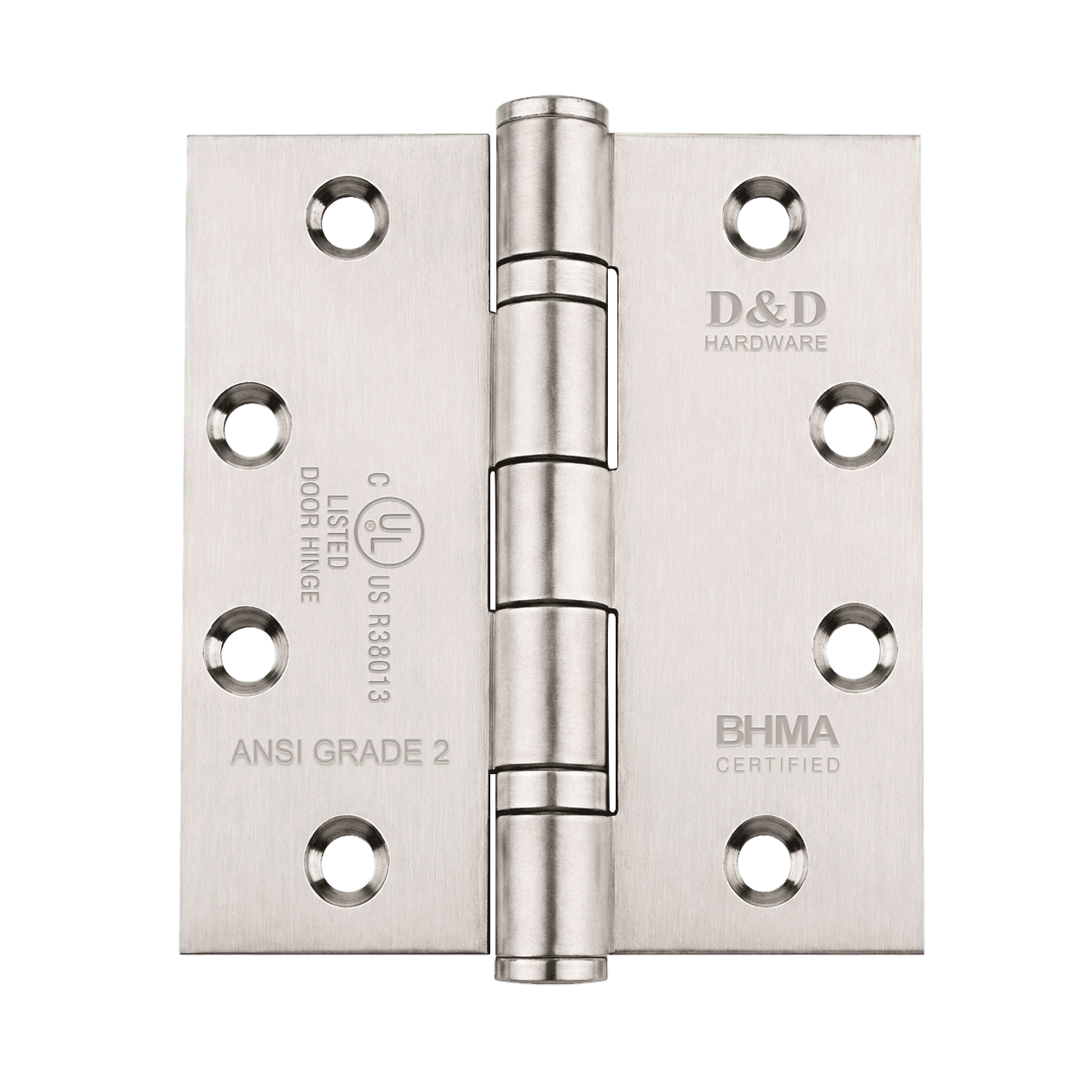

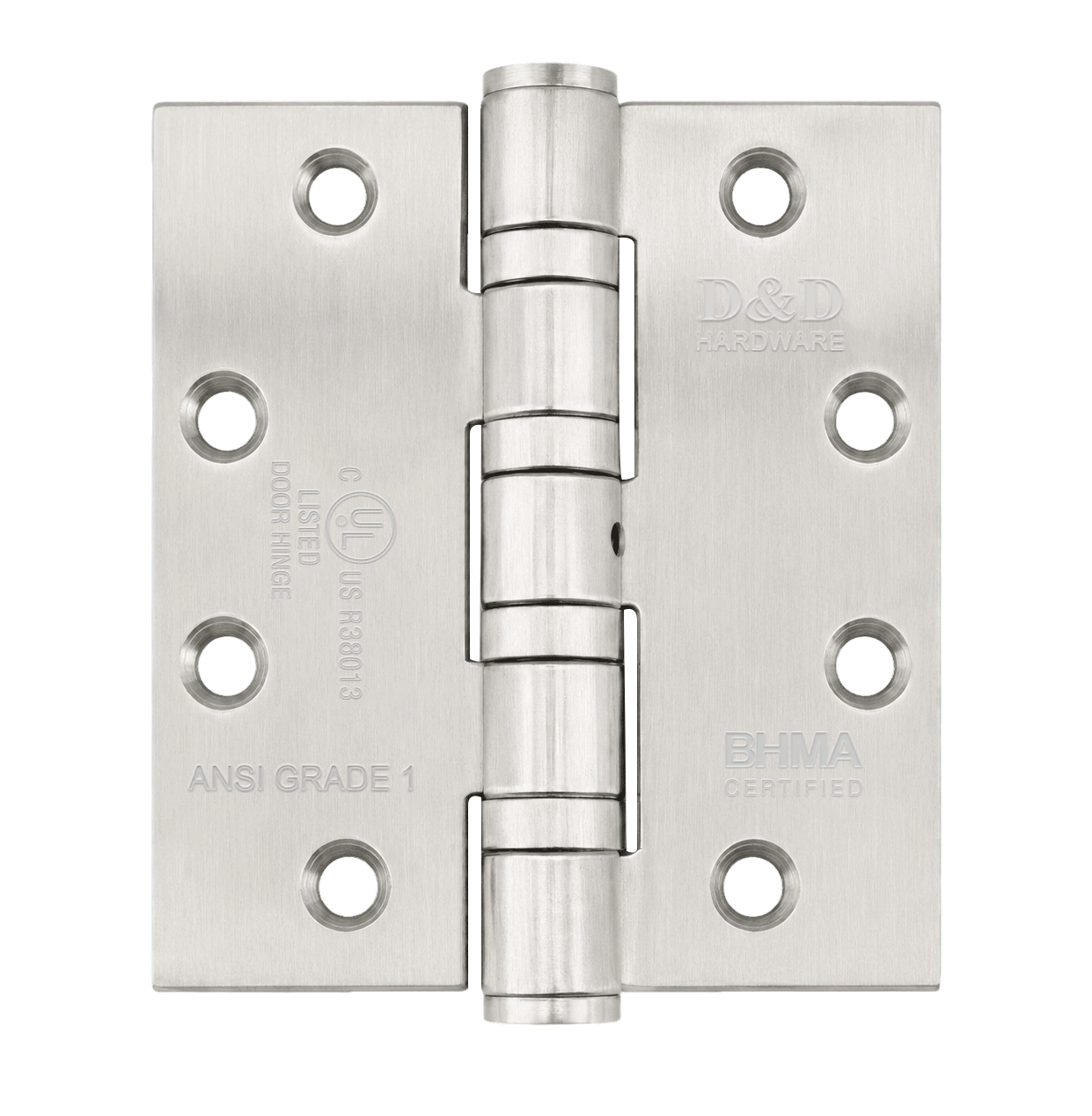

ANSI/BHMA Certified Hinge Product Range
D&D Hardware offers 11 ANSI/BHMA A156.1 certified sizes across Grade 1 (2,500,000 cycles) and Grade 2 (1,500,000 cycles).
Every hinge features friction bearings for smooth operation and is manufactured to precise A156.1 material and dimensional standards.
  • Picture
    Size (H × W × T) 4.5" × 4.0" × 4.6mm 4.5" × 4.5" × 4.6mm 5.0" × 4.0" × 4.8mm 5.0" × 4.5" × 4.8mm 5.0" × 5.0" × 4.8mm 5.0" × 3.5" × 3.7mm 5.0" × 4.0" × 3.7mm 5.0" × 4.5" × 3.7mm 5.0" × 5.0" × 3.7mm 4.5" × 4.0" × 3.4mm 4.5" × 4.5" × 3.4mm
    Bearing Type 4 Ball Bearing 4 Ball Bearing 4 Ball Bearing 4 Ball Bearing 4 Ball Bearing 2 Ball Bearing 2 Ball Bearing 2 Ball Bearing 2 Ball Bearing 2 Ball Bearing 2 Ball Bearing
    Weight Heavy Weight Heavy Weight Heavy Weight Heavy Weight Heavy Weight Standard Weight Standard Weight Standard Weight Standard Weight Standard Weight Standard Weight
    Certification ANSI / BHMA Grade 1 ANSI / BHMA Grade 1 ANSI / BHMA Grade 1 ANSI / BHMA Grade 1 ANSI / BHMA Grade 1 ANSI / BHMA Grade 2 ANSI / BHMA Grade 2 ANSI / BHMA Grade 2 ANSI / BHMA Grade 2 ANSI / BHMA Grade 2 ANSI / BHMA Grade 2
    UL 10C 3 Hours Fire Rated, R38013 3 Hours Fire Rated, R38013 3 Hours Fire Rated, R38013 3 Hours Fire Rated, R38013 3 Hours Fire Rated, R38013         3 Hours Fire Rated, R38013 3 Hours Fire Rated, R38013
Application Mapping
D&D ANSI/BHMA Certified Hinges are Trusted Across Industries Where Reliability, Safety, and Compliance are Non-negotiable.
  Find the right specification for your project type.

Healthcare Facilities

─────────────────────────────────────
Hospitals and medical centers demand the highest durability from door hardware. Constant 24/7 traffic from patients, staff, and equipment movement requires Grade 1 hinges rated for 2,500,000 cycles to ensure decades of reliable operation without maintenance interruptions.

Schools & Universities

─────────────────────────────────────
Educational facilities experience intense daily use from thousands of students and staff. Classroom doors, gymnasium entrances, and auditorium access points all benefit from Grade 1 heavy-duty hinges that withstand constant opening and closing throughout the school year.

Government & Municipal

─────────────────────────────────────
Government buildings and municipal facilities require hardware that meets stringent public safety standards and ADA accessibility requirements. Grade 1 ANSI/BHMA certified hinges are typically specified in project documents for all public-facing and high-traffic entry points.

Hotels & Hospitality

─────────────────────────────────────
Hotels and hospitality venues balance guest experience with operational durability. Main entrances, conference rooms, and back-of-house areas require Grade 1 hinges, while individual guest room doors and interior corridors may perform well with Grade 2 rated hardware.

Retail & Commercial

─────────────────────────────────────
Retail stores and commercial spaces vary widely in traffic intensity. High-volume storefront entrances benefit from Grade 1 heavy-duty hinges, while interior office doors, storage rooms, and low-traffic back areas are well served by cost-effective Grade 2 hardware.

Industrial & Warehouse

─────────────────────────────────────
Industrial facilities and warehouses subject door hardware to extreme conditions — heavy doors, forklift vibrations, dust, and temperature fluctuations. Grade 1 hinges with anti-friction bearings and heavy-gauge steel construction are essential for long-term reliability in these environments.
Why B2B Buyers Source ANSI/BHMA Hinges from D&D Hardware
As a dedicated ANSI/BHMA certified hinge manufacturer, D&D Hardware combines precision engineering with manufacturing scale to
deliver commercial door hinges that architects, specifiers, and contractors rely on — project after project.
Factory-Direct
Manufacturing
In-house production in Guangdong under one QC system. Distributors and door OEMs buy at manufacturer pricing with full traceability from raw stainless coil to packed carton.
Submittal-Ready
Documentation

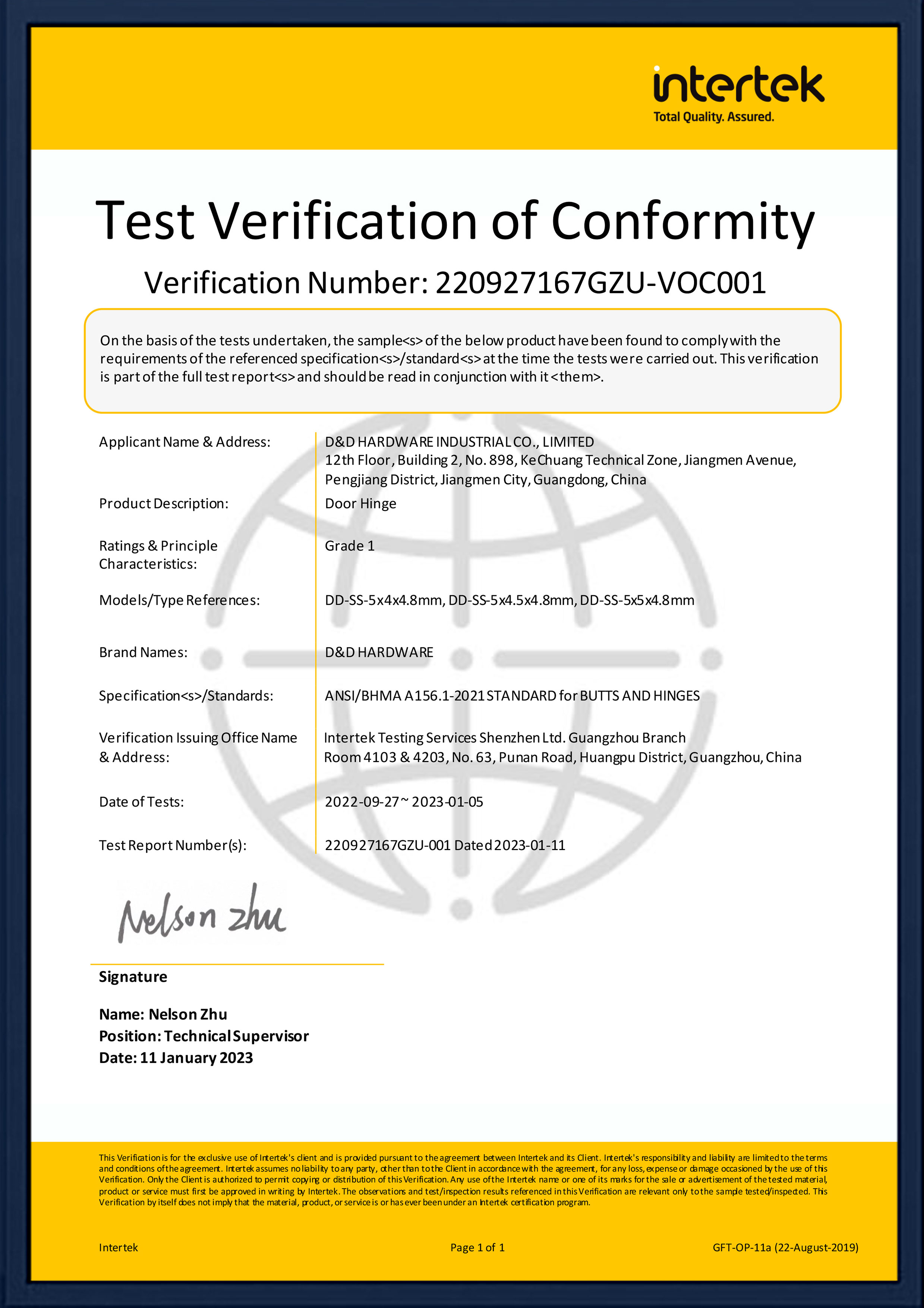

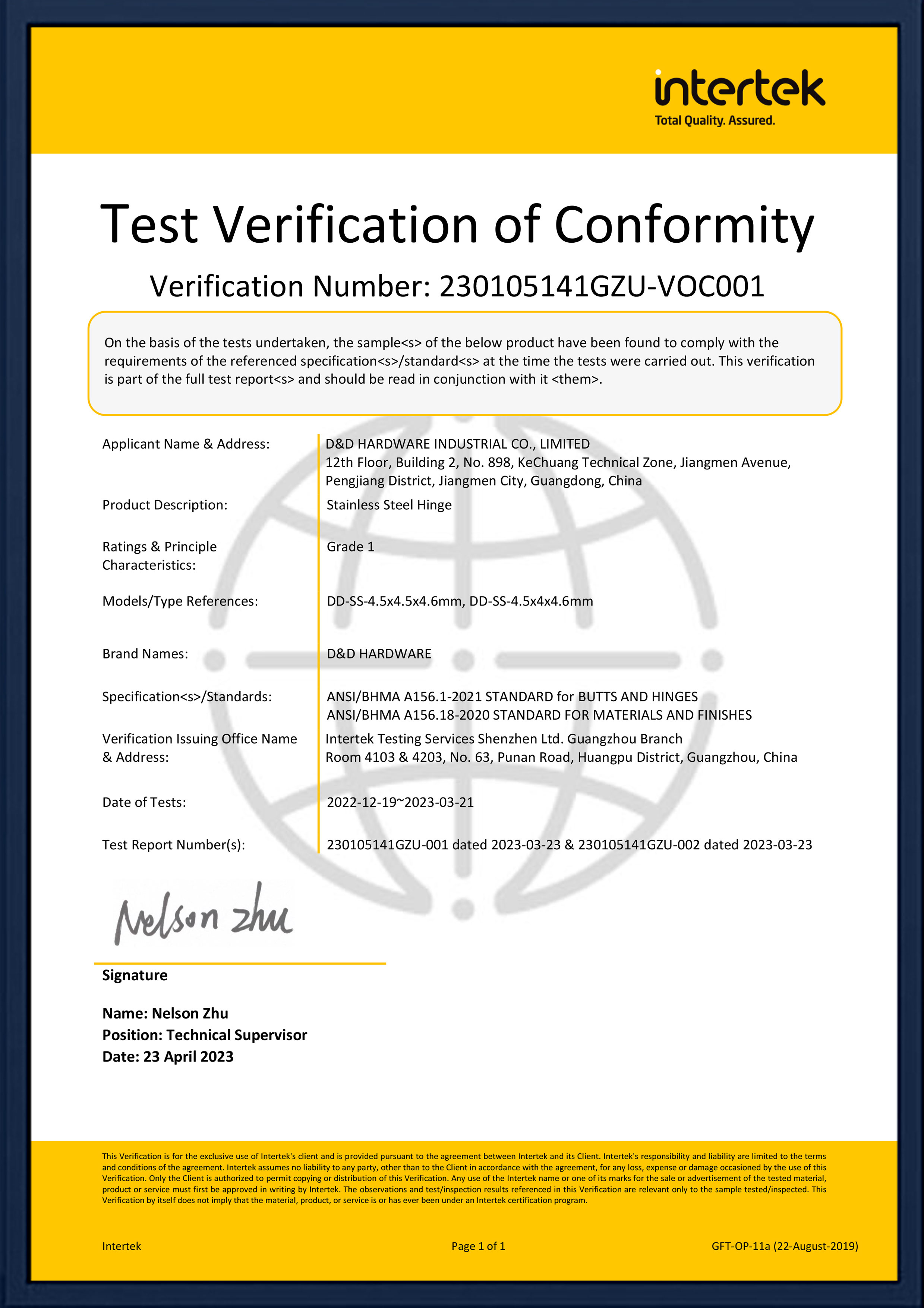

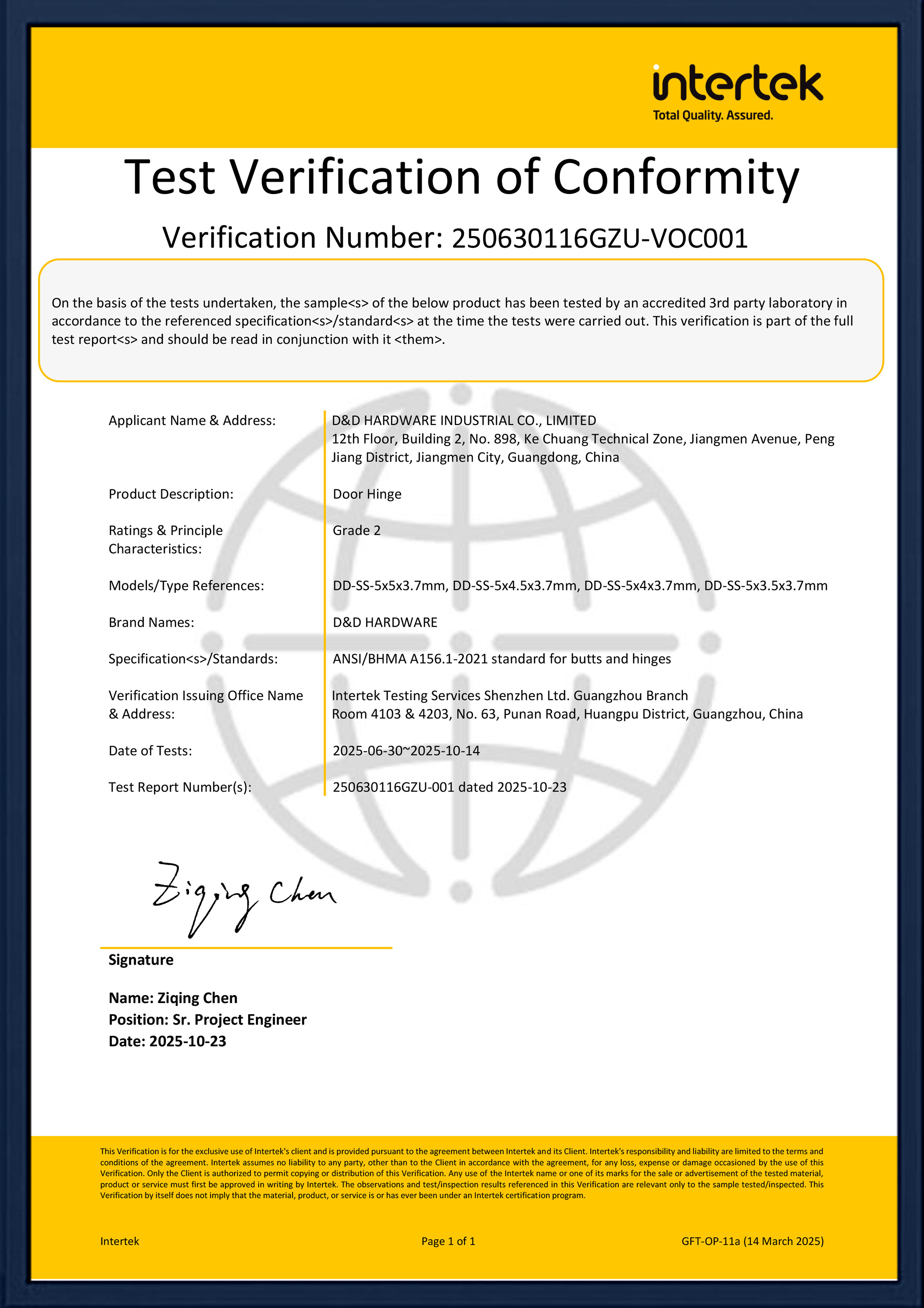

Independent lab test reports, certificates and fire-rating files delivered with your quotation — engineered to clear architect review and building inspection the first time.
Dual-Grade,
Dual-Standard Coverage
Grade 1 and Grade 2, certified to both A156.1 mechanical and A156.18 finish standards, in 11 certified sizes — one supplier covers the full commercial hardware schedule.
Reliable Lead
Times
Optimized supply chain and production scheduling enable 30–45 day delivery for standard orders. Emergency and rush order capabilities available for time-sensitive projects.
OEM, Private Label
& Custom Finishes
Satin or polished stainless, PVD, matte black, antique bronze and custom packaging. Stainless steel 201 / 304 / 316 options matched to project environment and budget.
Proven Global
Export Experience
Serving distributors, contractors, and specifiers across North America, Europe, the Middle East, and Asia-Pacific. We understand regional compliance requirements and logistics.
Questions Procurement Teams Actually Ask

  • How do I translate hinge cycle tests into expected service life?

    Divide the certified cycle count by realistic daily usage. A Grade 1 hinge (2,500,000 cycles) on a high-traffic entrance operating 200 times daily gives a theoretical mechanical life of over 34 years; at 100 cycles per day it exceeds 68 years. This calculation is the backbone of any total-cost-of-ownership comparison a facility manager will accept.

  • When should NRP (non-removable pin) hinges be specified?

    Specify NRP on any out-swinging exterior or security-sensitive door where the hinge barrel is exposed to the unsecured side. The set screw locks the pin in place while the door is closed, eliminating pin extraction as a forced-entry route. NRP is available across D&D's Grade 1 and Grade 2 configurations.

  • What is the practical difference between A156.1 and A156.18 certification?

    A156.1 certifies the mechanical performance of the hinge itself — cycles, wear, friction and strength. A156.18 certifies the finish: corrosion resistance via 240-hour ASTM B117 salt spray, adhesion and color consistency. A complete commercial submittal should reference both, which is why D&D certifies its range to the two standards together.

  • Why should a commercial project never specify Grade 3 hinges?

    Grade 3 is tested to only 350,000 cycles — designed for light residential service. Under commercial traffic it produces door sag, latch misalignment and cascading damage to closers and locks, forcing early replacement. The labor cost of one replacement typically erases any purchase saving several times over.

  • Are these hinges compatible with fire-rated door assemblies?

    Yes. D&D ANSI/BHMA hinges carry UL/cUL UL 10C certification with a 3-hour fire rating under File No. R38013, satisfying NFPA 80 and IBC requirements for fire door assemblies. See our dedicated UL fire door hinge guide for listing details and certified sizes.

  • Does D&D support OEM programs, custom finishes and bulk distributor pricing?

    Yes. As the factory, D&D supports private labeling, custom packaging, PVD and matte black finishes, stainless steel 201/304/316 material options and volume pricing structures for distributors, importers and door manufacturers. Custom sizes are available on request alongside the 11 certified standard sizes.

  • What is the MOQ for D&D ANSI/BHMA certified hinges?

    We offer flexible minimum order quantities to accommodate projects of all sizes. For first-time trial orders, there is no minimum order requirement — allowing you to evaluate our product quality before committing to larger volumes. Standard bulk orders typically start at 500 pairs per size/finish combination. Contact our sales team for specific MOQ details based on your project requirements.

  • Can I get samples before placing a bulk order?

    Yes. We provide free product samples so you can evaluate hinge quality, finish, and fit before placing a bulk order. Sample requests are typically processed within 3–5 business days. Simply reach out through our inquiry form or contact us directly, and our team will arrange sample shipment to your specified address.

  • Do you offer OEM or custom branding options?

    Yes. D&D Hardware offers comprehensive OEM/ODM services including custom logo stamping or laser marking on hinge leaves, custom packaging with your branding, and tailored finishes or sizes to meet specific project requirements. Our experienced engineering team works closely with clients to develop custom solutions. Minimum quantities for OEM orders typically start at 500 pairs per SKU.
Ready to Source ANSI/BHMA Certified Hinges?
Tell us about your project. Our specialists will provide a tailored quote with pricing, lead times,
and technical recommendations — all within 24 hours.
