What is a concealed door hinge and how is it different from a butt hinge?

A concealed door hinge — also called an invisible hinge or hidden hinge — is mortised into the door leaf and frame so it is completely invisible when the door is closed. Unlike a butt hinge, it has no exposed knuckle or removable pin. That means a seamless flush appearance, better tamper resistance, and precise 2D or 3D alignment adjustment after installation, which a traditional butt hinge cannot offer.

Welcome to D&D HARDWARE INDUSTRIAL Co., Ltd .

D&D, Leader in Commercial Door Hardware

Pls inquire to sales@danddhardware.com

：+86 139 2903 7292

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

PREMIUM CONCEALED

DOOR HINGE MANUFACTURER

D&D Hardware engineers UL 10C and EN1634 fire-rated concealed door hinges — 3D adjustable, 2D adjustable, hydraulic soft-close and standard invisible hinges — trusted by fire-rated metal door manufacturers, architects and distributors in 50+ countries.

UL Listed
Certification

EN1634 / UL10C
Fire Rated

Durability

200,000 Cycles

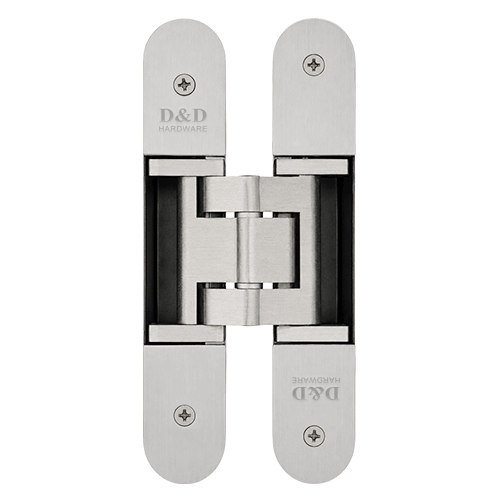

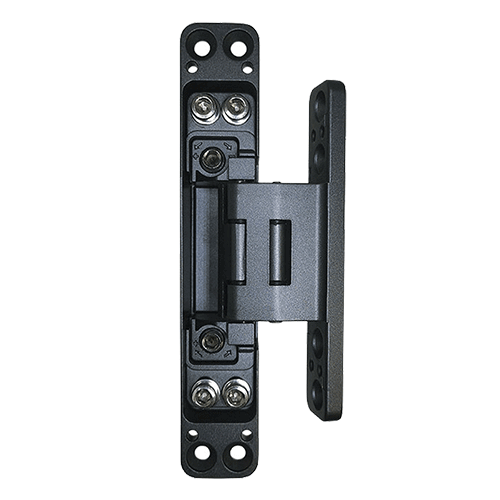

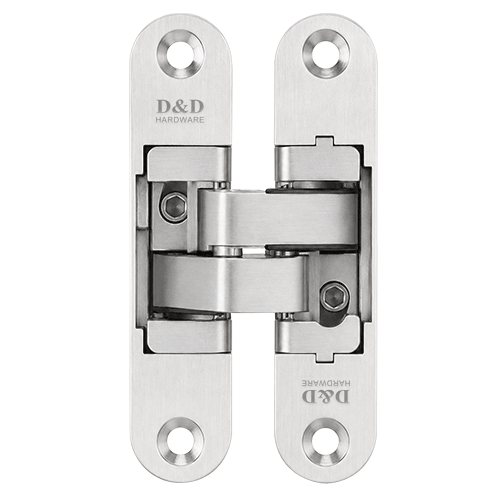

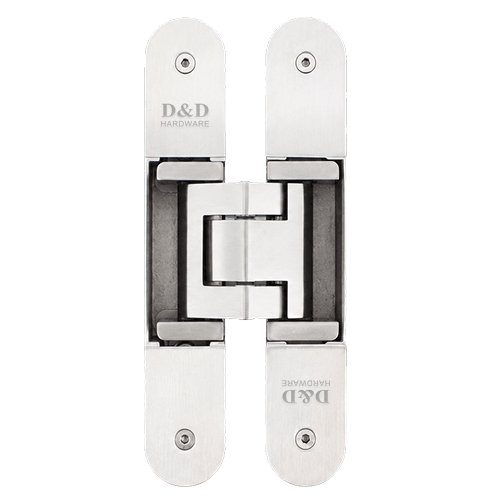

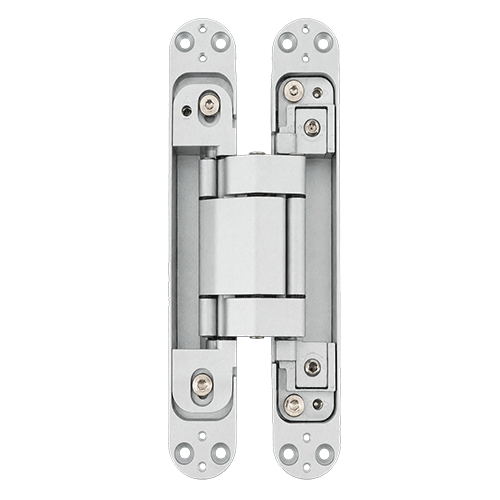

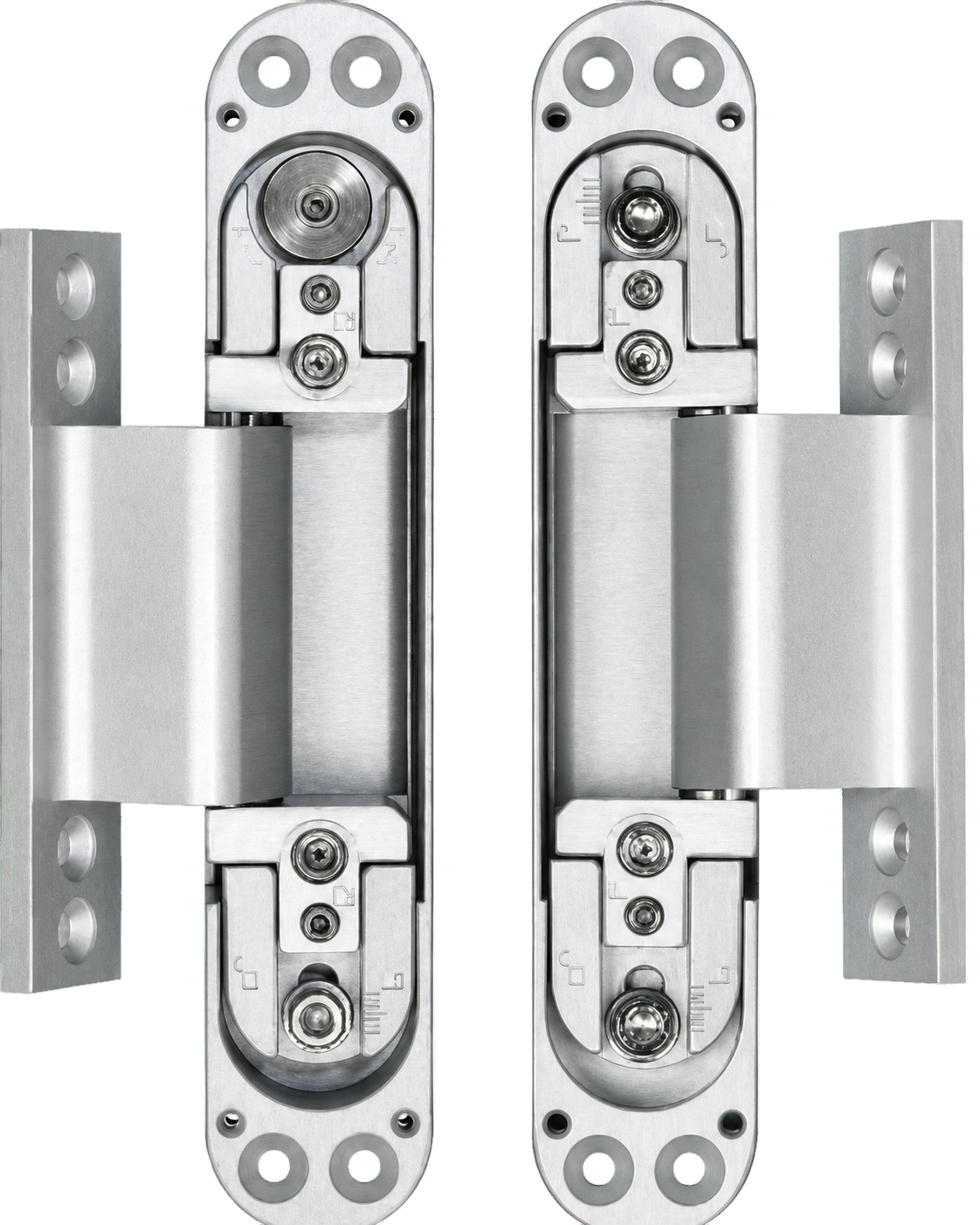

Model	DDCH009	DDCH012	DDCH018	DDCH022	DDCH027(H)
Material	zinc alloy	zinc alloy, aluminum alloy	stainless steel	zinc alloy, aluminum alloy	zinc alloy, aluminum
Size	30x110mm / 23x95mm	29x135x140mm	30x160mm / 32x240mm	26x150mm	30.5x140.5mm / 34.5x170.5mm / 36.5x220.5mm
2 Pcs Load Capacity	/	/	120kg / 200kg	55kg	60kg / 100kg / 150kg
3 Pcs Load Capacity	/	60kg	/	65kg	80kg / 120kg / 170kg
Opening Angle	180°	180°	180°	110°	180°

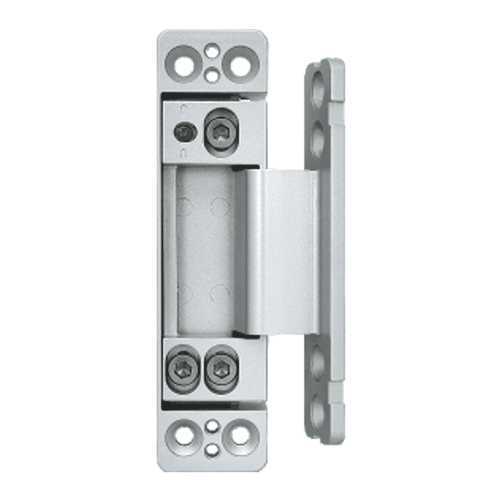

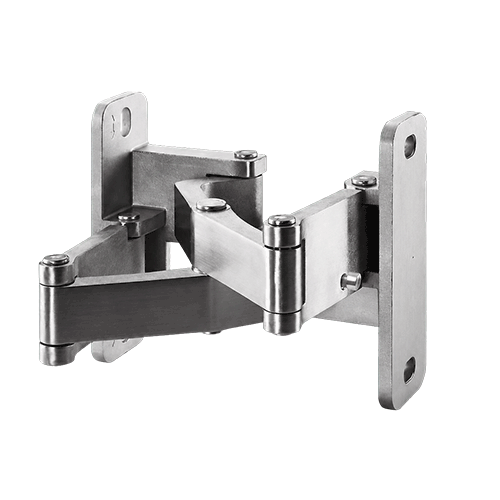

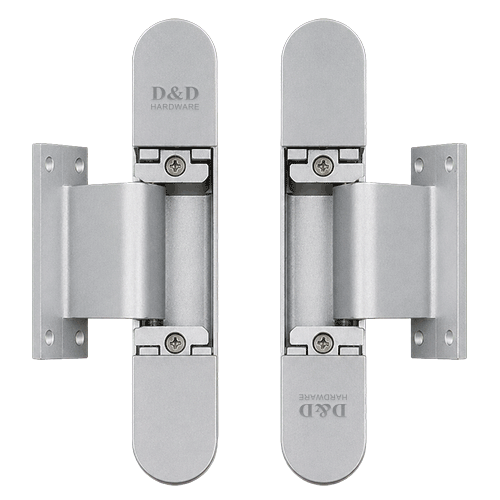

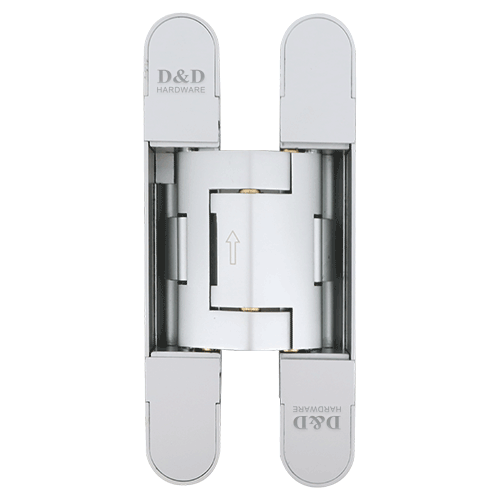

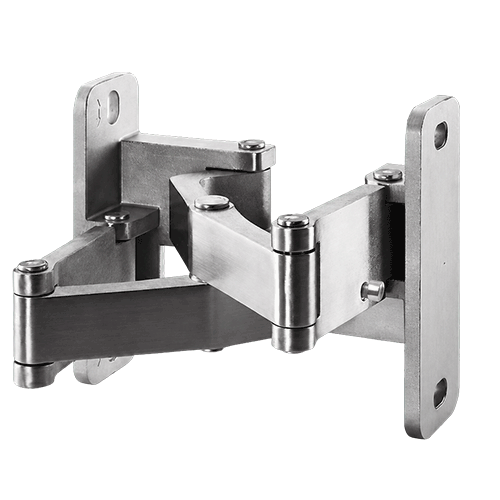

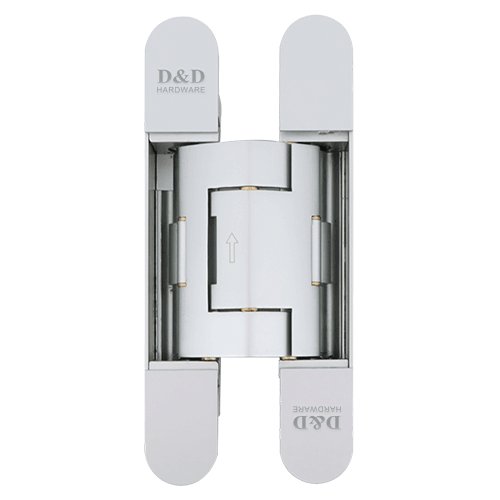

Model	DDCH017	DDCH019	DDCH020	DDCH021(1D)	DDCH023	DDCH024	DDCH025(H)	DDCH026(H)
Material	zinc alloy, aluminum	special steel	special steel	zinc alloy, aluminum alloy	zinc alloy, aluminum	zinc alloy, aluminum	zinc alloy, aluminum	zinc alloy, aluminum
Size	32x176mm	/	/	30X118mm	32x176mm	35x191mm	28x177.5mm	30x194.5mm
2 Pcs Load Capacity	80kg	150kg	200kg	60kg	80kg	120kg	50kg	60kg
Opening Angle	120°	160°-180°	160°-180°	110°	115°	115°	180°	180°
Application	fire door / smoking door	left / right hand well	left / right hand well	/	wooden door / swing door	invisible door / swing door	solid wood door	aluminium wood door

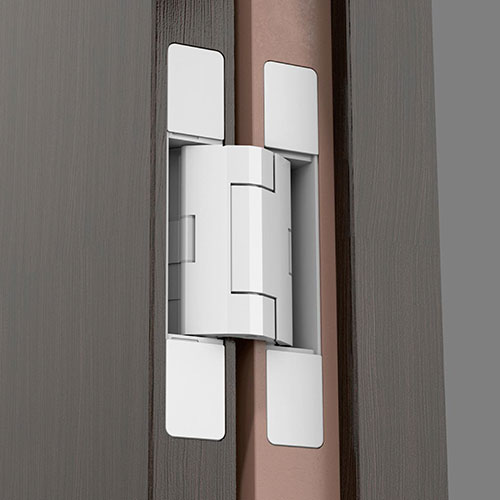

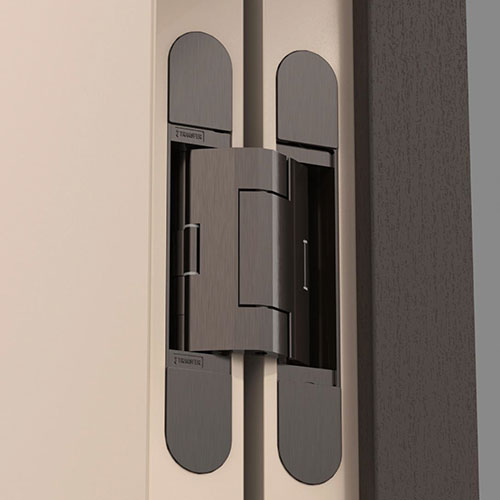

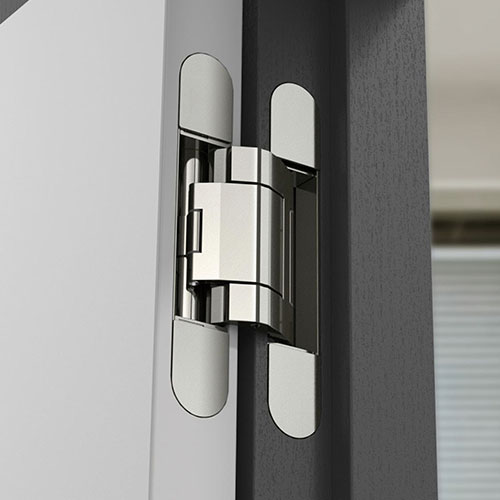

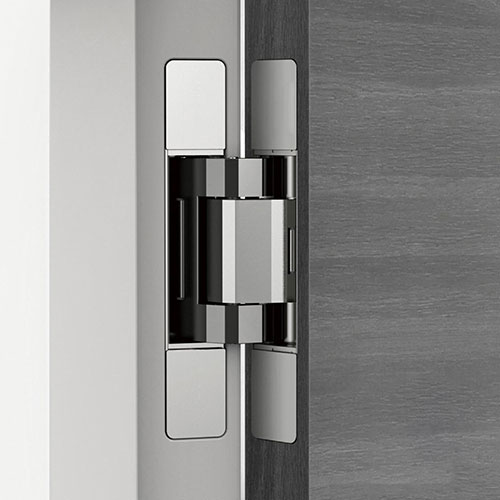

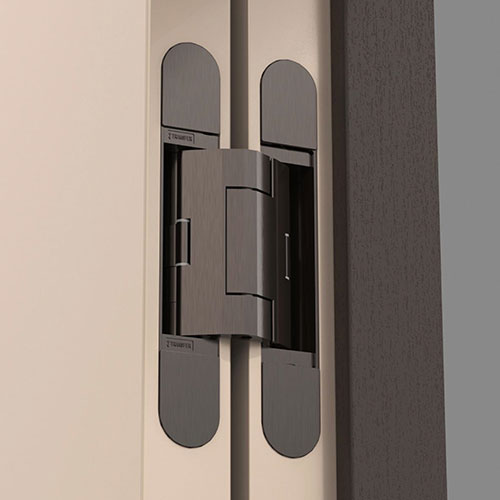

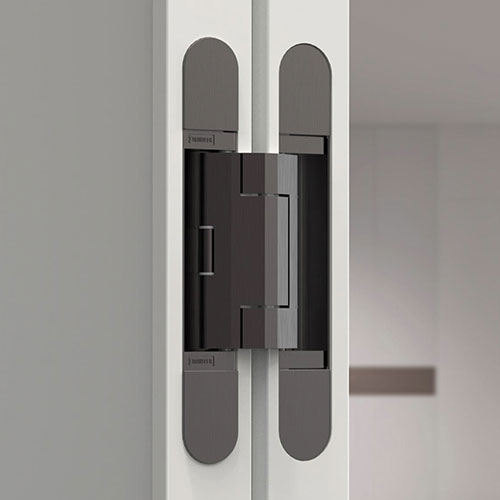

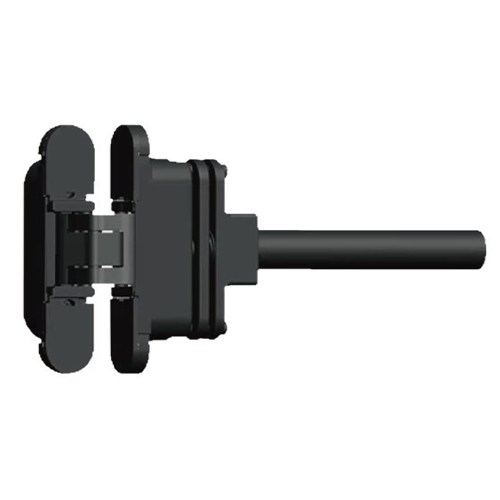

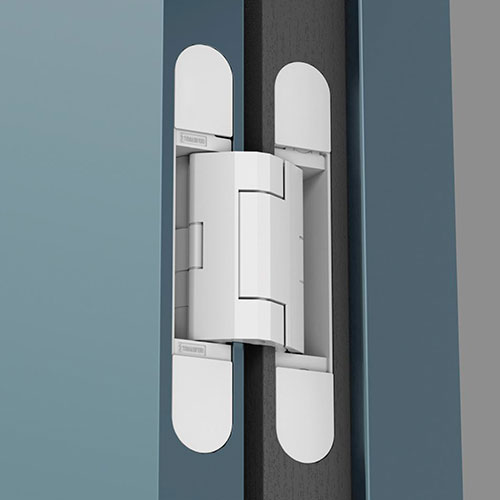

Model	DDCHSL01	DDCHSL02	DDCHSL03	DDCHSL04	DDCHSL05	DDCHSL06	DDCHSL06-3D	DDCH613
Main Material	zinc alloy	zinc alloy	zinc alloy	zinc alloy	zinc alloy	zinc alloy	zinc alloy	zinc alloy
Adjustable Range	2D	2D	2D	2D	2D	2D	3D	3D
2 Pcs Load Capacity	60kg	60kg	60kg	80kg	60kg	80kg	80kg	60kg
3 Pcs Load Capacity	100kg	100kg	100kg	120kg	100kg	120kg	120kg	/
Closing Torque	6N·m per hinge	6N·m per hinge	11N·m per hinge	6N·m per hinge	6N·m per hinge	11N·m per hinge	11N·m per hinge	/

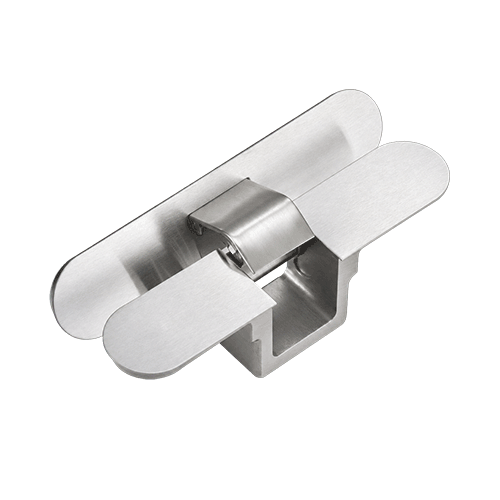

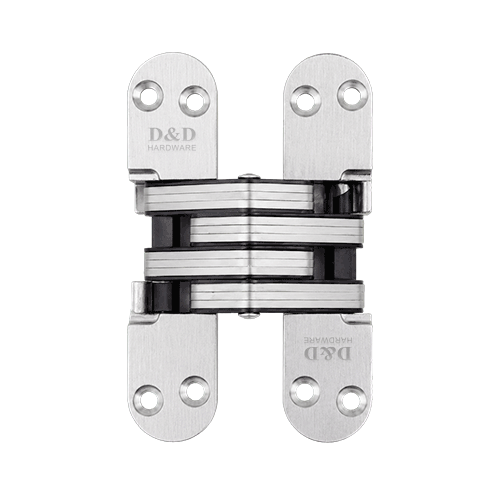

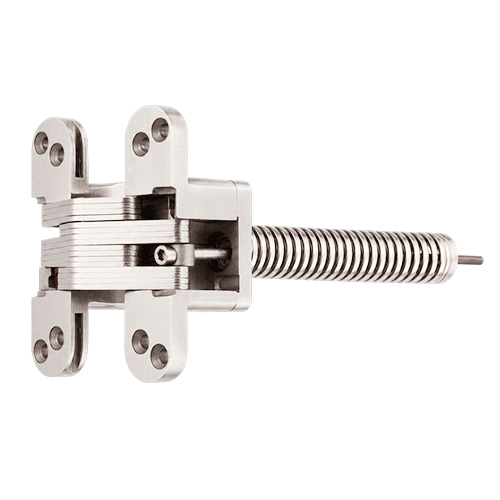

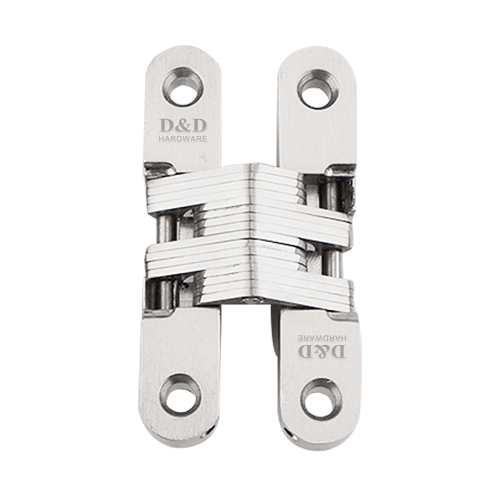

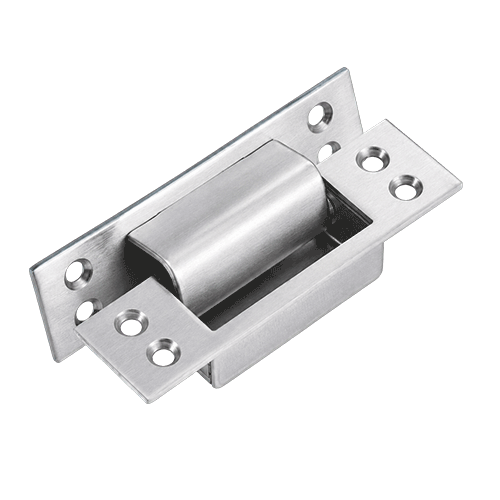

Model	DDCH007	DDCH007-B	DDCH010	DDCH013	DDCH014
Main Material	stainlesss steel / zinc alloy	zinc alloy	stainlesss steel / zinc alloy	stainlesss steel	stainlesss steel
Size	multiple	multiple	28x118mm	127x35x3mm	149x32x4mm
Opening Angle	180°	180°	180°	130°	130°
Application	timber door / metal door	timber door / metal door	wooden door / steel door	large solid wood cabinet door	cloaroom,storage room

Dual-certified at the Source

OEM / ODM Engineering

Factory Direct Pricing

Samples in 5–7 Days

Fire-rated Metal & Wooden Doors

Hotels & Hospitality

Commercial Complexes

Education & Institutions

Healthcare Facilities

High-end Residential

What is a concealed door hinge and how is it different from a butt hinge?

Are D&D concealed hinges certified for fire-rated doors?

What load capacities are available for the certified models?

What is a hydraulic concealed hinge and where should I use it?

Do you support OEM/ODM? What are the MOQ, sample and lead times?

How do I get a quotation?
