OEM 2D Hydraulic Positioning Concealed Hinge Manufacturer-DDCHSL06

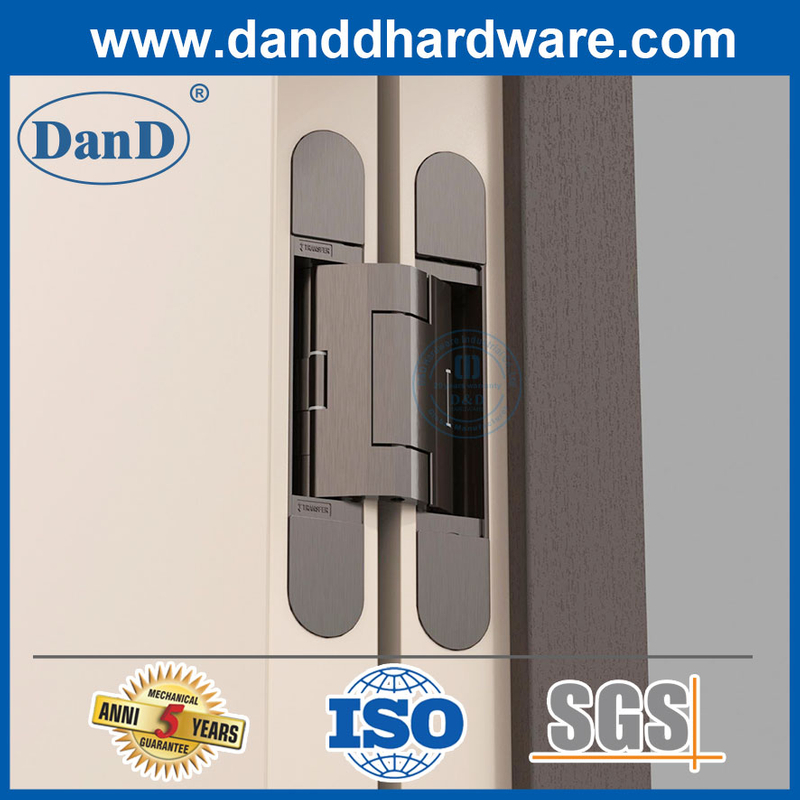

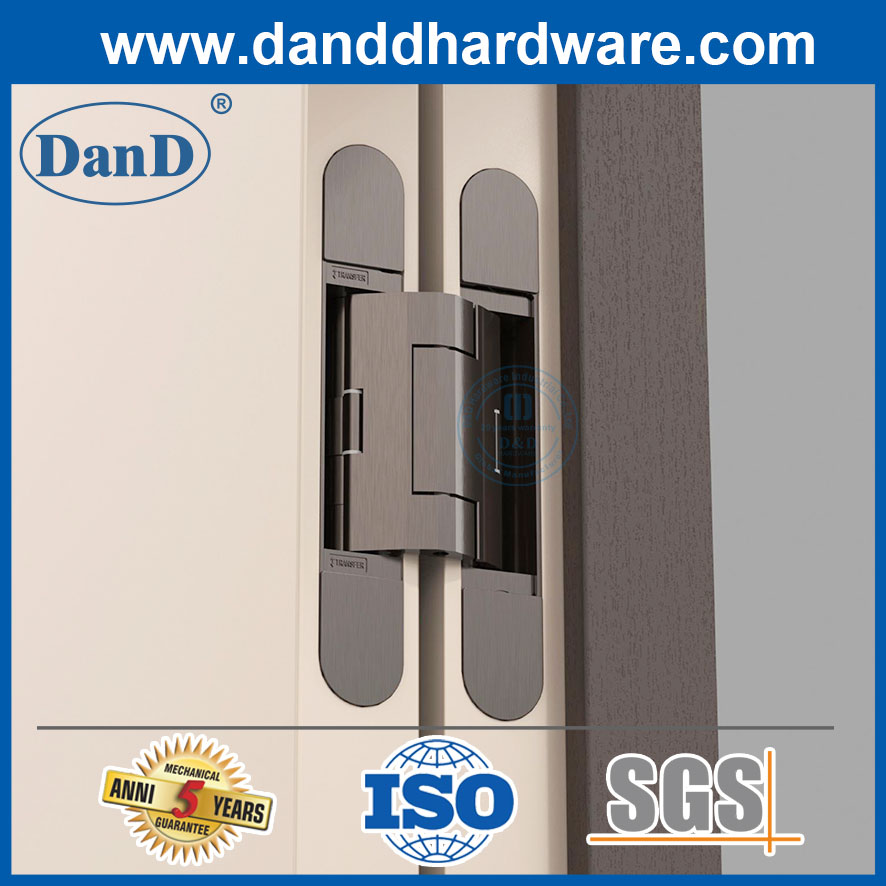

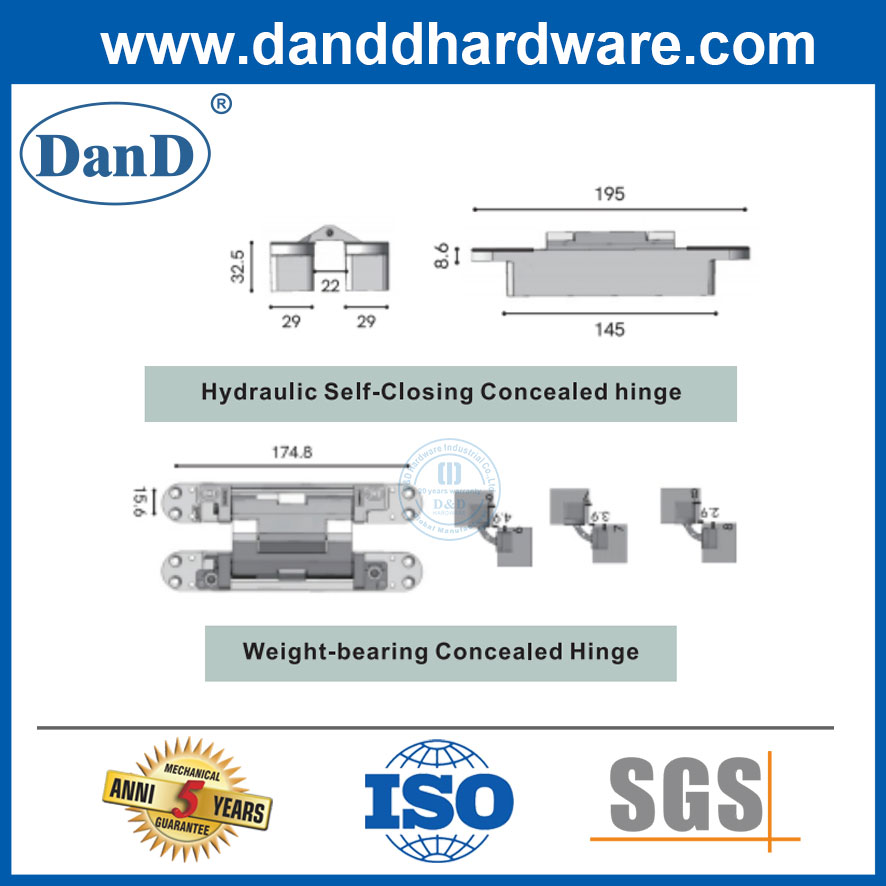

2D Hydraulic Positioning Concealed Hinge   DDCHSL05

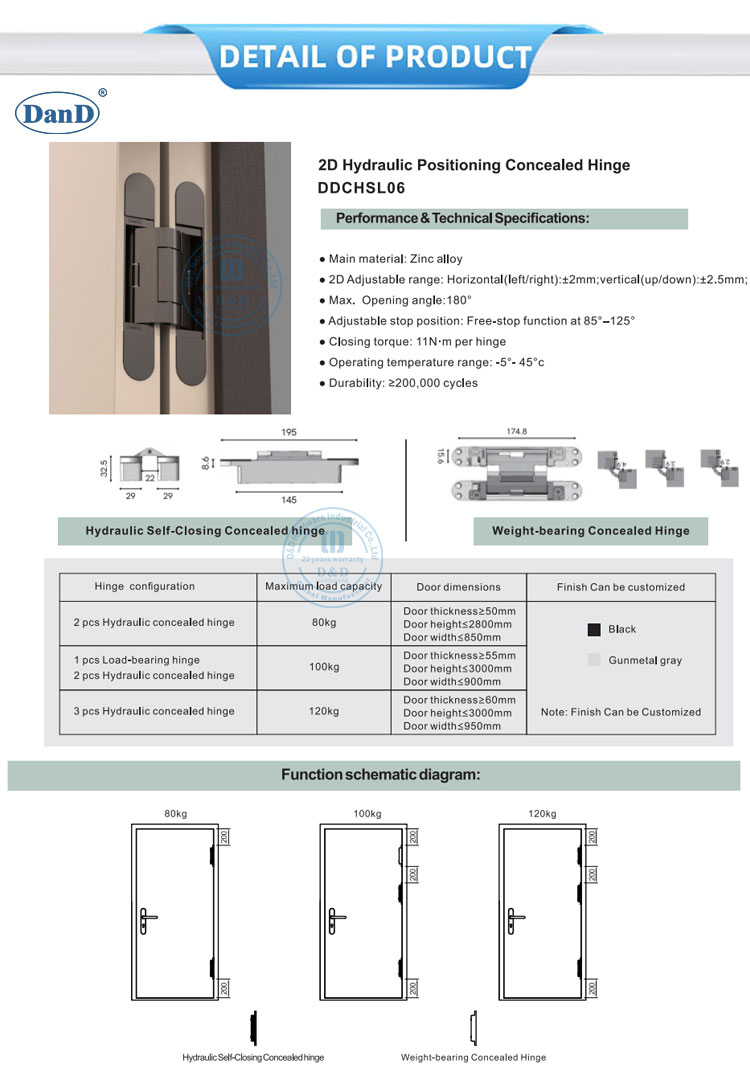

Performance & Technical Specifications:

·Main material: Zinc alloy

·2D Adjustable range:Horizontal(left/right):±2mm; vertical(up/down):±2.5mm;

·Max.Opening angle:180°

·Adjustable stop position:Free-stop function at 85°-125°

·Closing torque:11N-m per hinge

·Operating temperature range:-5°-45°c.

·Durability: ≥200,000 cycles

D&D Hardware specialized in door hardware products for Wooden Doors& Metal Doors &Glass Doors, such as Door Lock, Door Hinge, Door Handle, Door Closer, Panic Exit Hardware, Door stop, Door Bolt, Glass Hardware etc.

The Door Hardware that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.

More door hardware items include:

1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13

2.Concealed Hinge- BS EN1935, EN1634 Fire Rated & UL 10C R38013

3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901

4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated

5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE EN1125

6. Door Closer – CE BS EN 1154 & UL 10C R40717

7. Lock Cylinder-BS EN1303, EN1634 Fire Rated

8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
