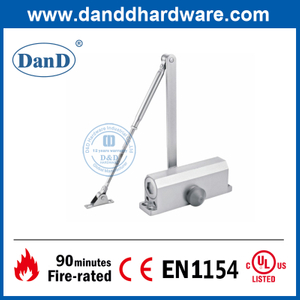

ANSI/BHMA A156.4 Door Closer

Views:0     Author:D and D Hardware     Publish Time: 2021-05-28      Origin:D and D Hardware

American National Standard Institute (ANSI) ANSI 156.4



Item

ANSI  156.4











Cycle-test

Without  Buffer Function

Grade   1-2,000,000

Grade   2-1,000,000

Grade   3-500,000

Buffer   Function

Grade   1-1,500,000

Grade   2-750,000

Grade   3-500,000

Fire Test

Pass UL 10 C 3  hours fire test

Anti-corrosion

Salt Spray Test  200 hours



1. SCOPE


1.1 This Standard contains requirements for door closers surface mounted, concealed in the door, overhead concealed and concealed in the floor. Also included are pivots for floor closers. Criteria for conformance include cycle, operational, closing force and finish tests. Optional tests which shall be specified separately are also included.


1.2 Tests in this Standard are performed under neutral air pressure laboratory conditions and between 60 and 85 degrees F. In actual usage results vary because of installation, maintenance, and environmental conditions. Actual closer performance is affected by fluctuating ambient conditions such as wind and pressure differentials, consult factory for recommendations.


1.3 Use on Fire Doors A door closer used on labeled fire door assemblies shall be listed or labeled by a nationally recognized independent testing laboratory, and be subject to a periodic in-plant follow-up service. Consult the authority having jurisdiction for the appropriate fire test requirements.

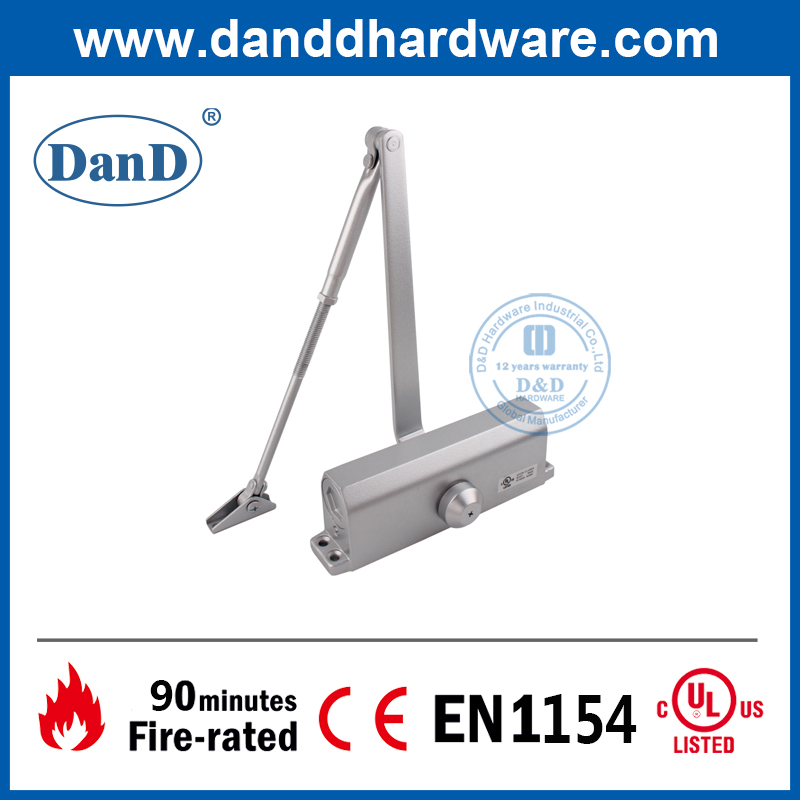

UL Door Closer-DDDC015UL Outdoor Door Closer-DDDC016UL Metal Door Closer-DDDC017UL Heavy Duty Screen Door Closer-DDDC018
