There are four basic actions to follow when selecting or scheduling hardware. These measures follow the logical sequence in the hardware could be installed:
Hang the door
Secure the door
Control the door
Protect the door
Just as the quality of the entire structure depends on the foundation it builds, a door and all its accessory hardware can only operate like the suspension device that has been selected and installed.
Traditional hinges would be the most frequent way of hanging a door. A hinge is a device consisting of two metal plates joined by a pin. The pin fits in the barrel, throughout the knuckles and functions to hold both leaves of the hinge together.

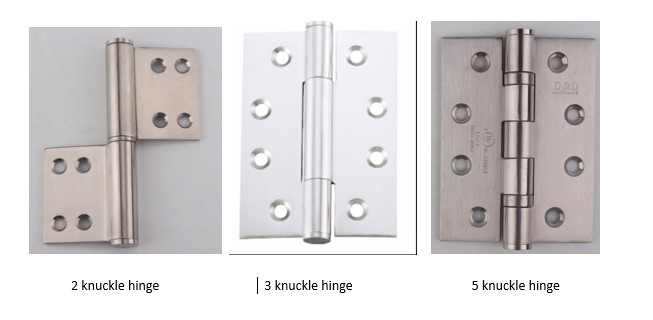

Traditional hinges are frequently known by the amount of knuckles which form the barrel of the hinge. Two, three and five knuckle designs.
Five knuckle hinges would be the most regularly used hinges on our industry.
Three knuckle hinges can be found in exactly the very same types and models as five knuckle designs.
Three knuckle hinges have a more streamlined appearance compared to five knuckle hinges.
Two knuckle hinges are usually utilized in programs where the door has been removed frequently. Loose joint of both knuckles allows the door to be raised without disassembling the hinges. Two knuckle hinges have to be passed properly when arranged.
Most hinges used on commercial applications are known as template hinges as they're intended to match a standardized cutout and holes blueprint for the attachments. Hinges are made to exact dimensions, thicknesses of holes and metal places. Initially meant for metal door and frame programs, now's template hinges can also be used on timber doors and frame.
When should you use three knuckle hinges instead of five knuckles?
Three knuckle hinges have a more pleasing appearance.Their usage is a matter of personal preference.
When can you utilize anti-friction hinge rather than plain bearing hinge?
The weight of the door, the kind of door control hardware, along with the anticipated frequency of use ascertain whether simple bearing hinges or anti-friction bearing hinges should be used.
Openings with door automatic operators must constantly have hinges using anti-friction bearings, since they allow the doorway to move freely.

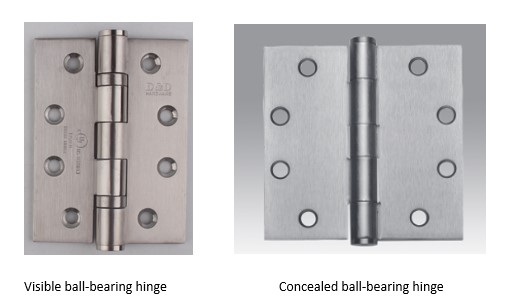

Plain bearing hinges are meant for low frequency usage. They're built without extra-friction bearings between or inside the hinge knuckles. Ball bearings are the most common type of anti-friction hinge bearing .One Type has observable ball-bearing cups secured into the knuckles of the hinge. In a different type, the ball bearings are hidden inside the hinge barrel.
Other anti-friction bearings may be made from oil-impregnated metals or certain low friction plastic materials. These may be used for vertical or lateral loads or both.
Five knuckle, regular weight anti-friction bearing hinges have two sets of bearings, whereas the heavy weight versions have four sets of bearings.
When buying several kinds of hinges, you should not just think about the upfront costs, but also the cost of long-term upkeep and replacement. D&D hardware, via rigorous security tests (like BS EN, CE, UL, ANSI and BHMA), is acceptable for public buildings, industrial sites, medical buildings, instructional websites, etc., and offers a comprehensive solution for folks to give security for clients. At precisely the exact same time, the suitable and dependable door configuration option brings clients the very best price/performance ratio, higher quality and long service life.
