The mortise lock is one of the components of the door lock. The mortise lock is generally used on the security door and is responsible for the security function of the door. There are many kinds of locks. There are three kinds of common mortise locks: European mortise locks, American mortice locks, and Australian mortise locks. European mortise locks are the most commonly used of the three locks.
Here are some common European mortise locks and their safety features.
1. The working principle of European mortise lock
2. Choose the mortise lock according to the type of the door
1. The working principle of European mortise lock
In a complete door lock, the lock cylinder controls the operation of the mortise lock, and the mortise lock is responsible for opening and locking the door, which plays an important role in safety. The square tongue and the oblique tongue play the most critical role.

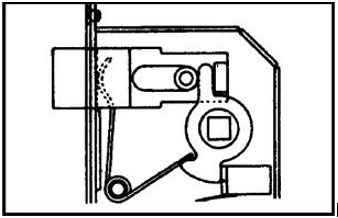

The latch - the protruding part of the mortise lock, the return spring compensates backwards, and buckles the door when closing the door to keep the door in the closed state.
The dead bolt- th mortise lock can be telescoped like a part of a bolt, and can be rotated by the hand wheel or key of the lock cylinder to shrink the square tongue.
The mortise lock can also be installed on the door in the door. When closing the door, the oblique tongue buckles the door. Just turn the hand wheel or the lock core,unscrew the bolt from the mortise lock, and the door can be locked to meet the security requirements.
2. Choose the mortise lock according to the type of the door
Through the operating principle of the known mortise lock, we can choose the mortise lock according to the type of the door.
The fire sash lock - latch can be manipulated by the handle on either side. The bolt that is thrown and retracted from one or both sides, depending on the type of cylinder installed. The cylinder action will operate both the bolt and the latch. The latch is 2 turns. The door handles are active at any time. The lock cylinder can drive the oblique tongue.
The fire mortise lock installed in the fire door must pass the test and be CE certified.
The D&D CE marked European mortise lock has successfully passed the test and meets all the requirements of the BS EN 12209/ DIN 18251. 11 classifications: 3X910G3BC20.
Latch (casting): SS304 (durability: X grade, 200,000 test cycles, the latch cycle load is 120N)
Dead bolt: SS304 (durability: X grade, 50,000 test cycles)
EN 1634: 260 minutes fire rated.
Suitable for installation in fire door, escape door, smoke door, wooden door, metal door, swing door, etc.

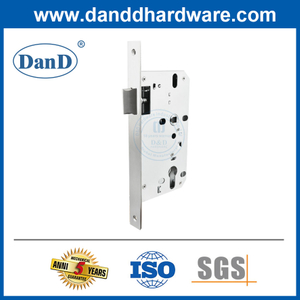

The fire rated latch lock- latch can always be operated with the handles on the left and right sides.
The D&D CE mark latch lock has been successfully tested all the requirements of the BS EN 12209/ DIN 18251. CE Classifications: 3X910G-B020.
Latch (casting): SS304 (durability: X grade, 200,000 test cycles, the latch cycle load is 120N)
EN 1634: 260 minutes fire rated.
Suitable for installation in fire doors, escape door, smoke door, wooden door, metal door,interior door, exterior door, etc.
The emergency escape lock - It can be turned-on quickly. The internal lever/emergency outlet unit simultaneously springs the latch bolts and bolts in one action, allowing quick escape for fire and safety reasons, for doors that require a single escape and high safety.
Suitable for installation in escape door, wooden door, metal door, fire door, smoke door, swing door, etc.
A deadbolt lock - thrown and retracted from one side or from both sides, depending on the type of cylinder installed. Fix the bolt 2 turns.
The D&D CE mark deadbolt lock has been successfully tested all the requirements of the BS EN 12209/ DIN 18251.CE Classifications: 3X910G3BC00.
Dead bolt: SS304 (durability: X grade, 50,000 test cycles)
EN 1634: 260 minutes fire rated.
Suitable for installation in wooden door, metal door, fire door, smoke door,exiterior door,interior door and so on.
The bathroom lock - door latch bolt is operated by the levers on the left and right sides. The Deadbolt is thrown by the internal thumb rotation. An indicator with an emergency release can be mounted outside the door and used with a thumbwheel.
The D&D CE mark bathroom lock has been successfully tested all the requirements of the BS EN 12209/ DIN 18251. CE Classifications: 3X910G-B020.
Dead bolt: SS304 (durability: X grade, 50,000 test cycles)
EN 1634: 260 minutes fire rated.
Suitable for installation in bathroom door,Toilet door,washroom door, etc.
The roller bolt Euro Dead Lock- Roller bolt can be automatic close on either side.
Deadbolt thrown and retracted from one or from both sides depending on the type of cylinder installed. Cylinder action will operate deadbolt. Deadbolt 2-turns. The less the ball protrudes, the lighter the door closing force.
Suitable for installation in interior door, outer door ,wood door, metal door, etc.
The night lock - latch bolt operated by lever handle or key. Suitable for doors where single action of escape is required. The door will be relocked automatically when it closes and the security will be ensured.
The D&D CE mark night latch lock has been successfully tested all the requirements of the BS EN 12209/ DIN 18251. CE Classifications: 3X910G3BB20.
Latch (casting): SS304 (durability: X grade, 200,000 test cycles, the latch cycle load is 120N)
EN 1634: 260 minutes fire rated.
Suitable for installation in wooden and glass paneled doors and common entrance doors in family homes.

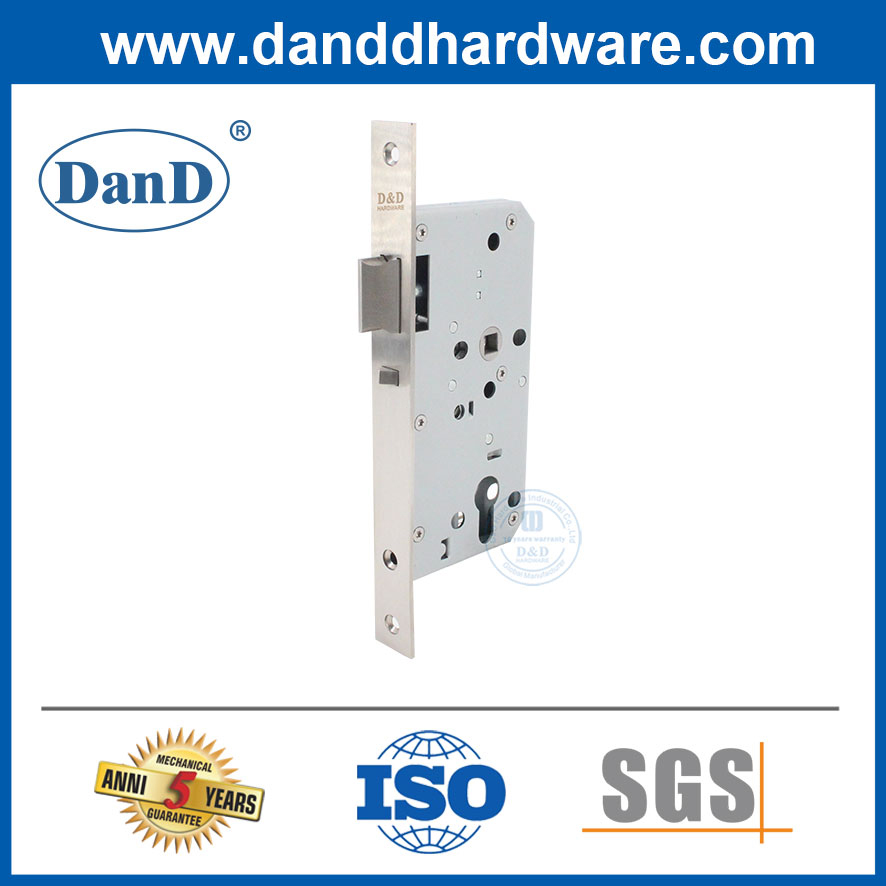

Classroom door lock - a half lock cylinder is provided outside the door, and the lock core cannot drive the oblique tongue. latch bolt retracted by lever from either side unless outside is locked by key. Unlocked from outside by key. inside lever always free for immediate exit.
Usually installed on the classroom door.
The mortise locks are a special type of locks used in the commercialsecurity industry that require heavy-duty and high-frequency lockapplications. One of the advantages of the European mortise lock is that the mortise lock is produced, the lock cylinder and the drive member (door handle) are produced by different manufacturers, but the specifications are uniform and match each other to produce different functions, which is also the European mortise lock. The door must be equipped with reasonable door hardware to play its greatest role,so he choice of tenon lock should bebased on the choice of the root door type and the actual situation.
If you want to know more about of the European mortise lock, you can click here.
