How to choose hollow metal door hardware?

The hardware utilized not merely determines how well a door works, however, is also an important element in the working life of the opening.One of the many advantages of custom hollow metal is that the nearly infinite choice of hardware that may be utilized. The architect is free to select those items which will offer the operational characteristics, aesthetics, and quality desired, such as the use of electric components, pivots or anchor hinges, concealed closers, concealed vertical rod devices, different deadlocks, preassembled locks, and other architectural hardware.For almost any hardware item to function properly, the door and/or frame must be properly prepared. The durability of the hardware and its own attachment is dependent upon the potency of the groundwork. The kind of lock to be used must be known beforehand by the door maker so the proper reinforcement and preparation could be built into the doorway. The same is true of other architectural hardware things.

Field employed hardware preparations cannot compare in strength or quality with factory-made preparations. Since the custom manufacture of hollow metal is intended for a particular purpose, its own strengthening and prep are within the tolerances given for the hardware and provide the power for secure attachments.

This summary isn't meant as a benchmark catalogue or a thorough supply of hardware info, but just as an indication of the selection of hardware choices out there.So as to properly prepare each opening to the specified hardware products, a hardware program, corresponding templates, and catalog cuts, if appropriate, are needed. The hardware program has to be clear and correctly relate the specific hardware into the specific opening in a reasonable manner. Although there are alternate schedule formats, the vertical hardware program is most frequently used and preferred.The vertical schedule lists the outside openings initially, followed closely by the interior openings, and miscellaneous items last.

Inside the hardware schedule, only openings with equal hardware should be recorded under the same hardware collection.

Each hardware set must include all information necessary to properly prepare the opening to the hardware.

This includes:

A. Hardware set number

C. Door and frame substance

D. Door and frame dimensions

E. Hand of door

F. Special door or frame conditions-Degree of opening and hold open

G. Label requirements

H. Every hardware thing, for example;

1. Item description

2. Finish

3. Hand

4. Size

5. Template number

6. Particular requirements

So as to safely and stably function as a metallic door, metal doors have to be employed with special accessories.

In order to safely and stably function as a metal door, metal doors need to be used with special accessories. D and D HARDWARE offer certified Door ironmongery for Metal Doors & Fire Rated Metal Doors, comply with the American standards and the European Standards, BS EN, CE, UL, ANSI and BHMA certification, Suitable for Education, Healthcare, Hotel, Government , Apartment building, Hospitality Commercial applications.

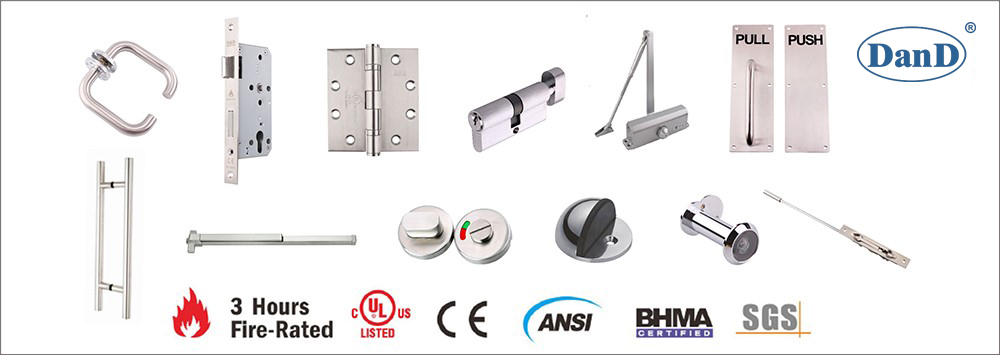

D and D HARDWARE has more than 13 years of experience in manufacturing Metal Door hardware for metal doors, include door hinges, door locks, door closers,exit devices, door handles and door Accessories etc.

For further information about Metal door hardware or metal door solution , click here.
