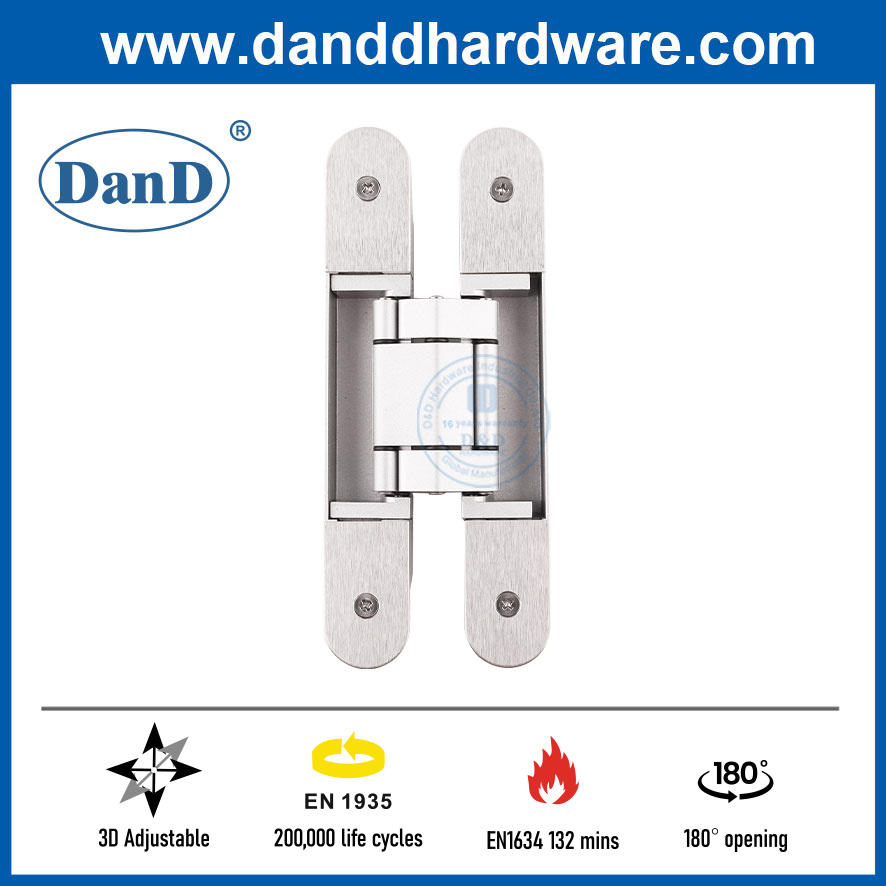

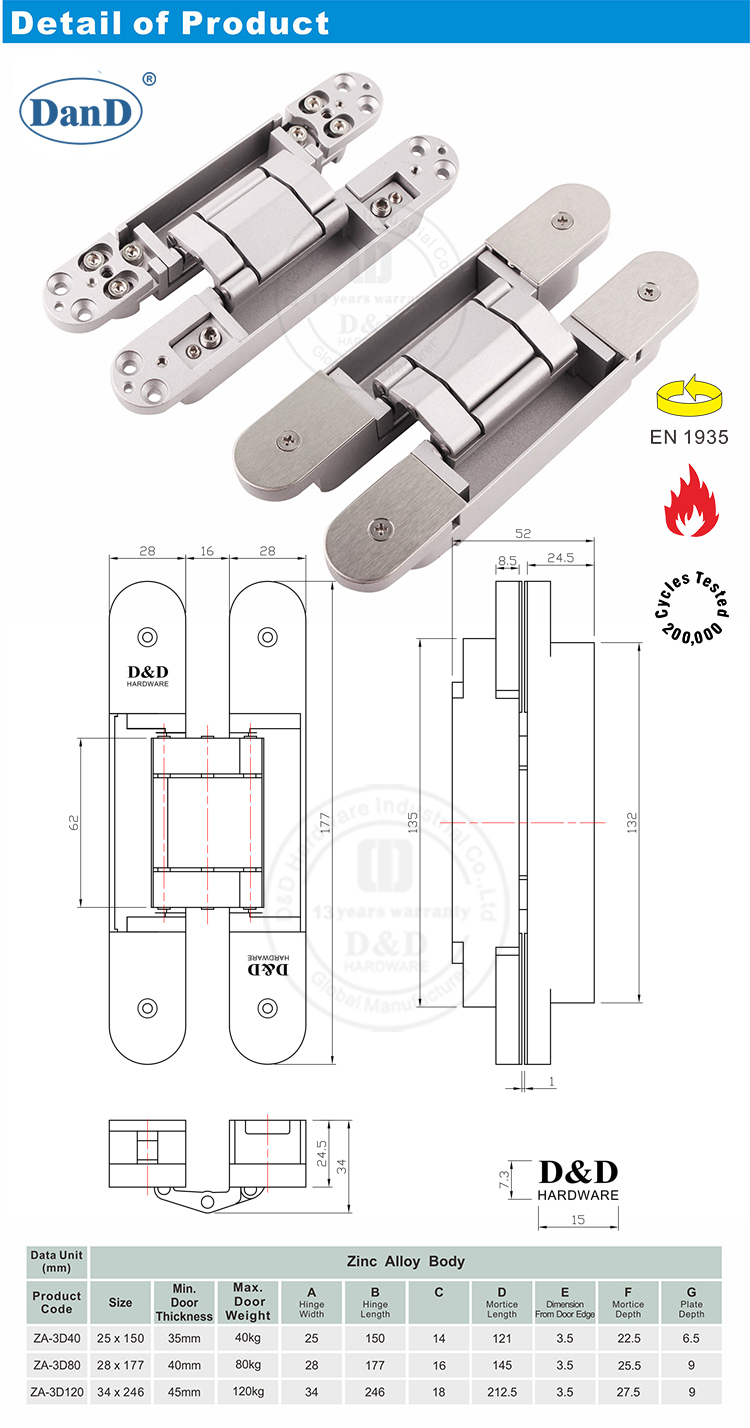

The 3D Adjustable Concealed Door Hinge is a concealed hardware connection device that achieves precise door positioning through a three-dimensional adjustment mechanism. Its core feature lies in supplementing the rotational function of traditional hinges with micro-adjustment capabilities across three dimensions: vertical, horizontal, and depth. This is accomplished via a precision threaded structure and slider mechanism, enabling millimetre-level accuracy in adjustment. This hinge type is fully embedded within the door leaf and frame, remaining invisible when the door is closed to preserve architectural visual integrity. Manufacturing must comply with EN1935 grading standards for hinge durability, and installation requires specialised positioning templates for mortising operations. The three-dimensional adjustment capability is particularly suited to high-standard projects requiring adaptation to building settlement or thermal-humidity induced deformation.
Product Overview
| Product name | EN1935 Zinc Alloy Silver Fire 3D Adjustable Concealed Door Hinge Types |
| Product Model | DDCH008-G80 |
| Certification | EN1935 200,00 cycles test, EN1634 fire rated 132mins, EN1670 corrosion resistance 48 hours |
| Material | Zinc Alloy Body, Aluminium Alloy Connecting Strip, SS Cover |
| Finish | Silver Painted , Black Painted , Golden Painted etc. |
| Color | Silver, Black, Golden, Antique Brass, Antique Copper, etc. |
| Suitable for | Wooden Door, Metal Door, Fire Door, etc. |
Packaging & Shipping
| MOQ | 500 Pieces |
| Package | One pair/white box or color box or Blister card in Standard export carton |
| Sample time | 5-7 working days |
| Production lead time | 30-35 days |
| Shipping Port | Jiangmen , China / Shenzhen , China . |
Contact us
</template>
Product Features
1. Exceptional Durability
Certified to EN1935 standards through 200,000 cycle testing, equivalent to over 20 years of daily use while maintaining full functionality. The hinge body employs high-pressure die-cast ZAMAK-5 zinc alloy with a tensile strength of 380MPa, far exceeding standard load-bearing specifications for conventional hinges. The connecting plate utilises 6061-T6 aluminium alloy with a Teflon coating, achieving a friction coefficient below 0.15. This 3D adjustable concealed door hinge is particularly suited for high-traffic public spaces, offering a lifespan exceeding three times that of standard hinges.
2. Exceptional Fire Resistance
Certified to EN1634 with a 132-minute fire resistance rating, surpassing the 90-minute requirement for standard fire doors. Features triple fire protection: stainless steel cover plate withstands temperatures up to 1000°C; hinge arms incorporate expandable graphite seals that triple in volume at 200°C to block smoke and fire; all screws feature fire-retardant coating. This 3D adjustable concealed door hinge maintains structural integrity in high-temperature environments, providing critical evacuation assurance.
3. Precision Adjustment
Achieves three-dimensional precision adjustment: Vertical ±2mm adjustment corrects sagging door panels; Horizontal ±1.5mm adjustment eliminates uneven gaps; Depth ±1.2mm adjustment ensures flush door surfaces. All adjustments are completed using a dedicated hex key without disassembling the door. With 0.1mm adjustment precision, it far surpasses standard hinges' capabilities. This 3D adjustable concealed door hinge compensates for deformation caused by building settlement.
4. Superior Corrosion Resistance
Certified to EN1670 Class 5, exhibiting no corrosion signs after 48 hours of salt spray testing. The surface employs PVD silver plating with a 0.8μm coating thickness, combined with the zinc alloy substrate's inherent rust resistance, ensuring long-term performance in 85% humidity environments. The stainless steel cover plate undergoes passivation treatment, achieving acid and alkali resistance grade 9. This 3D adjustable concealed door hinge is particularly suitable for coastal regions and high-humidity environments.
Maintenance and Care
1. Regular Inspection Schedule
A comprehensive inspection is recommended every six months, focusing on verifying that all fastening screws meet the 1.5N·m torque standard. Use a torque wrench to tighten all visible screws. Check the clearance between the hinge arm and cup; the normal value should be less than 0.2mm.
2. Cleaning and Maintenance Methods
Wipe surfaces with a soft cloth dampened in neutral detergent. Acidic or alkaline cleaners are strictly prohibited. Monthly application of silicone-based lubricant to the adjustment slider ensures mechanism flexibility. Thoroughly dry surfaces post-cleaning to prevent water residue.
3. Adjustment Mechanism Maintenance
Quarterly inspect the three-dimensional adjustment mechanism for smooth operation. Should adjustment prove difficult, promptly remove accumulated dust from threaded areas. Clean using a specialised thread cleaner, then apply a small quantity of lithium-based grease. Maintaining clean adjustment screws is crucial for precision.
4. Fire Performance Maintenance
Annually inspect the integrity of fire-resistant seals. Replace immediately if aged or damaged. Ensure the fire-resistant sealant within the hinge cup groove shows no cracking to maintain continuous fire protection.
5. Usage Precautions
Avoid impacting the door leaf against obstacles to prevent damage to internal hinge bearings. Note that door leaf weight must not exceed the rated load capacity, as overloading may cause hinge deformation. Immediately cease operation upon detecting abnormal noises or impaired opening/closing functionality. Resume use only after troubleshooting and rectifying the fault.
