How to choose the fire rated door hardware?

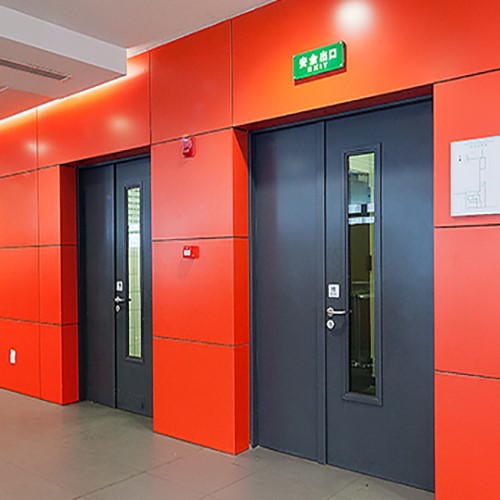

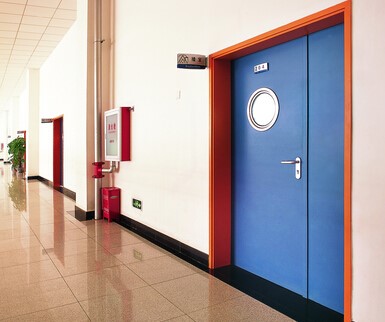

Fire has always been a hidden danger in our lives, which is why many public places and homes are now equipped with stainless steel fire doors. This way, in the event of a fire, our lives can be better protected. Here we take a look at the features of metal fire doors and a guide to choosing fire door hardware.

To ensure the quality of stainless steel fire doors, how to choose hardware is also an important part of the process. As fire doors are specifically designed for fire protection, their fittings are unlikely to burn naturally and instantly, so the choice of fire door hardware must be rigorous. D and D HARDWARE is equipped with a range of certified hardware to meet a variety of design requirements. All hardware is available in a wide range of surface finish options.

1.  The fire rated door hinge

Fire rated doors are generally thicker so that they can perform as fire rated as they should, and to ensure smooth opening and closing, they need to be hinged to the door frame. If the fire rated hinges themselves are not strong enough to resist fire, they are bound to become short door of the whole door. It is therefore essential that all labelled door hinges are made of high quality steel and meet sufficient specifications to avoid deformation at high temperatures.

What are the general standards for fire rated door hinges?

Hinges selection of based on the following factors:

●Door weight

●Usage frequency

●Door dimension

●Ball bearing hinges are mandatory requirements for all fire rated door openings.

D&D produces the highest quality of stainless steel fire rated hinges，tested to international industry standards（European Standards& American Standards）, including BS EN, CE, UL, ANSI and BHMA, Suitable for education, healthcare, hospitality, residential and commercial applications.

For example, BS EN 1935 uses 8-bit coding system to classify door furniture. Each number contains different hierarchical requirements: category of use; durability, test door mass, fire resistance (grade 1 is Suitable for fire/smoke resistant door assemblies subject to satisfactory assessment of the contribution of the single-axis hinge to the fire resistance of the specified fire/smoke door assemblies.); Security and door high grade.

2.   The fire rated mortise locks

Fire-rated mortise door lock as its name implies is a kind of fire-rated lock used on fire door, which can quickly open and close fire door.

High-level fire-rated door lock not only has CE certification, EN12209 certification, but also has 260 minutes of fire-rated certification (EN 1634), Solid stainless steel material enhanced durability and security.

They are also equipped with lock cylinders and fire-rated door handles.

Of course, different countries have different fire protection standards.

For example, ANSI mortise Locks

3.  The door closer

The function of the fire rated door closer is that when the fire door is opened, the door closer will automatically activate and close the fire door so that it can be closed, enabling the fire door to effectively prevent the spread of fire and smoke.

The first thing to look for when choosing a fire door closer is whether the closer meets the requirements of international standards such as CE/UL certification. Secondly, the metal door closer should be selected according to the weight of the door, the width of the door, the frequency of opening the door and the environment and requirements of the use. In general, the weight and width of the door are the main factors in choosing the type of door closer. If the door weighs less, choose a model with less strength, and vice versa. And the frequency of opening is closely related to the quality of the product. For frequent use, choose a door max with good sealing properties and a long service life.

Width of door max (kg):40-60kg

Width of door max (kg):60-80kg

Width of door max (kg):80-120kg

P.S: Double doors with two door closers shall be equipped with one door selector.

4.  The panic exit device.

The main function of the exit device is to prevent foreign personnel from entering the interior without permission, and to achieve the safety of internal personnel in emergency situations such as fires.

A good quality Exit Device should have these features:

●Available in SS Grade 304 and painted steel

●UL 10C Fire Rated for use on timber and metal doors

●Touch bar length of device :500mm

●Security Anti-thrust latch

● Non-handed

In summary, fire doors are public safety products. Their quality is directly related to the ability of fire safety facilities to function effectively and in a timely manner to protect personal safety and property after a fire has occurred. Therefore, it is particularly important to choose qualified fire doors and fire door hardware.

D and D HARDWARE has more than 13 years experience in the manufacture and supply of architectural hardware products. Specialist fire protection hardware products include: fire door hinges, fire mortise locks, fire door handles, fire door closers, fire exit devices etc.

Our experienced and qualified team can help you find the most suitable solution for your needs, committed to mutual benefit.

For more information about fire rated door hardware, click here.
