SS201 Double Ball Bearing Security Knuckle Door Hinge- DDSS014

loading

Share to:
sharethis sharing button
According to UL&CE Certificate Standard
  • DDSS014-SS201

  • D and D Hardware

  • UL Listed / UL10C , CE EN 1935

  • Stainless Steel 304 / 316 / 201

  • SSS , PSS , PVD , PB, AB , AC, SC, PC, SB, MB

  • Silver,Black, Golden, Antique Brass, Antique Copper

  • Wooden Door, Metal Door, Steel Door, Interior Door, Outer Door etc.

  • T/T, L/C, D/P, Western Union

  • Jiangmen /Guangzhou / Shenzhen , China

  • 200,000/Month

SKU:
Availability:
Quantity:

SS201 Double Ball Bearing Security Knuckle Door Hinge- DDSS014


SS201 Double Security Hinge is a popular hinge, it is durable and easy to use. As a professional hinge supplier in China, we provide customers various quality Security Hinge and they apply to different commercial of doors. Double Security Hinge is one kind of our Wood Door Hinge. The material of Double Security Hinge is stainless steel, so it can keep the original shape very well. It won't turn yellow or rust. The Double Security Hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of Security Door Hinge become old and bad. The Door Hinge can also keep long-term lubrication, make you convenient to open and close the door. The SS201 Double Security Hinge is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.


Door Hinge Types-D and D Hardware

Hinges Types-D and D Hardware


Product Overview



The D&D range of architectural hinges is manufactured to the highest engineering standards and designed to offer a high price/ performance ratio.

Stainless steel leaf, fix/loos /loose non-rising/non-removable pin, ball bearing/washers, flat/ rivet/ball/crown tip and screw provide enhanced durability and security.


Product name

SS201 Double Ball Bearing Security Knuckle Door Hinge- DDSS014

Product Model

DDSS014-SS201

According to Standard

UL Listed / UL10C ,  CE EN1935

 Item

4.0" x 3.0" x 2.5mm     4.5" x 4.0" x 3.0mm

4.0" x 3.0" x 3.0mm     4.5" x 4.5" x 3.0mm

4.0" x 3.5" x 3.0mm     4.5" x 4.0" x 3.4mm

4.0" x 4.0" x 3.0mm     4.5" x 4.5" x 3.4mm

5.0" x 3.5" x 3.0mm

Material

Stainless Steel 201, 304 or 316

Fitting

Flat tip, ball bearing, fix pin, screws

Finish

Satin stainless steel, Polished stainless steel, Polished brass,Chrome-plated(polish chrome plate&satin chrome plate), Antique brass, Antique copper, Matt black,Physical Vapor Deposition

Color Silver,Black, Golden, Antique Brass, Antique Copper

Suitable for

Wooden door, Metal door,  Steel door , Fire rated door etc.

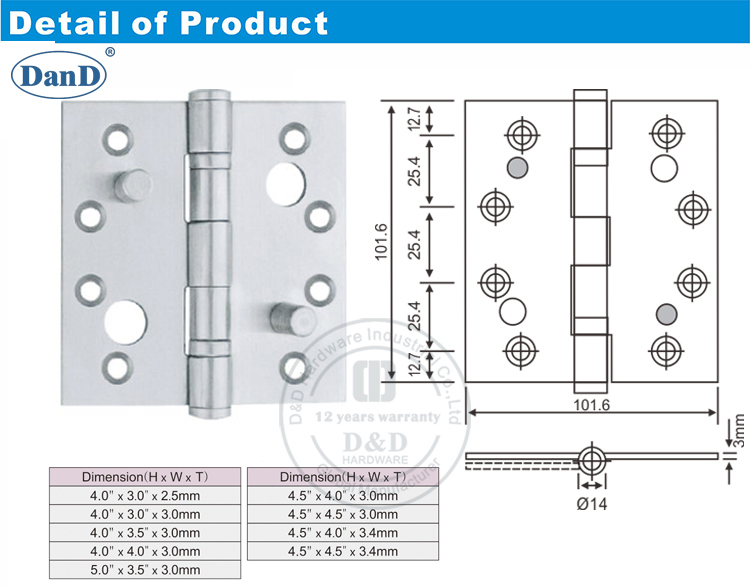

Stainless Steel Double Security Hinge


Packaging & Shipping


SS201 Double Ball Bearing Security Knuckle Door Hinge- DDSS014


MOQ  500 Pairs
Package One pair/white box or color box or Blister card in Standard export carton
Sample time 5-7 working days
Production lead time 30-35 days
Shipping Port  Jiangmen , China   / Shenzhen , China .


Different Types Door Hinges-D and D Hardware

UL Fire Rated Door Hinge-D and D Hardware


Test


D&D-To ensure the product quality through state-of-the-art inspection facilities.The inspection covers whole range form the incoming materials to the delivered products in Chemistry,mechanical properties, dimensional and necessary metallurgical structure.


Inspection Equipment -D and D hardware


Company Information


D and D Hardware Manufacturer


D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.

More door hardware items include:
1. Stainless Steel Door Hinge- UL Listed & Fire Rated & CE Certificate
2. Door Locks - CE EN12209 Fire Rated
3. Stainless Steel Door Handles- BS EN 1906
4. Panic Exit Device- UL Listed & CE Certificate
5. Door Closers –
UL Listed & Fire Rated & CE Certificate

6. Glass Hardware / Bathroom Hardware


Contact us

D and D Hardware Contact Information



SS201 Double Ball Bearing Security Knuckle Door Hinge- DDSS014


Product name

SS201 Double Ball Bearing Security Knuckle Door Hinge- DDSS014

Product Model

DDSS014-SS201

According to Standard

UL Listed / UL10C ,  CE EN1935

 Item

4.0" x 3.0" x 2.5mm     4.5" x 4.0" x 3.0mm

4.0" x 3.0" x 3.0mm     4.5" x 4.5" x 3.0mm

4.0" x 3.5" x 3.0mm     4.5" x 4.0" x 3.4mm

4.0" x 4.0" x 3.0mm     4.5" x 4.5" x 3.4mm

5.0" x 3.5" x 3.0mm

Material

Stainless Steel 201, 304 or 316

Fitting

Flat tip, ball bearing, fix pin, screws

Finish

Satin stainless steel, Polished stainless steel, Polished brass,Chrome-plated(polish chrome plate&satin chrome plate), Antique brass, Antique copper, Matt black,Physical Vapor Deposition

Color Silver,Black, Golden, Antique Brass, Antique Copper

Suitable for

Wooden door, Metal door,  Steel door , Fire rated door etc.


Door Hinge Selecting-D and D Hardware

Door Hinge -D and D Hardware

UL Listed Certification Door Hinge-D and D Hardware

D&D Hardware specialized in Stainless Steel hardware products for Wooden Doors& Metal Doors, such as Door Locks, Door Hinge, Lever Handles, Door Closer, Panic Exit Device, Door stopper, Flush Bolt, etc.


The Stainless Steel Euro Door Hinge that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.


More door hardware items include:
1. Stainless Steel Door Hinge- UL Listed & Fire Rated & CE Certificate
2. Door Locks - CE EN12209 Fire Rated
3. Stainless Steel Door Handles- BS EN 1906
4. Panic Exit Device- UL Listed & CE Certificate
5.Door Closers –UL Listed & Fire Rated & CE Certificate

6. Glass Hardware / Bathroom Hardware


UL Listed Door Hinge-D and D HardwareANSI Grade 2 Door Hinge Certificate-D and D HardwareANSI Grade 1 Hinge Certification-D and D Hardware

CE Hinge Certificate-D and D Hardware

Door Hardware Certification-D and D Hardware
