SUS304 UL Listed Fire Ball Bearing Hinge for Commercial Exterior Door-DDSS002-FR-4.5X4X3.0

loading

Share to:
sharethis sharing button
UL Certificated Hinge, UL 10C,comply with ANSI/BHMA-A-156.1 200, 000 cycles tested on 120kg door mass according to EN1935: 2002
  • DDSS002-FR-SS304--4.5X4X3.0

  • D and D Hardware

  • UL Listed / UL10C , 3 Hours Fire Rated , NFPA80

  • Stainless Steel 304 / 316 / 201

  • SSS , PSS , PVD , PB, AB , AC, SC, PC, SB, MB

  • Silver,Black, Golden, Antique Brass, Antique Copper

  • Wooden Door, Metal Door, Steel Door, Interior Door, Outer Door

  • T/T, L/C, D/P, Western Union

  • Jiangmen /Guangzhou / Shenzhen , China

  • 200,000/Month

SKU:
Availability:
Quantity:

SUS304 UL Listed Fire Ball Bearing Hinge for Commercial Exterior Door-DDSS002-FR-4.5X4X3.0


UL Listed Ball Bearing Fire Rated Door Hinge is a popular hinge, it is durable and easy to use. As a professional hinge supplier in China, we provide customers various quality Full Mortise Fire Rated Hinge and they apply to different commercial of doors. Full Mortise Fire Rated Hinge is one kind of our Door Hinge. The material of Fire Rated Hinge is stainless steel, so it can keep the original shape very well. It won't turn yellow or rust. The Exterior Door Hinge can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of Durable Fire Rated Hinge become old and bad. The Durable Wood Door Hinge can also keep long-term lubrication, make you convenient to open and close the door. The SUS304 Fire Rated Hinge is smooth and easy to install and use, it can bring you high security and beauty. For further information, please contact us.


01 Door Hinge Types-D and D Hardware

02 UL Listed 10C Door Hinge-D and D Hardware

07 ANSI Grade 1 and Grade 2 Door Hinge-D and D Hardware

03 Hinges Types-D and D Hardware


Product Overview



The D&D range of architectural hinges is manufactured to the highest engineering standards and designed to offer a high price/ performance ratio.

They have been successfully type tested to all the requirements of BS EN 1935, UL 10C, 3 hours Fire Rate.

Stainless steel leaf, fix/loos /loose non-rising/non-removable pin, ball bearing/washers, flat/ rivet/ball/crown tip and screw provide enhanced durability and security.

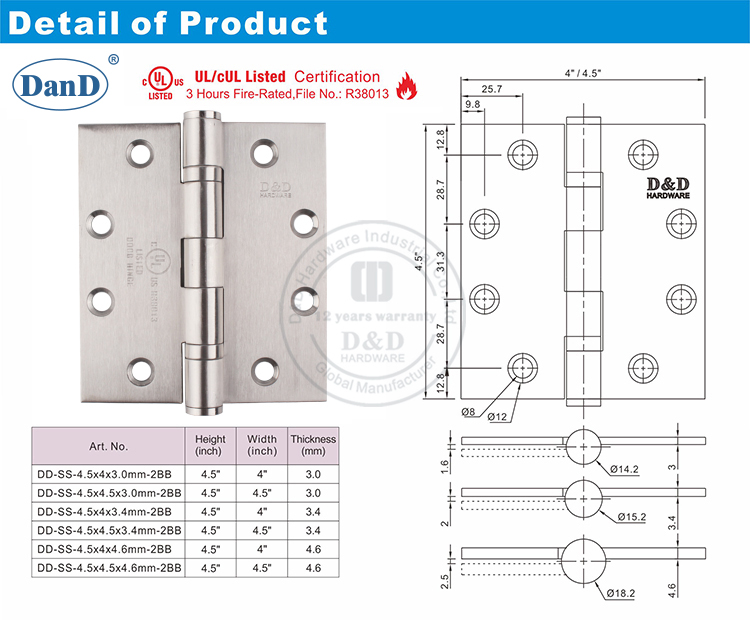

Product name

SUS304 UL Listed Fire Ball Bearing Hinge for Commercial Exterior Door-DDSS002-FR-4.5X4X3.0

Product Model

DDSS002-FR-4.5X4X3.0

Product Size

4.5x4x3.0mm

Certification

UL Listed / UL10C , 3 Hours Fire Rated , NFPA80

UL File Number

R38013

Notify Body

UL From U.S.A

UL certificate item

4.0"x3.0"x3.0mm   4.0"x3.5"x3.0mm   4.0"x4.0"x3.0mm

4.5"x4.0"x3.0mm   4.5"x4.5"x3.0mm   4.5"x4.0"x4.6mm

4.5"x4.0"x3.4mm   4.5"x4.5"x3.4mm   4.5"x4.5"x4.6mm
5.0"x3.0"x3.0mm   5.0"x3.5"x3.0mm   5.0"x4.0"x3.0mm
5.0"x4.0"x3.4mm   5.0"x4.5"x3.4mm   4.0"x4.0"x3.4mm
5.0"x4.0"x4.6mm   5.0"x4.5"x4.6mm   5.0"x5.0"x4.6mm

Material

Stainless Steel 201, 304 or 316

Fitting

Flat tip, ball bearing, fix pin, screws

Finish

Satin stainless steel, Polished stainless steel, Polished brass,Chrome-plated(polish chrome plate&satin chrome plate), Antique brass, Antique copper, Matt black,Physical Vapor Deposition

Color Silver,Black, Golden, Antique Brass, Antique Copper

Suitable for

Wooden door, Metal door,   Steel door , Fire rated door

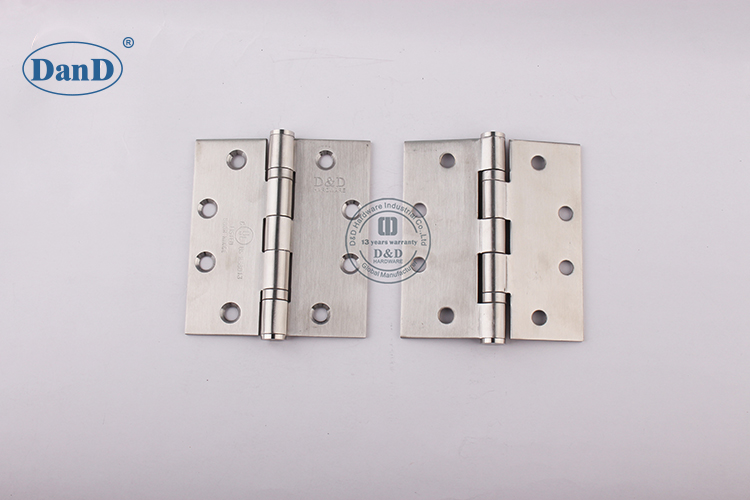

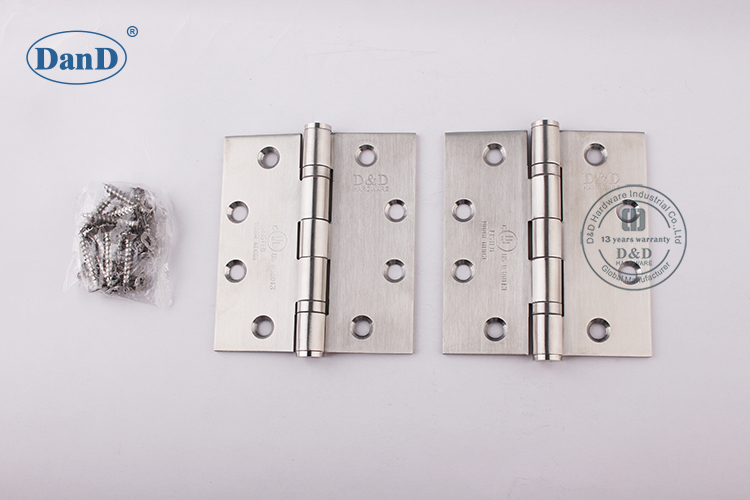

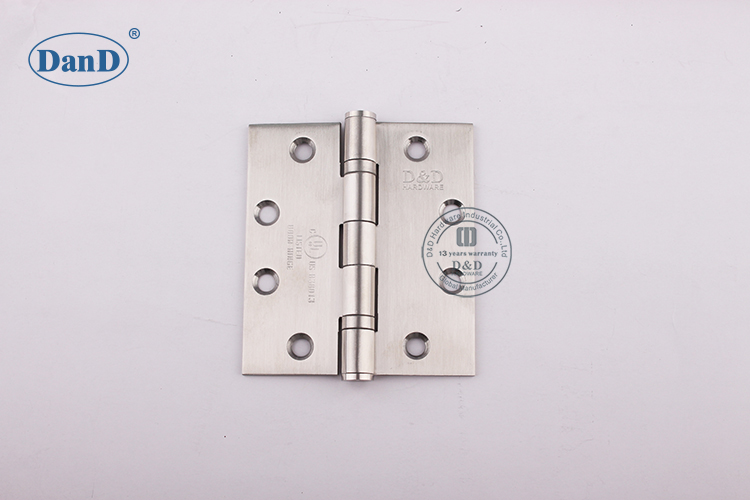

UL Door HingeUL Commercial Fire Door HingeUL National Door HingeUL Listed Fire Door Hinge

04 Different Types of Door Hinges-D and D Hardware


Packaging & Shipping


SUS304 UL Listed Fire Ball Bearing Hinge for Commercial Exterior Door-DDSS002-FR-4.5X4X3.0


MOQ  500 Pairs
Package One pair/white box or color box or Blister card in Standard export carton
Sample time 5-7 working days
Production lead time 30-35 days
Shipping Port  Jiangmen , China   / Shenzhen , China .

Different Types Door Hinges-D and D Hardware


05 UL Fire Rated Door Hinge-D and D Hardware


Test


D&D-To ensure the product quality through state-of-the-art inspection facilities.The inspection covers whole range form the incoming materials to the delivered products in Chemistry,mechanical properties, dimensional and necessary metallurgical structure.


Inspection Equipment -D and D hardware


Company Information



D&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.

More door hardware items include:
1. Stainless Steel Door Hinge- UL Listed & Fire Rated & CE Certificate
2. Door Locks - CE EN12209 Fire Rated
3. Stainless Steel Door Handles- BS EN 1906
4. Panic Exit Device- UL Listed & CE Certificate
5. Door Closers –
UL Listed & Fire Rated & CE Certificate

6. Glass Hardware / Bathroom Hardware


Contact us

D and D Hardware Contact Information

SUS304 UL Listed Fire Ball Bearing Hinge for Commercial Exterior Door-DDSS002-FR-4.5X4X3.0


Product name

SUS304 UL Listed Fire Ball Bearing Hinge for Commercial Exterior Door-DDSS002-FR-4.5X4X3.0

Product Model

DDSS002-FR-4.5X4X3.0

Product Size

4.5x4x3.0mm

Certification

UL Listed / UL10C , 3 Hours Fire Rated , NFPA80

UL File Number

R38013

Notify Body

UL From U.S.A

UL certificate item

4.0"x3.0"x3.0mm   4.0"x3.5"x3.0mm   4.0"x4.0"x3.0mm

4.5"x4.0"x3.0mm   4.5"x4.5"x3.0mm   4.5"x4.0"x4.6mm

4.5"x4.0"x3.4mm   4.5"x4.5"x3.4mm   4.5"x4.5"x4.6mm
5.0"x3.0"x3.0mm   5.0"x3.5"x3.0mm   5.0"x4.0"x3.0mm
5.0"x4.0"x3.4mm   5.0"x4.5"x3.4mm   4.0"x4.0"x3.4mm
5.0"x4.0"x4.6mm   5.0"x4.5"x4.6mm   5.0"x5.0"x4.6mm

Material

Stainless Steel 201, 304 or 316

Fitting

Flat tip, ball bearing, fix pin, screws

Finish

Satin stainless steel, Polished stainless steel, Polished brass,Chrome-plated(polish chrome plate&satin chrome plate), Antique brass, Antique copper, Matt black,Physical Vapor Deposition

Color Silver,Black, Golden, Antique Brass, Antique Copper

Standard

Strictly according to   ANSI/BHMA, Meets ANSI-A156.7.
200, 000 cycles tested on 120kg door mass according to EN1935: 2002

Suitable for

Wooden door, Metal door,  Steel door , Fire rated door


06 UL Listed Certification Door Hinge-D and D Hardware

D&D Hardware specialized in Stainless Steel hardware products for Wooden Doors& Metal Doors, such as Door Locks, Door Hinge, Lever Handles, Door Closer, Panic Exit Device, Door stopper, Flush Bolt, etc.


The Stainless Steel Euro Door Hinge that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.
