Views: 0 Author: Site Editor Publish Time: 2025-11-24 Origin: Site
When selecting hardware for a building project, door hinges might not be the most glamorous component, but they are one of the most critical. The right hinge ensures that a door operates smoothly, hangs correctly, and provides the necessary safety and security for years to come. Among the top-tier options available, the CE Euro Style Stainless Steel 304 Butt Hinge stands out for its superior quality, durability, and safety certifications.
This guide will walk you through everything you need to know about this specific type of CE door hinge. We will explore its key features, from the materials used to its impressive fireproof rating and certifications. By the end, you'll understand why this hinge is a preferred choice for architects, builders, and designers working on both residential and commercial projects.

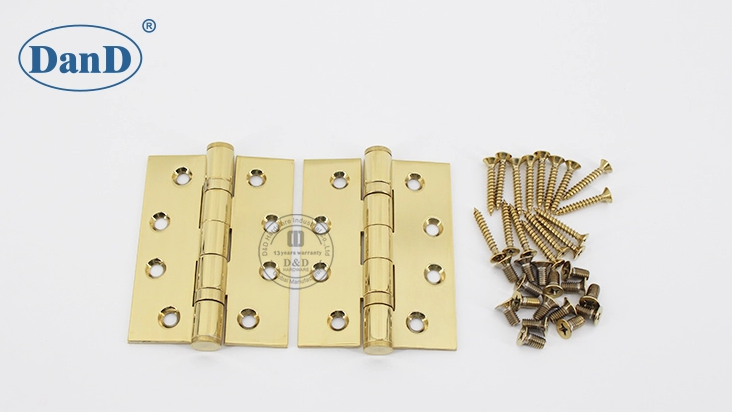

The name "CE Euro Style Stainless Steel 304 Butt Fireproof Metal Door Hinge" is a mouthful, but each part of its description points to a specific, high-quality feature. Let's break down what makes this hinge a premium product in the hardware market.
The butt hinge is the most common type of hinge used on doors. It consists of two rectangular leaves with knuckles in the middle, joined together by a pin. When installed, the leaves are mortised into the door and the frame, so they sit flush. When the door is closed, the two leaves "butt" up against each other, hence the name. This design is simple, strong, and provides a clean, unobtrusive look, making it suitable for a wide range of applications from interior residential doors to heavy-duty commercial entrances.
The "Euro Style" designation often refers to a sleek, modern aesthetic combined with high-performance engineering. These hinges typically feature a clean design with precise manufacturing, ensuring smooth operation and a sophisticated look. They are designed to meet the rigorous standards common in the European market, which prioritize both functionality and safety.
The performance and longevity of a hinge are directly related to the materials it's made from and its specific design features.
The primary material used in these hinges is Stainless Steel 304. This is a crucial feature for several reasons:
Corrosion Resistance: Stainless Steel 304 contains a significant amount of chromium and nickel, which creates a passive layer on the surface that protects it from rust and corrosion. This makes it an excellent choice for doors in humid environments like bathrooms and kitchens, as well as for exterior doors exposed to the elements.
Strength and Durability: This grade of stainless steel is known for its high tensile strength, allowing it to support heavy doors without warping or failing over time. It can withstand the constant stress of opening and closing, ensuring a long service life.
Hygienic Properties: The non-porous surface of stainless steel is easy to clean and sanitize, which is a significant advantage in commercial settings like hospitals, restaurants, and public buildings where hygiene is paramount.
While Stainless Steel 304 is the standard for high quality, these hinges are sometimes also available in Stainless Steel 316 for even greater corrosion resistance (ideal for coastal or industrial areas) or Stainless Steel 201 as a more budget-friendly alternative for less demanding indoor applications.
One of the most critical features of this CE door hinge is its fireproof rating. Fire-rated doors are a mandatory safety feature in most commercial and multi-family residential buildings. They are designed to compartmentalize a building and slow the spread of fire and smoke, allowing occupants to evacuate safely.
For a fire door to be effective, every component—including the hinges—must also be fire-rated. These stainless steel hinges are designed to withstand high temperatures without melting or failing, ensuring the fire door remains securely in its frame during a fire. This integrity is essential for maintaining the fire barrier.
The "CE" in the product name is not just a label; it's a declaration of quality and compliance. The CE mark signifies that the product meets the high safety, health, and environmental protection standards of the European Economic Area (EEA).
For door hinges, the relevant standard is CE EN 1935. This standard classifies hinges based on their performance in a series of rigorous tests. This particular hinge meets Grade 13, which is one of the highest grades available for commercial use.
The classification code—476114013—provides detailed information about the hinge's performance:
4: Category of use (heavy-duty)
7: Durability (200,000 test cycles)
6: Test door mass (up to 120 kg)
1: Suitability for fire/smoke resistant doors
1: Safety
4: Corrosion resistance (high resistance)
0: Security (not intended for burglar-resistant doors)
13: Hinge grade
Achieving this classification means the hinge has proven its ability to perform reliably under heavy use, support substantial door weights, and function effectively on fire-rated doors. This certification provides peace of mind that you are installing a product that is not only durable but also meets critical safety regulations.
Beyond its technical specifications, the CE Euro Style Stainless Steel 304 hinge offers significant versatility.
The robust construction of these hinges makes them suitable for a wide range of door types, including:
Wooden Doors: Their strength can easily support heavy solid-wood doors.
Metal and Steel Doors: They are a perfect match for the weight and durability of metal doors, often used in commercial and industrial settings.
Interior and Exterior Doors: Thanks to the corrosion resistance of Stainless Steel 304, these hinges can be used for both internal and external applications without fear of degradation from weather exposure.
Functionality does not have to come at the expense of style. These hinges are available in a multitude of finishes to complement any design aesthetic. Popular options include:
SSS (Satin Stainless Steel): A contemporary, matte finish that hides fingerprints.
PSS (Polished Stainless Steel): A bright, mirror-like finish for a classic, high-end look.
PVD (Physical Vapor Deposition): A durable coating available in finishes like Golden and Black for a modern, bold statement.
Antique Finishes (AB, AC): Antique Brass and Antique Copper finishes are ideal for traditional or rustic designs.
Matte Black (MB): A popular choice in modern and industrial interior design.
This wide range of colors and finishes allows architects and designers to maintain a consistent design language throughout a project, matching hinges to door handles, locks, and other hardware.
When it comes to building hardware, compromising on quality can lead to long-term problems, from sagging doors to critical safety failures. The CE Euro Style Stainless Steel 304 Butt Fireproof Metal Door Hinge offers a solution that addresses durability, safety, and aesthetics in one package.
Its certified performance under CE EN 1935 Grade 13 provides verifiable proof of its strength and suitability for fire doors. The use of high-quality Stainless Steel 304 ensures it will resist corrosion and wear for years to come. And with a variety of finishes available, it can fit seamlessly into any design vision. By choosing a certified CE door hinge, you are investing in the safety, functionality, and longevity of your building project.
