DDAL20
D and D Hardware
UL Listed, UL 10C Fire Rated 3 Hours, File No.:R40901
Stainless Steel 304
SSS, PSS, PVD, AB, AC ,MB
Silver,Black, Golden, Antique Brass, Antique Copper
Wooden Door, Metal Door
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|
A UL 10C-certified mortise lock offers dual critical benefits: firstly, it ensures fire and smoke containment, having undergone rigorous testing to withstand fire exposure for its rated duration 3 hours without failure, thereby preventing the spread of fire and smoke through door openings and safeguarding escape routes and nearby areas; secondly, it maintains the door’s fire rating, as fire-rated doors will lose their certification if fitted with non-UL-listed hardware, whereas a UL 10C-rated mortise lock guarantees that the entire door assembly, including both the door and its hardware, preserves its fire resistance. For further information, please contact us.
Product Overview

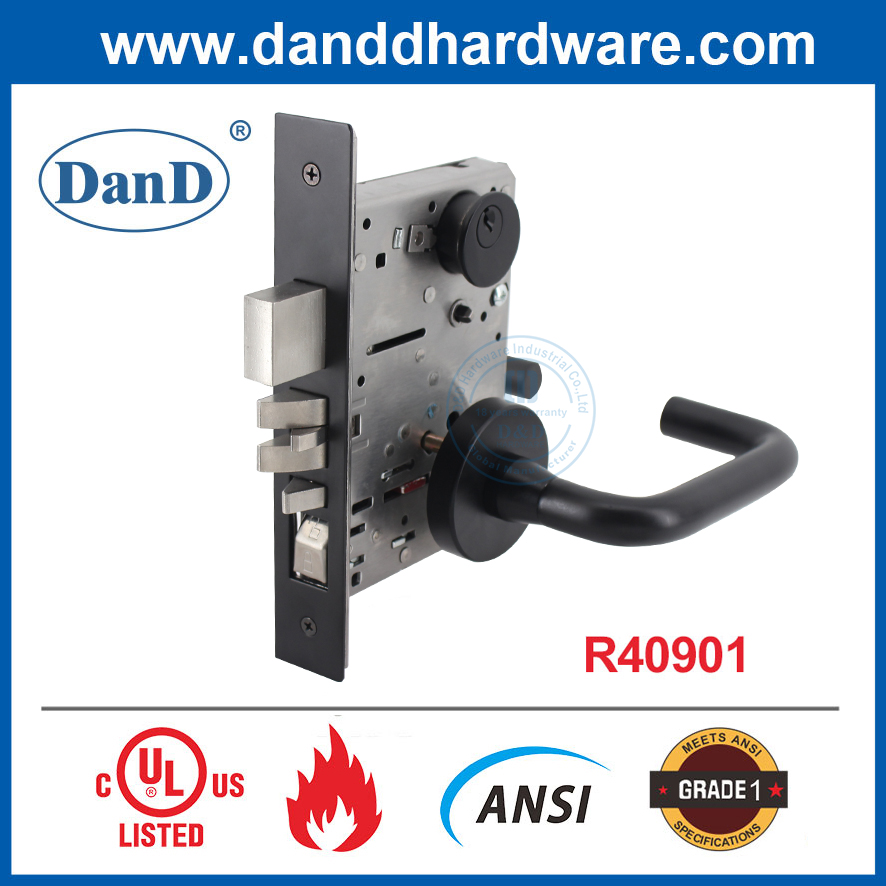

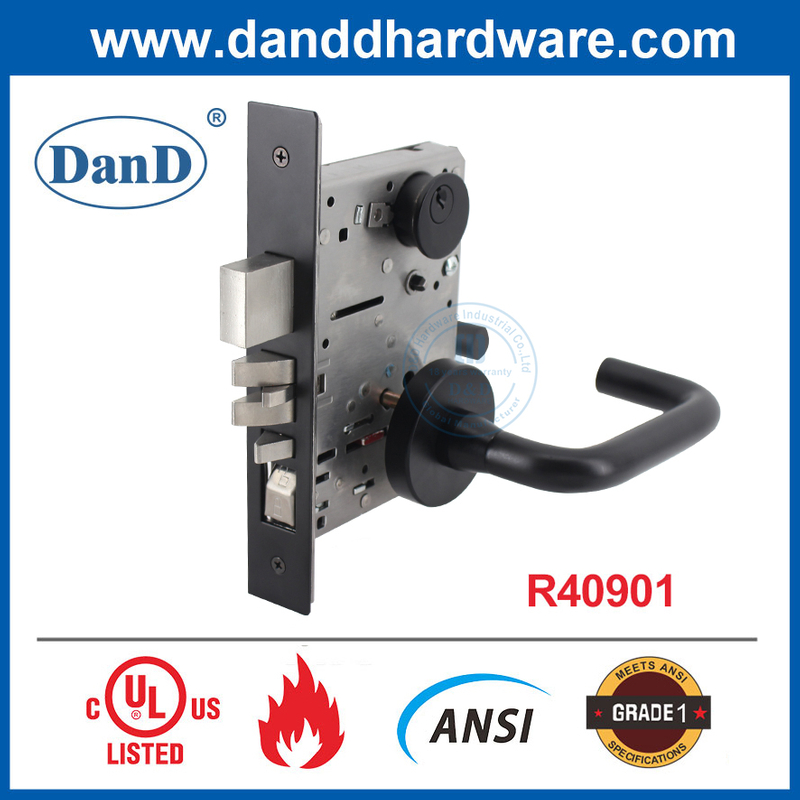

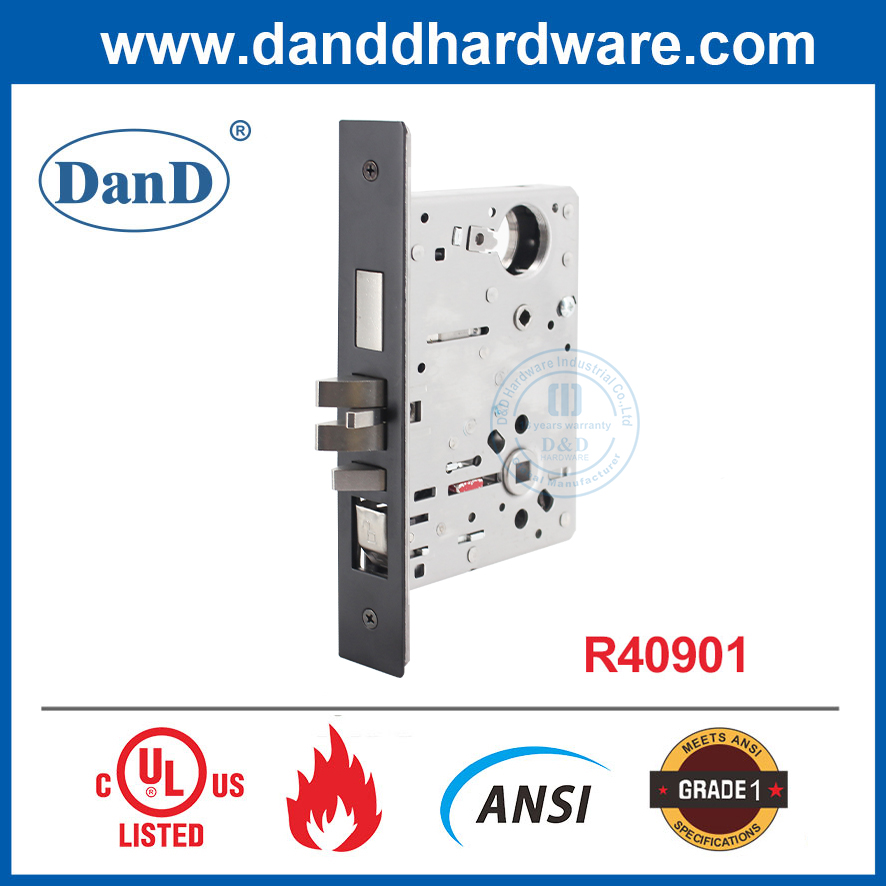

Product name | UL 10C Matt Black Mortise Door Locks Manufacturer in China for Hotel |
Product Model | DDAL20 |
Certification and Compliance | ANSI/BHMA A156.13-2005 Grade 1, UL 10C Fire Rated 3 Hours, File No.: R40901 |
| Color | Silver, Black, Golden, Antique Brass, Antique Copper |
Lockcase | Heavy Gauge Stainless Steel for Corrosion Resistance |
Deadbolt | Solid Casting SUS304, Project 1"（25.4mm） |
Latchbolt | Solid Casting SUS304, Project 3/4"（19mm）,Anti-Friction Two Pieces and Can be Reversible |
Auxiliary Latchbolt | Stainless steel |
Forend | Stainless steel Grade 304 |
Strike | Stainless steel Grade 304, Non-Handed |
Door Thickness | 45mm to 55mm As Standard |
Backset | 2-3/4" (70mm) |
Center to Center | 3-5/8" (92mm） |
Door Handing | Left Hand and Right Hand |
Packaging & Shipping
MOQ | 200PCS |
Package | 1pc /poly bag,white box / color inner box,Standard export Carton . |
Sample time | 5-7 working days |
Production lead time | 30-35 days normally |
Shipping Port | Jiangmen , China / Shenzhen , China |
