DDLC014
D and D Hardware
Quality Solid Brass body and plug
SN, PB, AB, AC, CP, PVD
Silver,Black, Golden, Antique Brass, Antique Copper
Wooden Door, Metal Door, Steel Door, Interior Door, Outer Door
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| Quantity: | |
|---|---|

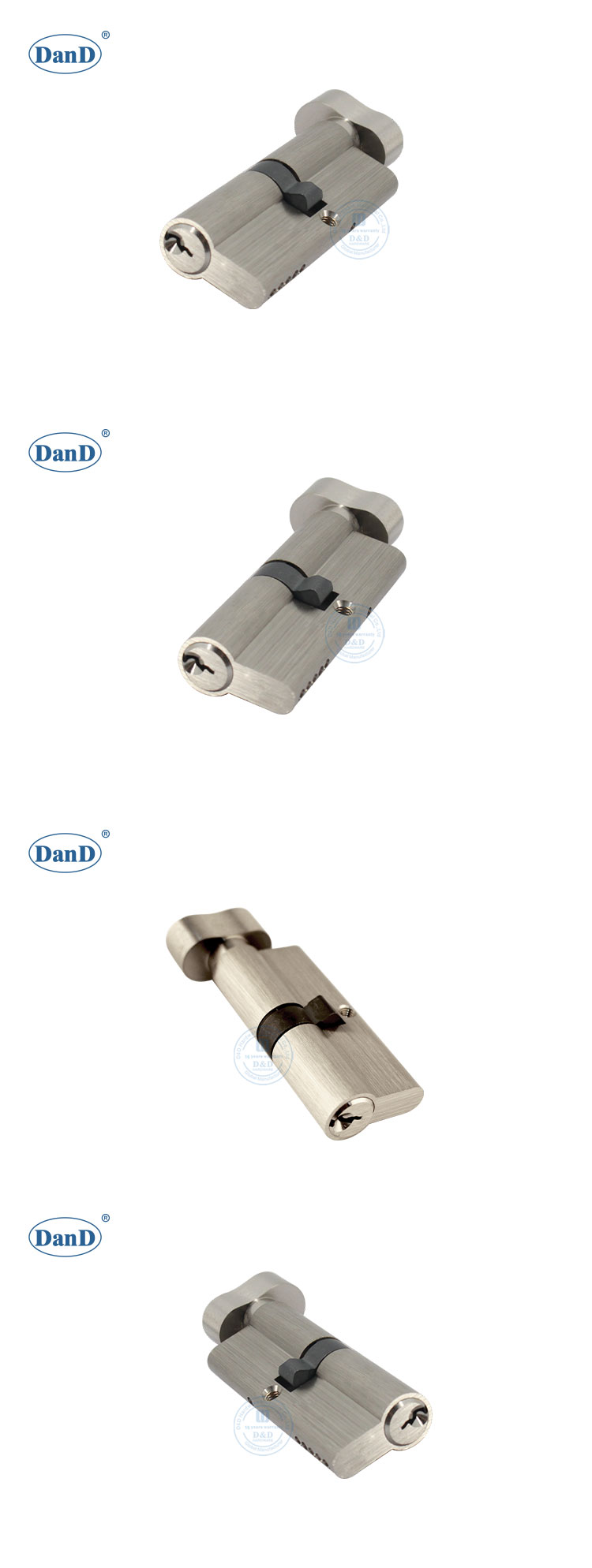

EN1303 Peanut Knob Lock Cylinder Euro Single Door Cylinder Lock-DDLC014
The DDLC014 is a Key and Turn Cylinder featuring an ergonomic Peanut Knob. It is highly certified, boasting a 183-minute fire rating and compliance with the EN 1303 standard, categorized with a Class of 1 6 0 B 0 C 6 0.
The peanut knob measures 17.3mm in width, 31.6mm in height, and 16mm in thickness, set at a 30-degree angle. The main cylinder body has a diameter of 17mm and utilizes an M5 fixing screw.
This model is highly versatile, offering multiple length configurations to fit various door thicknesses. The overall length (A) ranges from 60mm to 100mm, with symmetric dimensions B and C (e.g., 30/30 for the 60mm model, 45/45 for the 90mm model). Other custom lengths are also available upon request. This combination of robust fire safety, precise engineering, and adaptable sizing makes it ideal for diverse architectural security needs.
For more information, please contact us.
Product Overview
| Product name | EN1303 Peanut Knob Lock Cylinder Euro Single Door Cylinder Lock-DDLC014 |
| Product Model | DDLC014 |
| Material | Quality Solid Brass body and plug |
| Pins | 6 Brass Pins standard, 10 Pin high security with two line pins, other sizes available |
| Degree | 0 degree, or 30 degree offset cam inhibits knock through |
| Fastening screw | 65mm (standard), other lengths will be available according to different backset |
| Accessories | 3 normal keys,1pc fastening screw |
| Finish | Satin nickle ,Antique Brass ,Antique Copper,Polish Brass,Chrome Plate,Physical Vapor Deposition, Matt Black |
| Color | Silver,Black, Golden, Antique Brass, Antique Copper |
| Suitable for | Wooden door, Metal door, Interior door, outer door, swing door etc. |
Packaging & Shipping
MOQ | 300 Pieces |
Package | One pair/white box or color box or Blister card in Standard export carton |
Sample time | 5-7 working days |
Production lead time | 30-35 days |
Shipping Port | Jiangmen , China / Shenzhen , China . |
Contact us
