⚙️UL 10C Fire Rated ⚙️ CE Certified ⚙️ 3D Adjustable ️ ⚙️Commercial Grade

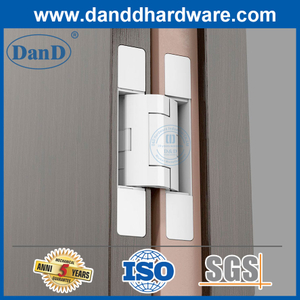

How fire-rated metal door manufacturers are utilizing D&D Hardware's dual-certified (UL & CE) concealed hinges to reduce installation labor, eliminate call-backs, and secure high-end commercial projects.
For commercial fire door manufacturers, hardware is no longer just a functional component—it is a critical variable in the overall cost of production, installation efficiency, and project compliance. The shift towards minimalist architectural design has made concealed hinges a strict requirement in premium commercial bids. However, supplying a hinge that is invisible is only half the battle; it must also withstand extreme fire conditions and support heavy metal doors without sagging.

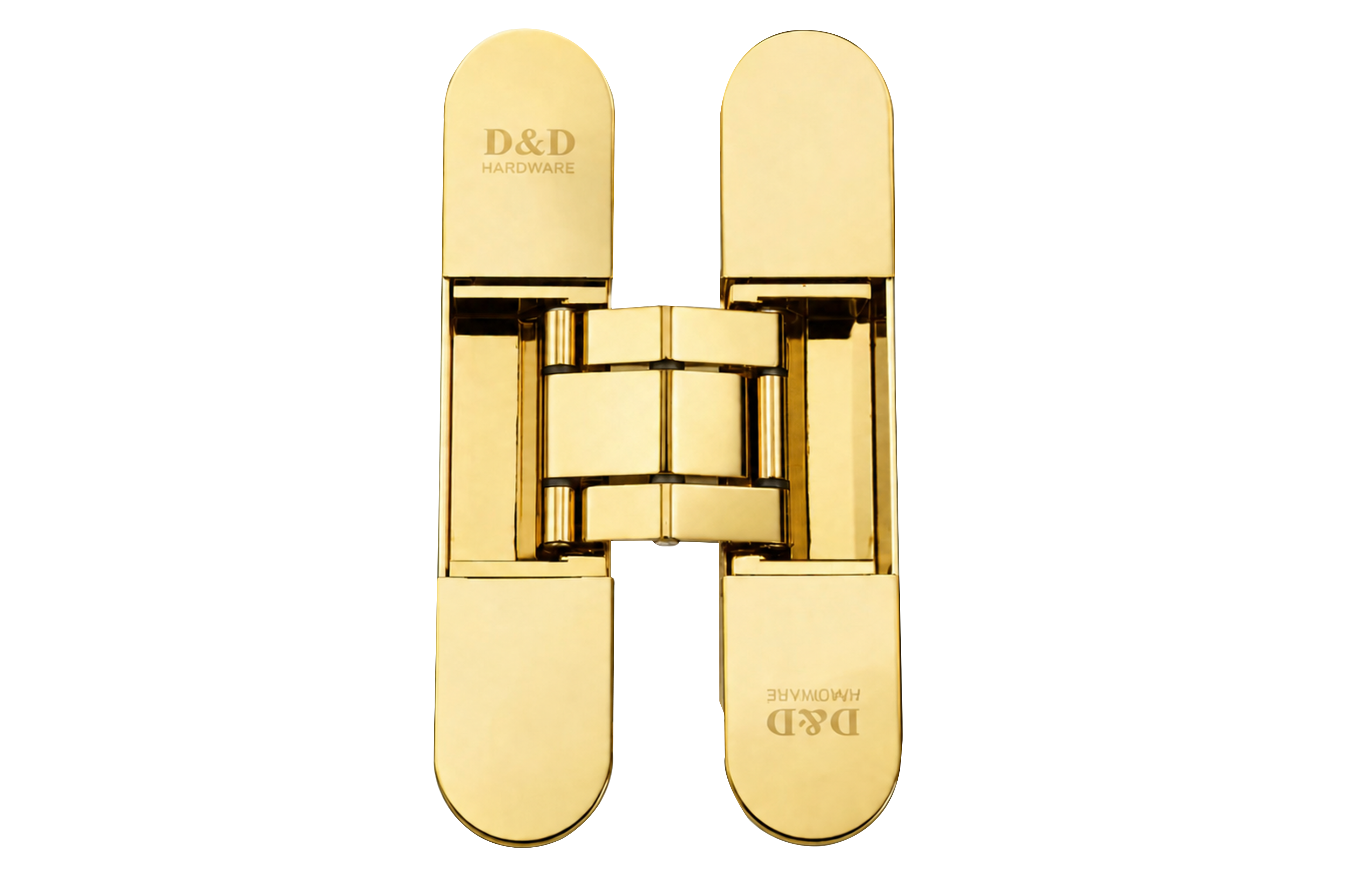

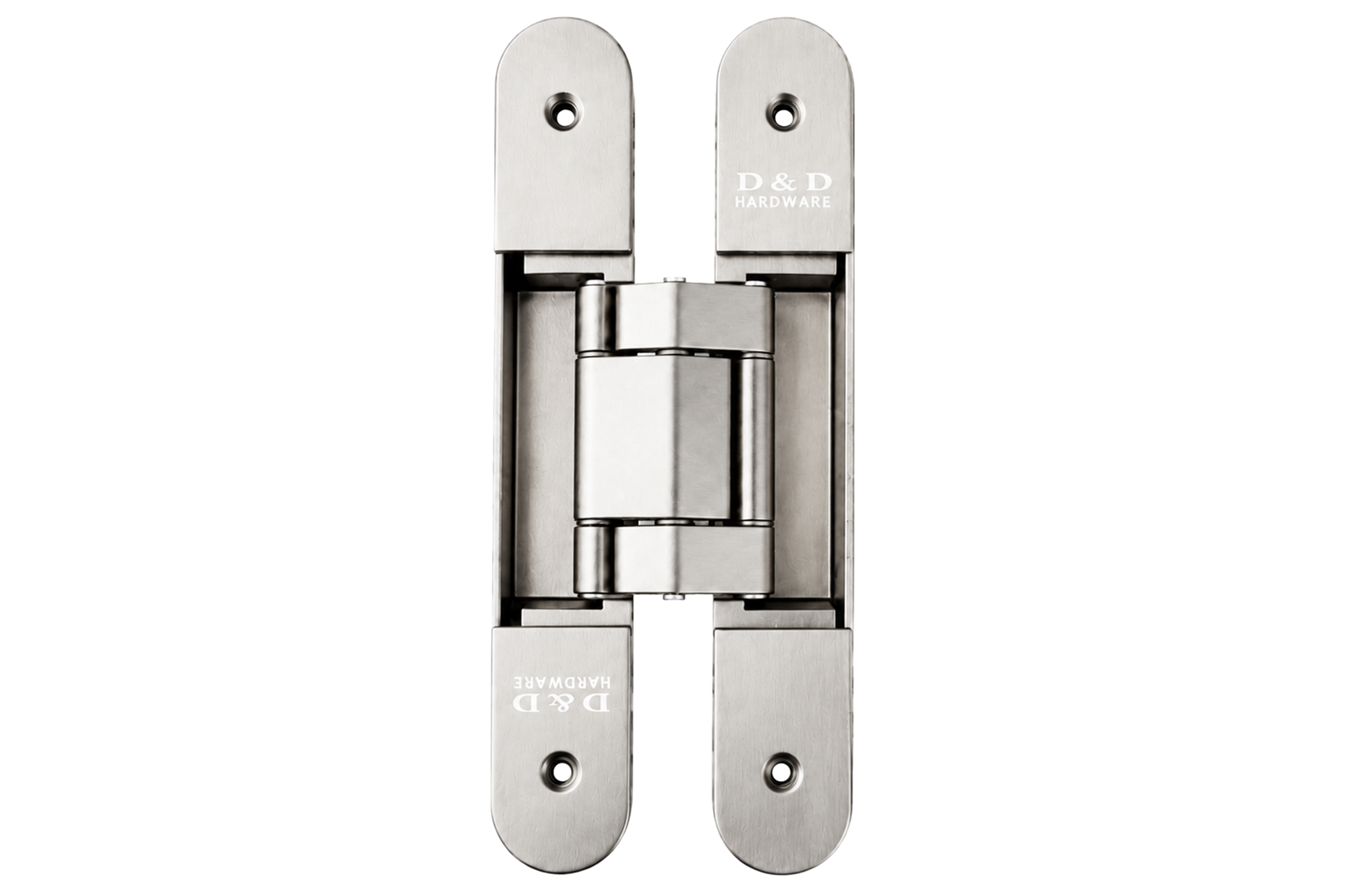

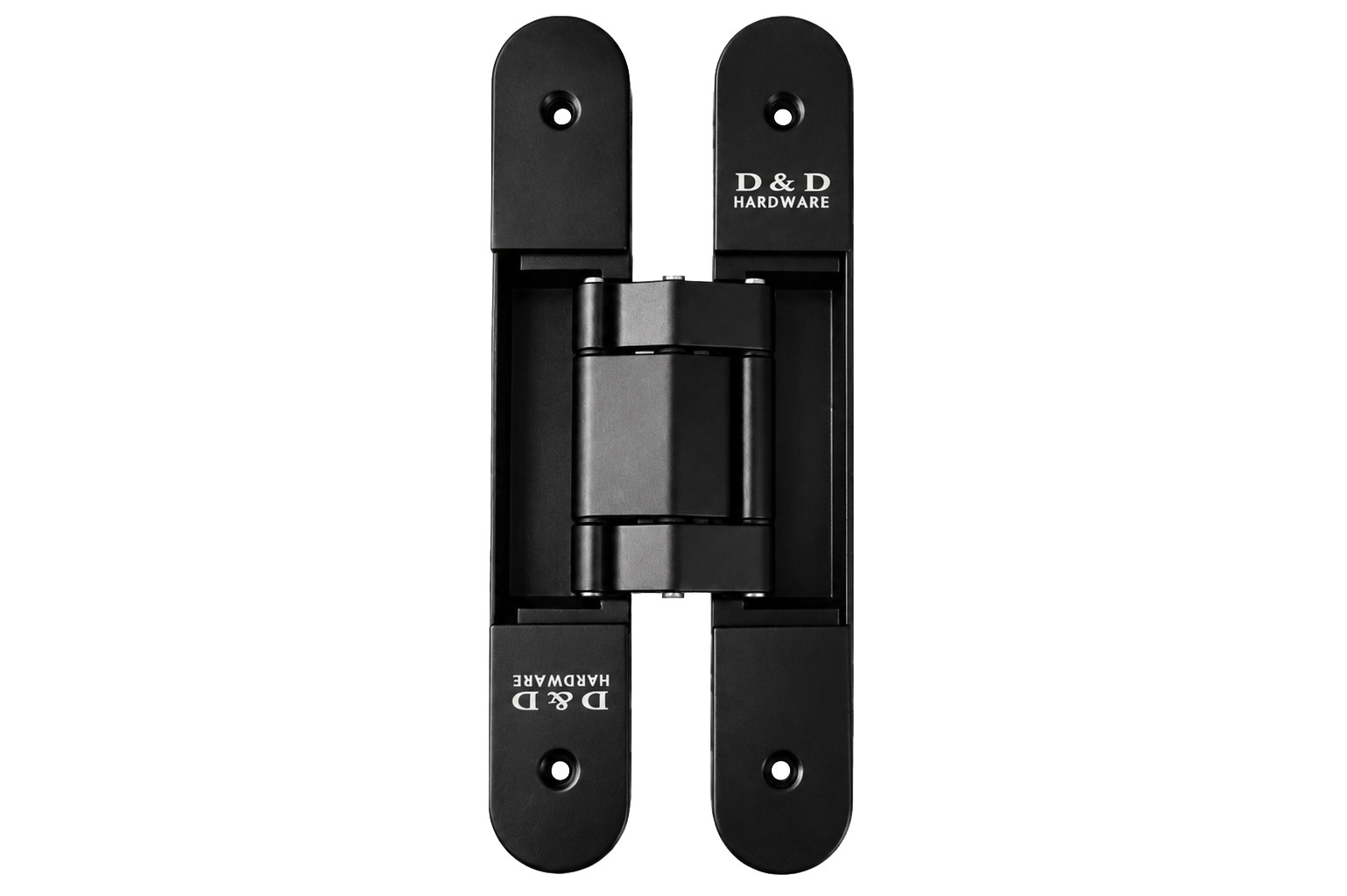

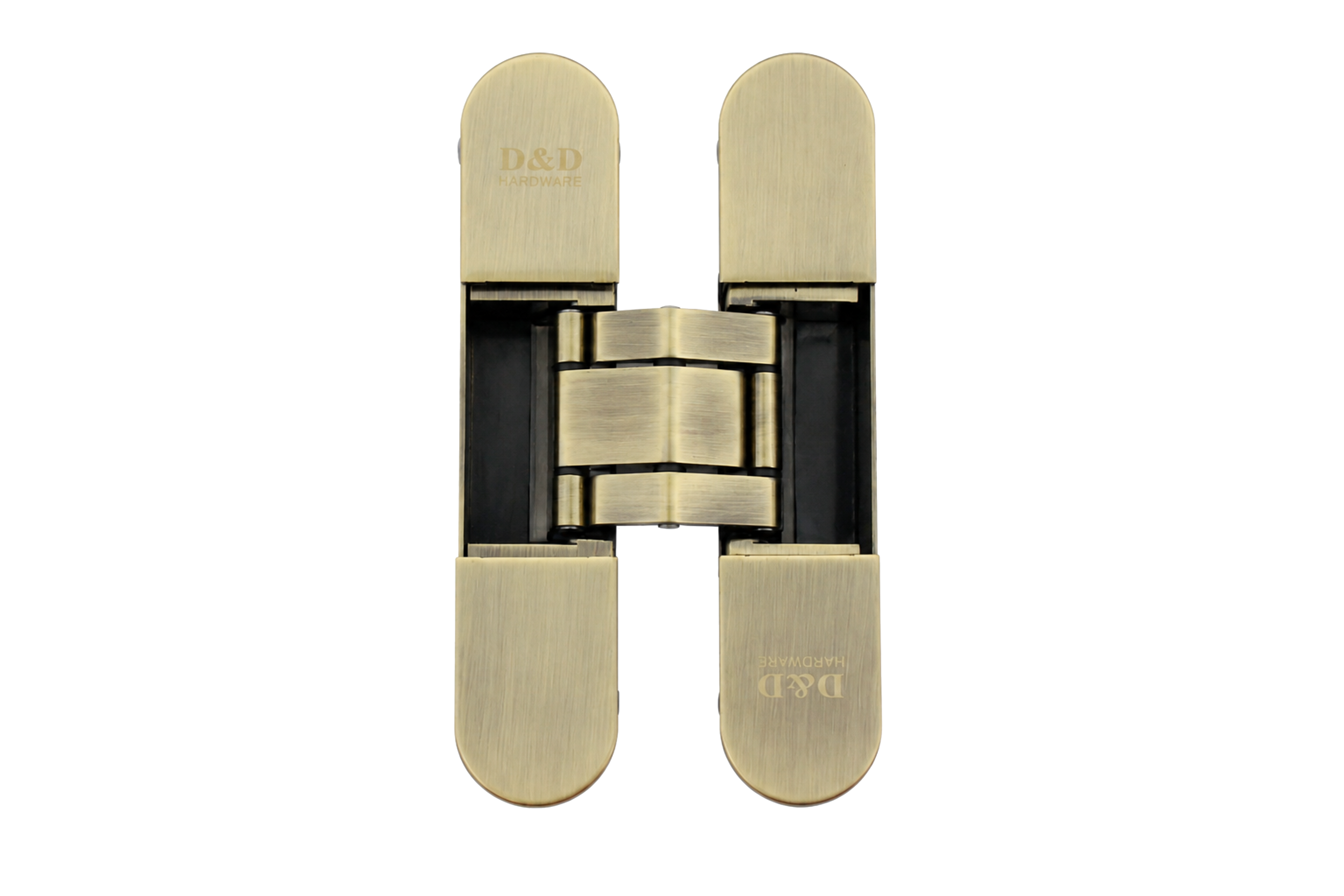

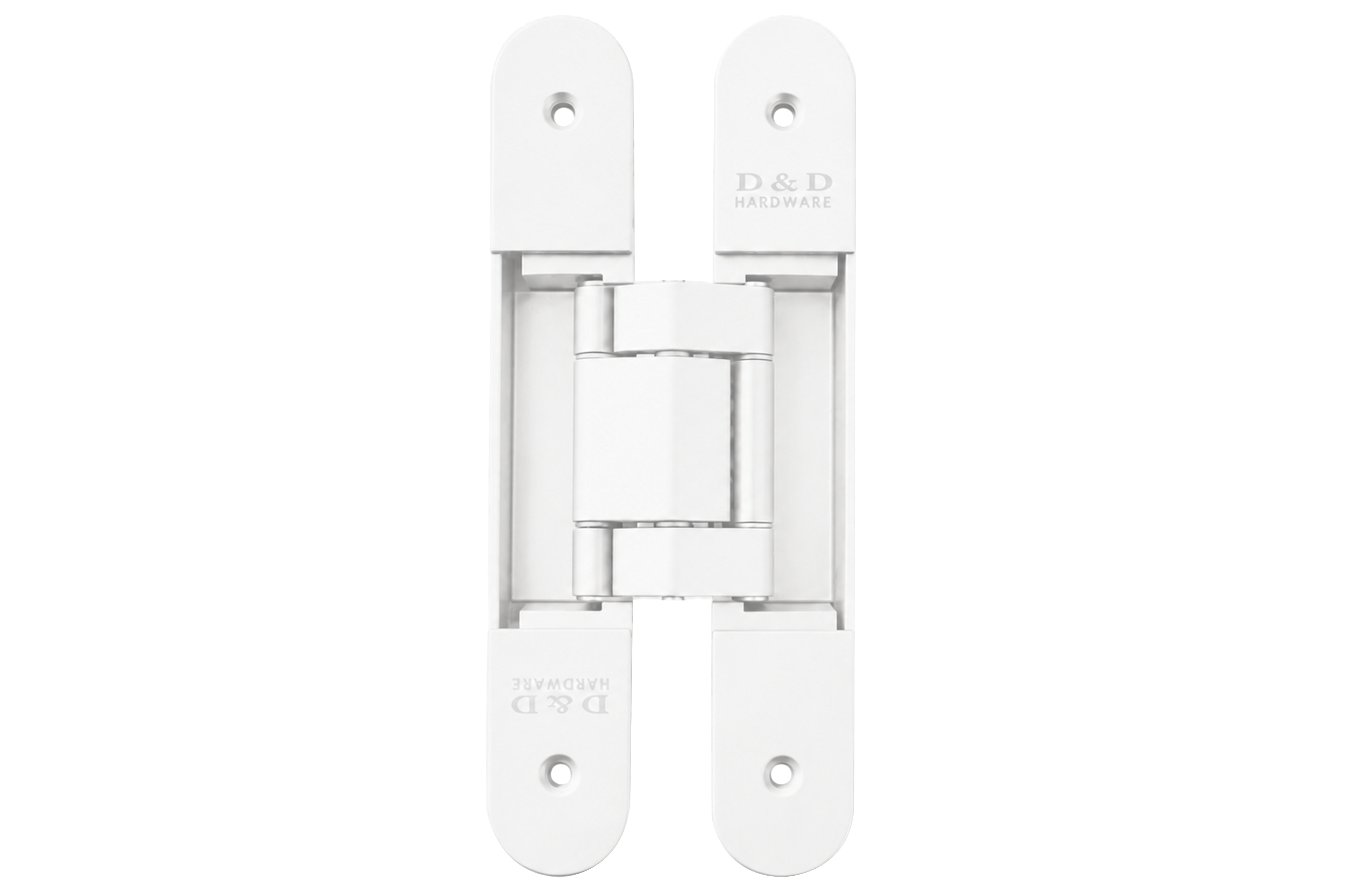

D&D Hardware has engineered the DDCH008 and DDCH011 series specifically to solve the operational bottlenecks faced by door manufacturers. By integrating full 3D adjustability with uncompromising metallurgical strength, we deliver a solution that protects your profit margins post-installation.

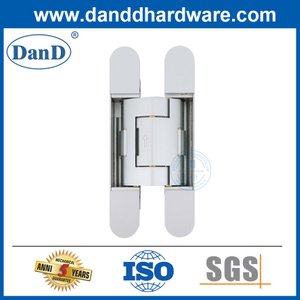

Traditional hinges require removing a 100kg+ metal door to correct minor frame misalignments. Our 3D adjustability allows single-person alignment while the door remains hung, cutting labor time by up to 50%.
Building settlement inevitably causes door sag. Instead of costly warranty repairs involving door removal, facility managers can re-align the door in minutes using a standard Allen key.
Stop sourcing different hardware for different markets. With dual UL 10C and European CE certifications, a single hinge inventory allows you to bid on projects across North America and Europe.
In the commercial construction industry, specifying non-certified hardware for fire door assemblies is not merely a compliance risk—it is a potential life-safety hazard. Every component in a fire-rated door system must be independently verified to perform under extreme conditions. D&D Hardware's concealed hinges carry both UL (North American) and CE (European) certifications, enabling fire door manufacturers to serve global markets with a single, trusted product line.
Positive pressure fire test for door assemblies
200,000 cycles durability test
Fire rated 132 minutes
Corrosion resistance 48 hours

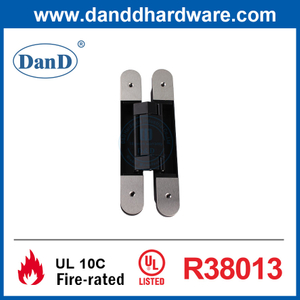

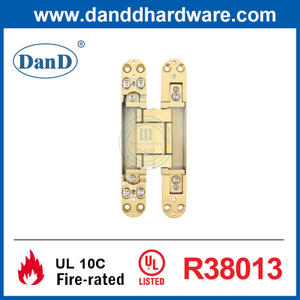

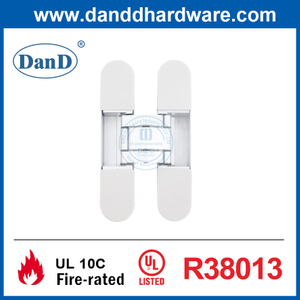

The UL 10C standard subjects door assemblies to a positive pressure fire test, simulating real-world fire conditions where pressure differentials drive heat and smoke through any weakness in the barrier. D&D Hardware's concealed hinges are proudly UL Listed under File NO. R38013, providing fire-rated metal door manufacturers with the independent, third-party verification required for code compliance across North America and international markets that recognize UL certification.
This certification assures building owners, architects, and authorities having jurisdiction (AHJs) that the hinge will maintain structural integrity, keep the door properly positioned, and preserve the fire barrier's effectiveness throughout the rated duration.
For projects governed by European building regulations, our concealed hinges deliver a comprehensive suite of CE-marked certifications that address durability, fire resistance, and environmental resilience:
BS EN1935 — 200,000 Cycles Durability Test: Commercial doors in high-traffic environments endure relentless daily use. This certification proves our hinges maintain full mechanical function and alignment precision after 200,000 complete open-close cycles under specified load conditions—translating to decades of reliable service in demanding environments.
EN1634 — Fire Rated 132 Minutes: Our hinges have been tested in accordance with EN1634 and demonstrated the ability to maintain the fire door assembly's integrity for 132 minutes. This exceeds the common 120-minute requirement, providing an additional safety margin for building occupants during evacuation.
EN1670 — Corrosion Resistance 48 Hours: Passing the 48-hour neutral salt spray test confirms that our hinges resist degradation from moisture, humidity, and chemical exposure. This is particularly important for installations in coastal regions, industrial facilities, and buildings with aggressive cleaning protocols.
Cost-cutting on raw materials inevitably leads to hinge failure, door sag, and ruined fire seals. D&D Hardware utilizes a specific metallurgical combination to balance tensile strength with manufacturing economics.
It eliminates the need to remove heavy fire doors (often weighing up to 120kg) from their frames to correct alignment issues. Installers can achieve perfect vertical, horizontal, and depth tolerances using a simple Allen key, reducing labor time by up to 50% and virtually eliminating costly post-installation call-backs due to building settlement.
Both series hold dual international certifications: UL 10C positive pressure fire rating (File NO. R38013) for the North American market, and European CE certifications including EN1634 (Fire Rated 132 mins), BS EN1935 (200,000 cycles durability), and EN1670 (Corrosion Resistance 48 hours).
This specific metallurgical combination provides the optimal balance of strength, precision, and cost-efficiency for concealed applications. The Zinc Alloy main body ensures high tensile strength to support doors up to 120kg, while the precision Aluminium Alloy connecting components ensure frictionless operation. It allows us to deliver a highly durable, certified product at a more competitive factory-direct price point than full stainless steel alternatives.
MOQ varies by model and customization requirements. For standard products, we offer flexible order quantities to accommodate both project-based orders and ongoing supply agreements. Contact our sales team at sales@danddhardware.com for specific MOQ information and volume pricing.
