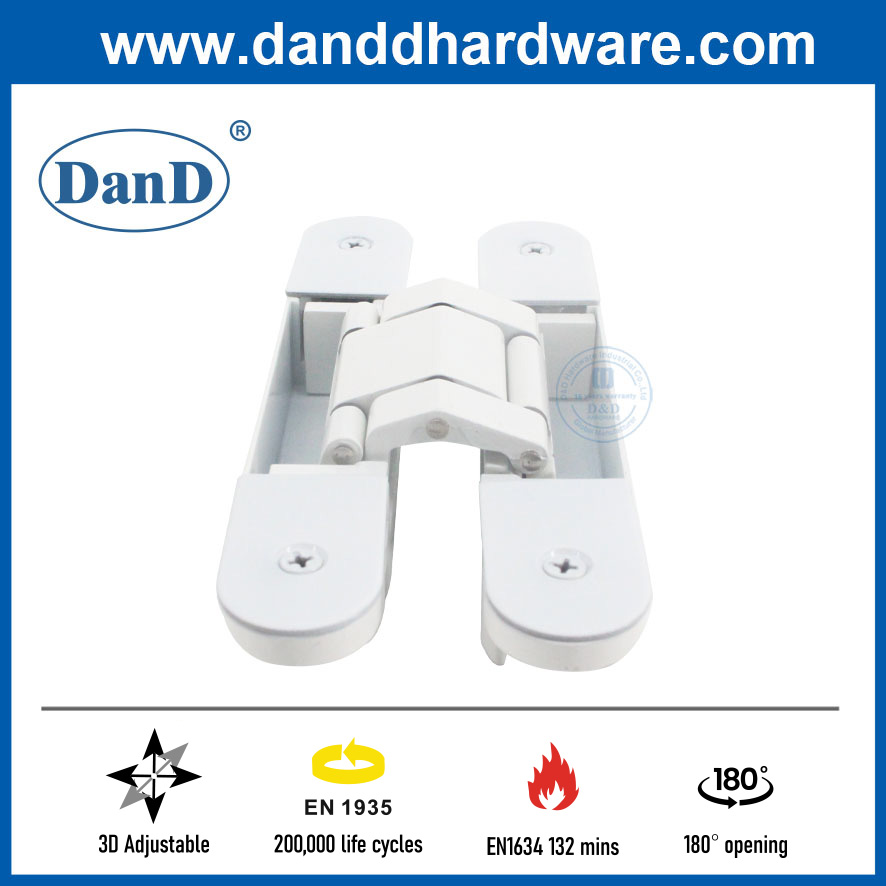

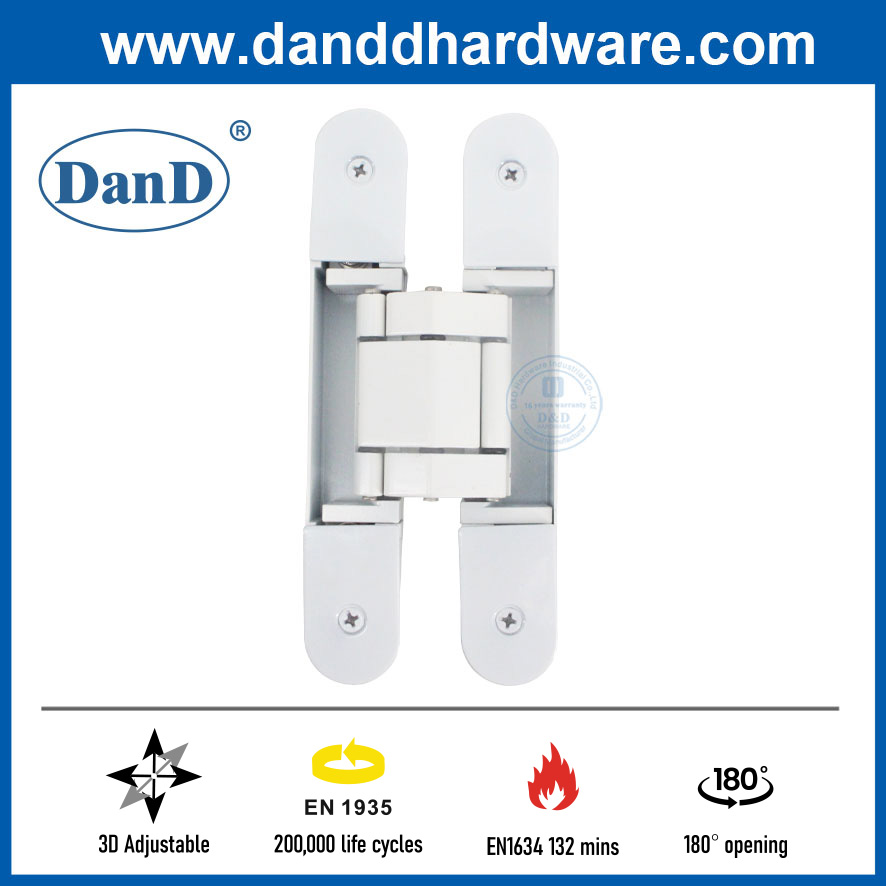

The hidden door hinge main body is made by a single-piece zinc alloy die-casting process. It has passed the authoritative certification of EN 1935 with 200,000 cycle durability tests and EN 1634-1 with 132-minute fire resistance. The 3D hidden door hinge features anti-corrosion properties, precise three-dimensional adjustment, and a concealed aesthetic design. It is suitable for commercial spaces with high foot traffic and fire-prone scenarios. With its dual core performance, the fire rated concealed hinge redefines the safety standards for door control hardware and provides a long-lasting and reliable security barrier for buildings. For further information, please contact us.
Product Overview
Product name
EN1935 European Hinges 3D Fire Rated Hidden Door Hinges in White Color
Product Model
DDCH008-G40
Certification
EN1935 200,00 cycles test, EN1634 fire rated 132mins
Material
Zinc Alloy body, stainless steel/plastic cover
Color
Silver, Black, Golden, AB, AC, etc.
Suitable for
Wooden Door, Metal Door, Steel Door, Interior Door, Outer Door ,Folding Door etc.
Packaging & Shipping
MOQ
500 Pieces
Package
One pair/white box or color box or Blister card in Standard export carton
Sample time
5-7 working days
Production lead time
30-35 days
Shipping Port
Jiangmen , China / Shenzhen , China .
Contact us
<template class="visibility">
The hidden door hinge main body is made by a single-piece zinc alloy die-casting process. It has passed the authoritative certification of EN 1935 with 200,000 cycle durability tests and EN 1634-1 with 132-minute fire resistance. The 3D hidden door hinge features anti-corrosion properties, precise three-dimensional adjustment, and a concealed aesthetic design. It is suitable for commercial spaces with high foot traffic and fire-prone scenarios. With its dual core performance, the fire rated concealed hinge redefines the safety standards for door control hardware and provides a long-lasting and reliable security barrier for buildings. For further information, please contact us.
Product Overview
Product name
EN1935 European Hinges 3D Fire Rated Hidden Door Hinges in White Color
Product Model
DDCH008-G40
Certification
EN1935 200,00 cycles test, EN1634 fire rated 132mins
Material
Zinc Alloy body, stainless steel/plastic cover
Color
Silver, Black, Golden, AB, AC, etc.
Suitable for
Wooden Door, Metal Door, Steel Door, Interior Door, Outer Door ,Folding Door etc.
Packaging & Shipping
MOQ
500 Pieces
Package
One pair/white box or color box or Blister card in Standard export carton
Sample time
5-7 working days
Production lead time
30-35 days
Shipping Port
Jiangmen , China / Shenzhen , China .
Contact us
</template>
Side Adjustment ( Horizontal )
· Adjust The Adjusting Spindles Using A 4mm ( 0.157" )
· Allen KeyTurn Side Adjustment Screw Counterclockwise For Increasing
The Air Gap Max.
· 3mm ( 0.118" ) On The Locking Side
· Turn Side Adjustment Screw Clockwise For Decreasing
The Air Gap Max.
· 3mm ( 0.118" ) On The Locking Side
Height Adjustment ( Vertical )
· Slightly Loosen All Four Clamping Screws On All Hinges.
· Adjust The Vertical Position Of The Door
· Turn The Lower Height Adjustment Screw Clockwise For Raising The Door
Turn The Lower Height Adjustment Screw Counterclockwise For Lowering The Door
Note: Before Raising The Door, MakeSure That The Upper Adjustment Screw ls Loosened.
· Retighten The Clamping Screws On All Hinges
Depth Adjustment ( ln / Out )
· Slightly Loosen The Fixing Screws
· Align The Door To The Desired Compression
· Retighten The Clamping Screws
· All Adjustment Can Be Performed With a 4mm ( 0157") Allen Wrench.
<template class="visibility">
Side Adjustment ( Horizontal )
· Adjust The Adjusting Spindles Using A 4mm ( 0.157" )
· Allen KeyTurn Side Adjustment Screw Counterclockwise For Increasing
The Air Gap Max.
· 3mm ( 0.118" ) On The Locking Side
· Turn Side Adjustment Screw Clockwise For Decreasing
The Air Gap Max.
· 3mm ( 0.118" ) On The Locking Side
Height Adjustment ( Vertical )
· Slightly Loosen All Four Clamping Screws On All Hinges.
· Adjust The Vertical Position Of The Door
· Turn The Lower Height Adjustment Screw Clockwise For Raising The Door
Turn The Lower Height Adjustment Screw Counterclockwise For Lowering The Door
Note: Before Raising The Door, MakeSure That The Upper Adjustment Screw ls Loosened.
· Retighten The Clamping Screws On All Hinges
Depth Adjustment ( ln / Out )
· Slightly Loosen The Fixing Screws
· Align The Door To The Desired Compression
· Retighten The Clamping Screws
· All Adjustment Can Be Performed With a 4mm ( 0157") Allen Wrench.
</template>
D&D Hardware specialized in Stainless Steel hardware products for Wooden Doors& Metal Doors, such as Door Locks, Door Hinge, Lever Handles, Door Closer, Panic Exit Device, Door stopper, Flush Bolt, etc.
The Stainless Steel Euro Door Hinge that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE EN1125
6. Door Closer – CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Door Viewer - UL Listed UL 10C Fire Rated R41286
9. Glass Hardware / Bathroom Hardware / Barn Door Hardware
<template class="visibility">
D&D Hardware specialized in Stainless Steel hardware products for Wooden Doors& Metal Doors, such as Door Locks, Door Hinge, Lever Handles, Door Closer, Panic Exit Device, Door stopper, Flush Bolt, etc.
The Stainless Steel Euro Door Hinge that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE EN1125
6. Door Closer – CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Door Viewer - UL Listed UL 10C Fire Rated R41286
9. Glass Hardware / Bathroom Hardware / Barn Door Hardware
