The hinge, an important component of the door, is related to its function and service life. With the increasing variety of functions, hinges come in a variety of specifications, but it is also important to ensure the safe use of hinges after retrofitting or replacement. Let's find out how to install door hinges and what to look for.
1.Preparation of the instruments

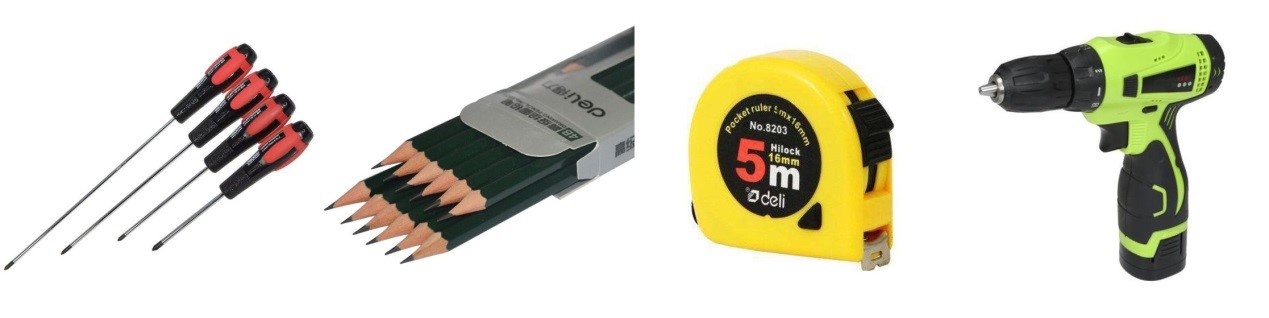

Prepare special tools for installation before installation, such as measuring tape/level, line drawing positioning of the carpenter's pencil, carpentry openings for/drill hole, fixed with screw driver, etc.
2. Set a position
The weight of the different door sizes affects the degree of force on the hinges and the smoothness of their work. Therefore the correct match needs to be made. It is also important to pay attention to the size of the hinge blades, which should be wider than the thickness of the door by all means.
Based on the known height and thickness of the door, draw a reasonable distribution of the hinges (see above). To measure the width and thickness of a single hinge, use a tool to dig a pit for the hinge in the door frame. Note: the size of the pit is the length of the single hinge, the thickness of the single hinge x x (width of the single hinge - 2 mm). The 2mm width is cut to prevent friction with the door frame when opening and closing the door.
3. Check the hinges and the location of the pit
Place the monolithic plate page into the slot and check that the surface of the pp board is flush with the surface of the door (door).
4, Tighten hinges

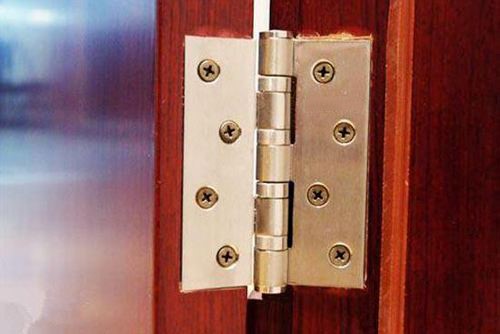

When fixing the hinges with screws, the screws should be kept perpendicular to the door panel and door surface; if the screws are skewed, they may produce extrusion between the hinges and affect the service life of the door.
General hinges can be adjusted six times, alignment, up and down about two doors is moderate, the cupboard door to debug the most ideal effect is better, installed after the close of clearance generally is 2 mm.
Open the door hinge installation considerations
1, pay attention to the installation position and quantity
Theoretically the greater the spacing between the two hinges, the stronger the load-bearing capacity, but of course also to consider the reality of the situation, the heavier the household door can use three hinges, generally with two door hinges.
Also note that the hinge cannot installed in the corner of the window fan body tenon it, to install in Windows and doors best fan is 1/10 of the merits, and avoid the distribution of three split, can be set on two of the next, and avoid door leaf to tilt.
2, to prevent falling fan
Which produces a pendant fan is refers to the doors and Windows installation gap gradually increase above and below the gap had narrowed to switch bad, serious when still can fall off.
Usually the cause of this situation may be due to choose the specification of the hinge is too small, or no use of form a complete set screw.
3, grasp the gap distance
The gap between the hinges and the door panel must be grasped, otherwise the appearance is unsightly. The door panel crack is normally 3 to 5 mm and expansion joints should be made.
4, ensure parts matching
Hinge slot with hinge high, wide and thick matches.Hinge screws, fasteners, whether they are connected to form a complete set.Hinge connection should match the box, fan material, such as steel frame used in the wooden door hinge, with one side for the welding of steel frame connections, and wooden door connected on one side of the door is wood screw fixation.
5, fan axis should be the same vertical line
When installation, shall ensure that the same door hinges on the shaft in the same vertical line, from door to door to play up.
