Escape Exit - Swing Type Double Wood Door without Overlap- Non-Fire Rated – European Standard
Security, safety,function and convenience are the foundation of door hardware that architects, builders, and designers, and end users expect from D and D Hardware. D and D door hardware is manufactured to meet the needs of commercial building. D and D Hardware can provide complete door hardware solutions for your Double Wooden Door.
Door design considerations mainly as below:
1, Where the building and inner door located
2, Direction of the flow of people in the building
Main concern points for this configuration are:
1, Safety
Door opening & closing description:
Outside lever trim retracts latch bolt. Key outside locks or unlocks lever.
Inside rim & vertical rod exit hardware always free for egress.
This configuration is suitable for below applications:
School | Air-port Building | Government Building | Hotel |
5-stars Hotel | Museum | Elderly House | Exhibition Center |
Stadium | Hospital | High-end office Building | Office Building |
Station |
Associated door hardware
01 HANGING - Hinge-DDSS001-CE
D&D 4x4x3.0-2 ball bearing butt hinge can be in grade 201/304/316 stainless steel material, square corner, template drilled, button tipped five knuckles, Conforming to EN1935 standard, EN1634 certified (260 minutes fire rated), with CE Mark, suitable for use on fire/non-fire rated/ smoke check doors up to 120 kg, with suitable screw pack.

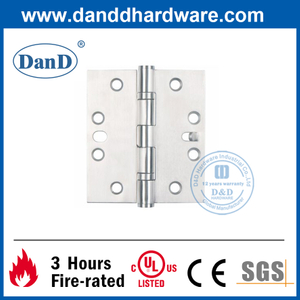

02 HANGING & SECURING - Hinge-DDSS015
D&D 4x4x3.0-2 ball bearing security hinge can be in grade 201/304/316 stainless steel material, square corner, template drilled, button tipped five knuckles, suitable for doors up to 120 kg, with suitable screw pack.
03 OPERATING & SECURING - Lever trim-DDPD012 (EN 1634)
D&D lever trim, in grade 304 stainless steel/Zinc material, SSS/Silver finish, with key to lock or unlock Cylinder from the outside, conforming to CE standard, EN1634 certified (2 hour fire rated), suitable for use on fire/non-fire rated/ smoke check doors , with suitable screw pack.
04 SAFETY – Vertical Rod Exit Device DDPD003 (CE)
D&D Rim Exit Device- half-length pressing touch bar with deadlocking latch bolt, non-handed, inside always free to exit by pressing the bar, suitable for doors width from 650mm to 1000mm, door thickness from 44.5mm to 50mm, standard door height is 2100mm (door higher than standard, please contact D&D), suitable for use of External locking attachment. Confirming to EN1125 standard, EN1634 certified (60 minutes fire rated), suitable for use on fire/non-fire rated/ smoke check doors, with suitable screw pack.
05 SAFETY – Vertical Rod Exit Device DDPD004 (CE)
D&D Vertical Rod Exit Device- half-length pressing touch bar with deadlocking latch bolt, non-handed, inside always free to exit by pressing the bar, suitable for doors width from 650mm to 1000mm, door thickness from 44.5mm to 50mm, standard door height is 2100mm (door higher than standard, please contact D&D), suitable for use of External locking attachment (such as lever trim). Conforming to EN1125 standard, EN1634 certified (60 minutes fire rated), suitable for use on fire/non-fire rated/ smoke check doors, with suitable screw pack.
06 PROTECTING – Dust proof socket-DDDP002
D&D Dust proof socket, in stainless steel 304 material, matt finish, size dia25x39mm, for dia 13mm bolt.
Suggestion: If there is a security requirement, can equip with a self-closing door closer and a door coordinator.
07 CONTROLING – Door closer-DDDC017
D&D adjustable power size 3-4, suitable for max door width from 950mm to 1100mm, suitable for max door weight from 60kg to 80kg, size L248xW44.5xH72mm, in aluminum material silver finish, EN 1154 standard, EN1634 certified (120 minutes fire rated), parallel arm, non-hold open function, adjustable closing and latching speed, standard top jamb, push side installation, suitable for fire /non-fir rated doors, packed with suitable screw pack.

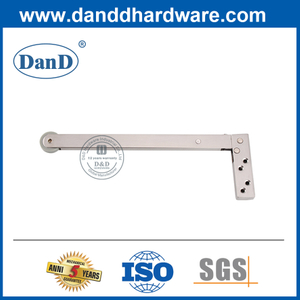

08 ANCILLARY – Door Coordinator-DDDR002-A
D&D universal door coordinator for double doors, size 252x88mm, stainless steel 201/304 material, SSS finish, non-handed, roller arm stops the active door from closing before the inactive door. Used with door closer to make sure the doors are closing properly and completely, with suitable screw pack.
D and D can assist you find the correct Door Hardware Solution according to your building type, use requirements, the location of the door and other factors.
Please advise your requirement so we can send solution for you.
