Hidden doors have captured imaginations for centuries—from secret passages in medieval castles to modern panic rooms and wine cellars. Whether you're designing a bookshelf that swings open to reveal a home office or creating a concealed entrance to your man cave, choosing the right hidden door hinge makes all the difference between a smooth, impressive reveal and a clunky disappointment.
The success of any hidden door project hinges entirely on selecting hardware that can handle the weight, provide smooth operation, and remain completely invisible when the door is closed. Unlike standard door hinges that are designed to be seen, hidden door hinges must bear substantial loads while staying completely out of sight.
This guide will walk you through the most effective hinge options for hidden doors, helping you choose the perfect hardware for your secret entrance project.

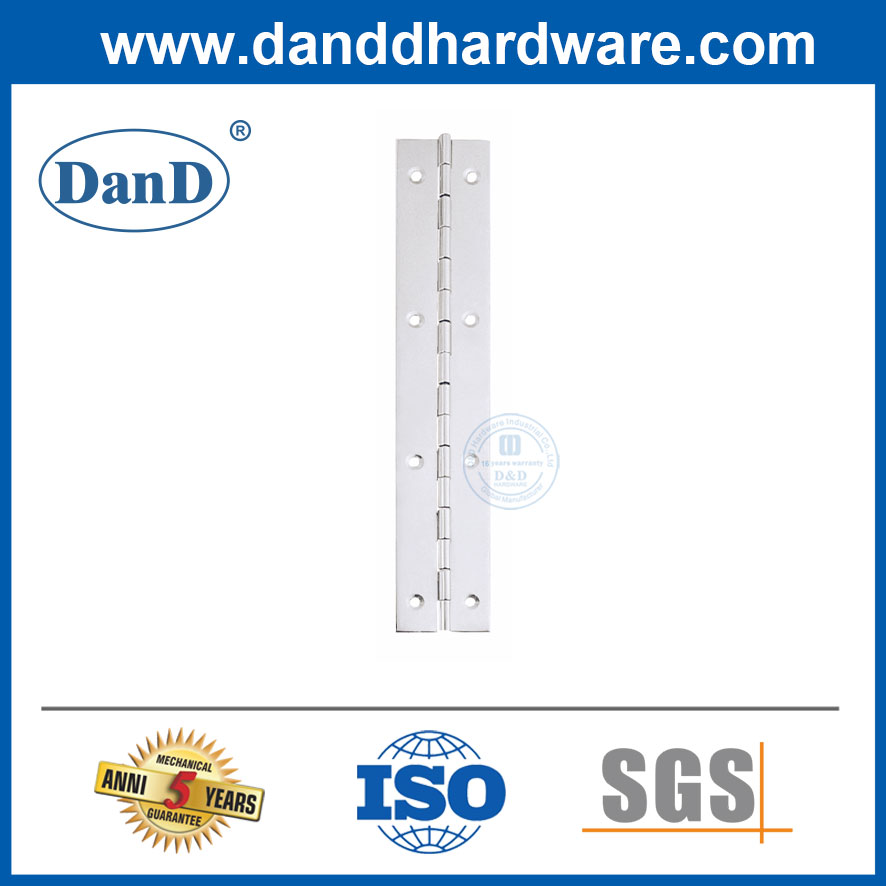

Piano hinges, also known as continuous hinges, represent one of the most popular choices for hidden door applications. These lengthy hinges run the entire height of the door, distributing weight evenly across the entire frame.
The primary advantage of piano hinges lies in their exceptional weight-bearing capacity. A quality piano hinge can support doors weighing several hundred pounds, making them ideal for heavy bookshelf doors or thick wooden panels. The continuous design eliminates stress points that plague traditional three-hinge systems.
Installation requires precise mortising into both the door and frame, but the result is a nearly invisible hinge line that disappears when the door closes. Piano hinges work particularly well for doors that need to open 180 degrees, allowing the hidden door to lie flush against an adjacent wall.
However, piano hinges do have limitations. They require significant clearance space and won't work for doors that need to open more than 180 degrees. The long hinge also makes future adjustments more challenging compared to individual hinge systems.
European cabinet hinges, commonly called cup hinges or concealed hinges, offer unmatched adjustability and a completely hidden profile. These sophisticated hinges consist of two parts: a cup that mortises into the door and an arm that attaches to the frame.
The major benefit of European hinges is their three-dimensional adjustability. You can fine-tune the door position up and down, in and out, and side to side even after installation. This adjustability proves invaluable when creating hidden doors that must align perfectly with surrounding surfaces.
European hinges also provide excellent weight capacity, with heavy-duty models supporting doors up to 100 pounds per hinge. Most hidden door applications require multiple hinges, so total weight capacity easily reaches 300-400 pounds.
The downside involves complexity and cost. European hinges require precise drilling for the cup holes, and quality hinges command premium prices. They also limit door thickness to standard cabinet dimensions, typically 3/4 inch to 1-1/4 inches.

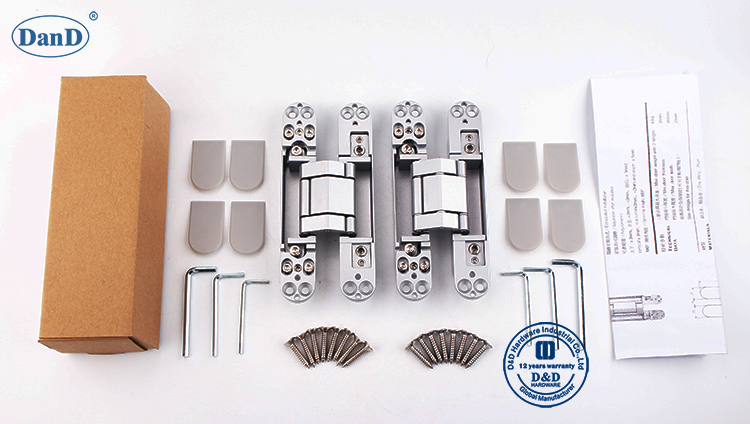

Soss invisible hinges represent the gold standard for completely hidden hinge systems. When properly installed, these hinges become absolutely invisible from both sides of the door, even when partially open.
The ingenious design features interlocking leaves that mortise completely into both the door and frame. When closed, no hinge hardware remains visible. When opening, the mechanical linkage allows smooth 180-degree operation without any visible hardware.
Soss hinges excel in high-end applications where aesthetics matter most. They work beautifully for hidden doors in upscale homes, commercial spaces, or anywhere the illusion must remain perfect. The precision engineering provides smooth, quiet operation for years.
The primary drawbacks include cost and installation complexity. Soss hinges cost significantly more than other options and require extremely precise mortising. Any installation errors result in poor operation or visible gaps. Additionally, weight capacity is more limited compared to piano hinges, typically maxing out around 200-250 pounds total for a multi-hinge installation.
Pivot hinges offer unique advantages for specific hidden door applications. Instead of side-mounting like traditional hinges, pivot systems mount at the top and bottom of the door, allowing rotation around a vertical axis.
The standout benefit of pivot hinges is their opening range. Quality pivot systems can achieve 360-degree rotation, allowing hidden doors to swing completely around. This capability works wonderfully for rotating bookshelf doors or cylindrical hidden entrances.
Pivot hinges also handle substantial weight loads. Heavy-duty floor-mounted pivot systems can support doors weighing 500 pounds or more. The weight transfers directly to the floor rather than stressing the door frame.
Installation complexity represents the main challenge with pivot systems. Floor-mounted pivots require precise floor preparation and often need structural modifications. Ceiling-mounted systems demand careful alignment and strong mounting points. These systems also typically cost more than traditional hinge approaches.
Selecting the optimal hidden door hinge depends on several key factors that will determine both performance and satisfaction with your finished project.
Weight considerations should guide your primary selection. Light doors under 50 pounds can use European cabinet hinges or smaller Soss hinges. Medium-weight doors from 50-150 pounds work well with heavy-duty European hinges or standard Soss systems. Heavy doors over 150 pounds require piano hinges or pivot systems.
Opening requirements also influence hinge selection. Standard 90-degree openings work with any hinge type. Doors needing 180-degree openings require piano hinges, Soss hinges, or pivots. Full 360-degree rotation demands pivot systems.
Installation skill level matters significantly. European cabinet hinges offer the most forgiving installation, while Soss hinges demand precision. Piano hinges require intermediate skills, and pivot systems need advanced installation capabilities.
Budget constraints will narrow your options. European hinges provide the best value, piano hinges cost moderately, Soss hinges command premium prices, and pivot systems vary widely based on specifications.
Door thickness limitations apply to certain hinge types. European hinges work best with standard cabinet thicknesses, while piano hinges and Soss systems accommodate various door thicknesses. Pivot systems handle any reasonable door thickness.
Regardless of which hidden door hinge you choose, proper installation techniques ensure smooth operation and long-lasting performance.
Start with precise measurements and marking. Use a quality square and measuring tape to mark hinge locations accurately. Any measurement errors will compound during installation, leading to binding doors or visible gaps.
Invest in proper mortising tools. Sharp chisels, quality routers, and appropriate drill bits make clean, precise cuts. Rough mortises lead to poor-fitting hinges and compromised operation.
Test-fit everything before final installation. Dry-fit all components and check door operation before applying adhesive or driving final screws. Making adjustments after permanent installation becomes much more difficult.
Pay attention to door weight distribution. Heavy hidden doors require proper support beyond just hinges. Consider adding bearing surfaces, guide wheels, or additional structural support as needed.
Hidden doors represent the perfect blend of functionality and mystery, but their success depends entirely on choosing appropriate hardware. Piano hinges excel for heavy, traditional applications. European cabinet hinges provide adjustability and value. Soss invisible hinges deliver ultimate concealment. Pivot systems enable dramatic opening ranges.
Consider your specific requirements—door weight, opening needs, installation skills, and budget—to select the hidden door hinge system that will serve your project best. With proper planning and quality hardware, your secret entrance will provide years of reliable operation and endless fascination for guests who discover your hidden door.
