Hidden doors capture our imagination like few other home features. Whether you're creating a secret study, concealing a safe room, or simply adding an element of mystery to your space, the right hinges make all the difference between a clever illusion and an obvious fake wall. The success of your hidden door project hinges entirely—pun intended—on selecting hardware that can support the weight while remaining completely invisible.
Choosing the wrong hinges for your hidden door can turn your dream project into a nightmare. Heavy doors will sag, lightweight hinges will fail, and poorly designed mechanisms will give away your secret with every squeak and groan. This comprehensive guide will walk you through everything you need to know about hidden door hinges, from understanding the different types available to selecting the perfect option for your specific application.

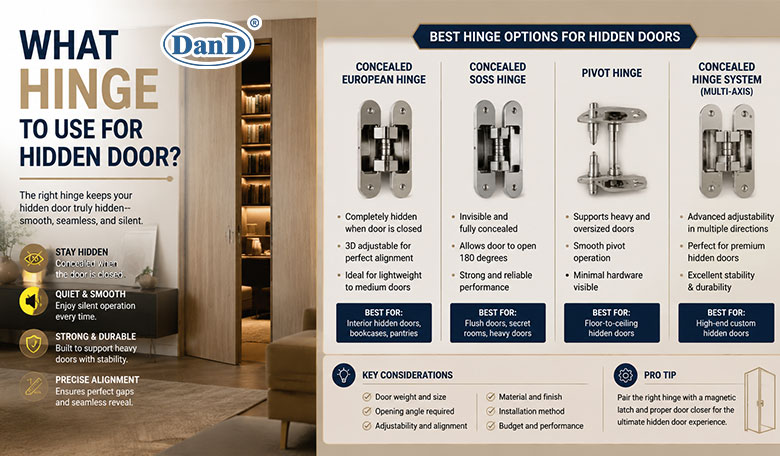

Hidden door hinges come in several distinct categories, each designed for specific applications and door weights. Understanding these differences will help you make an informed decision for your project.
Piano hinges, also called continuous hinges, run the entire length of your door. These workhorses excel at supporting heavy hidden doors, particularly bookcase doors loaded with actual books or thick wooden panels. The weight distribution across the full door height prevents sagging and ensures smooth operation even after years of use.
Piano hinges work exceptionally well for hidden doors because they can be recessed into both the door and frame, making them nearly invisible when properly installed. Look for heavy-duty versions rated for at least 200 pounds when building substantial hidden passages.
Pivot hinges represent the gold standard for truly invisible hidden doors. These sophisticated mechanisms mount at the top and bottom of your door, allowing it to rotate on a vertical axis without visible hardware on the door face. High-end pivot hinges can support doors weighing up to 440 pounds while maintaining perfect alignment.
The key advantage of pivot hinges lies in their ability to create doors that appear completely flush with the surrounding wall. When combined with invisible latching mechanisms, pivot-hung hidden doors become nearly impossible to detect.
European hinges, commonly used in kitchen cabinetry, offer excellent concealment for smaller hidden doors. These hinges mount completely inside the door frame, making them invisible when the door is closed. While they typically support lighter loads than piano or pivot hinges, they're perfect for hidden panels or smaller access doors.
The soft-close feature available on many European hinges adds a professional touch to your hidden door, preventing the telltale slam that might give away your secret.
Traditional butt hinges remain viable for hidden doors when properly concealed. Heavy-duty versions can support substantial weight, and when mortised correctly into both door and frame, they become nearly invisible. The key lies in precise installation and careful attention to gap management around the door perimeter.
Understanding weight capacity is crucial for hidden door success. An undersized hinge will fail catastrophically, potentially causing injury and certainly ruining the illusion of your secret passage.
Before selecting hinges, calculate your door's total weight including any decorative elements. A solid wood door measuring 32" x 80" x 1.75" weighs approximately 90 pounds. Add books to a bookcase door, and you're easily looking at 200+ pounds.
Don't forget to factor in the weight of any artwork, mirrors, or other camouflage elements you'll mount on the door face. A large framed painting can add another 20-40 pounds to your total.
Always select hinges rated for at least 150% of your door's actual weight. This safety margin accounts for dynamic loads during opening and closing, as well as any additional weight you might add later. A 200-pound door should use hinges rated for at least 300 pounds combined capacity.
The type of hidden door you're building significantly impacts your hinge selection and installation approach.
Bookcase doors present unique challenges due to their substantial weight and the need to maintain the illusion of a functional bookshelf. Piano hinges work exceptionally well here, providing the weight capacity and full-length support needed for heavy, book-laden shelves.
Consider the door's center of gravity when loading books. Place heavier volumes toward the hinge side to reduce stress on the hardware and improve balance during operation.
Mirror doors require careful hinge selection to prevent the glass from cracking due to frame flex. Pivot hinges excel in this application because they provide multiple support points and maintain perfect door alignment throughout the swing cycle.
The reflective surface of mirrors can actually help conceal hinge hardware by creating visual confusion about the door's edges and mounting points.
Simple panel doors offer the most flexibility in hinge selection. European hinges work beautifully for lighter panels, while piano hinges handle heavier wooden panels with ease. The key lies in matching the hinge capacity to your specific door weight and desired swing angle.
Proper installation separates successful hidden doors from obvious failures. These professional techniques will ensure your secret passage operates flawlessly for years to come.
Measure twice, cut once applies doubly to hidden doors. Mark your hinge locations carefully, ensuring they align perfectly between door and frame. Use a story stick or template to maintain consistency across multiple hinge positions.
For pivot hinges, precise floor and header mounting is crucial. Even slight misalignment will cause binding and premature wear.
Hidden doors require tighter tolerances than regular doors to maintain their invisible appearance. Aim for consistent 1/8" gaps around the door perimeter, adjusting your hinge mortises accordingly.
Weather stripping can help seal gaps while providing some adjustment capability, but don't rely on it to compensate for poor hinge installation.
Ensure your door frame can handle the additional stress of a heavy hidden door. This might require reinforcing the frame with additional blocking or using longer screws that penetrate into structural framing members.
For pivot hinges, the header support is particularly critical. A sagging header will throw off the entire door alignment and cause operational problems.
Hidden door hinges work harder than regular door hardware due to their concealed nature and often heavier loads. Proper maintenance ensures years of reliable, silent operation.
Establish a regular lubrication schedule using appropriate lubricants for your hinge type. Light machine oil works well for most applications, while white lithium grease provides longer-lasting protection in high-stress situations.
Avoid over-lubrication, which can attract dust and debris that will eventually cause operational problems.
Check your hidden door alignment periodically, especially during the first year after installation. Small adjustments can prevent major problems and extend the life of your hardware significantly.
Most quality hinges include adjustment mechanisms that allow for fine-tuning without complete reinstallation.
Creating the perfect hidden door requires careful planning, quality hardware, and precise installation. The hinges you choose will determine whether your secret passage operates smoothly for decades or becomes a constant source of frustration and maintenance headaches.
Start by accurately calculating your door weight and required swing angle. Match these requirements to hinges with appropriate capacity and features. Don't cut corners on hardware quality—your hidden door is only as good as the hinges supporting it.
Remember that the best hidden door hinge is the one you never notice. When friends and family walk past your secret passage without giving it a second glance, you'll know you've chosen the right hardware and installed it properly.
