DDAL33
D and D Hardware
UL Listed
Stainless Steel 304
SSS, PSS, PVD, AB, AC ,MB
Silver,Black, Golden, Antique Brass, Antique Copper
Wooden Door, Metal Door
T/T, L/C, D/P, Western Union
Jiangmen /Guangzhou / Shenzhen , China
200,000/Month
| SKU: | |
|---|---|
| Availability: | |
| Quantity: | |

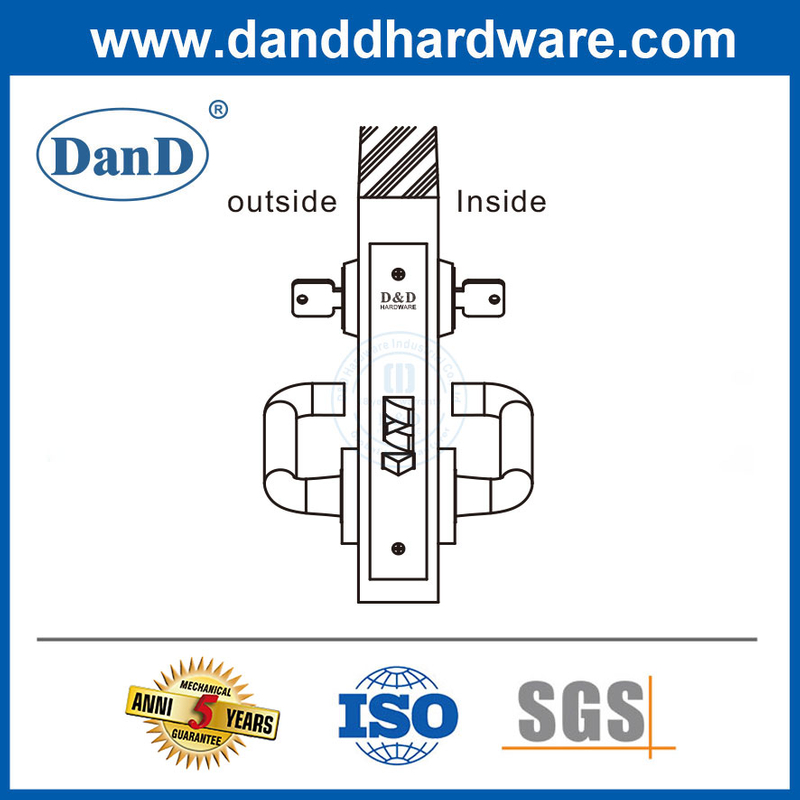

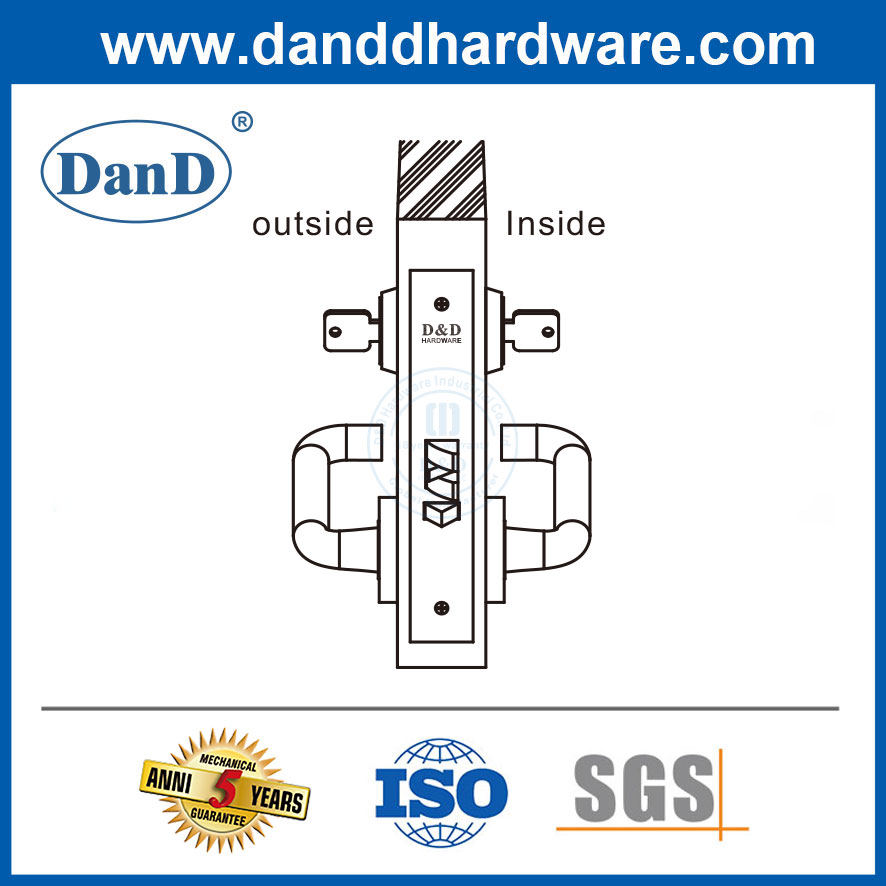

The latch bolt on an Intruder Dead Bolt Lock is normally operated by the lever handle from either side of the door, providing convenient everyday access for authorized users. However, this free lever operation can be disabled when the outside lever is locked using a key from either the inside or the outside. Once the outside lever is locked, it becomes completely inoperative, preventing anyone from using the exterior handle to retract the latch bolt. This feature is a core anti-intrusion measure, specifically designed to resist forced entry attacks that target the outside lever, such as lever-pulling or lever-bending techniques commonly used by intruders to gain unauthorized access.
The dead bolt on this lock is retracted exclusively by a key from either the inside or the outside, ensuring that the primary security locking point can only be disengaged through proper key authorization. When the inside lever is operated, it simultaneously retracts both the latch bolt and the dead bolt while also unlocking the outside lever, allowing occupants to freely exit the room at any time. This integrated operation means that a single action from inside fully opens the door and restores outside lever functionality, ensuring rapid egress in an emergency while maintaining a high level of security against external intrusion when the lock is engaged.
Product Overview
Product name | Heavy Duty Security Anti-Intruder Dead Bolt Lock for Commercial Exterior Doors-DDAL33 |
Product Model | DDAL33 |
| Color | Silver, Black, Golden, Antique Brass, Antique Copper |
Lockcase | Heavy Gauge Stainless Steel for Corrosion Resistance |
Deadbolt | Solid Casting SUS304, Project 1"(25.4mm) |
Latchbolt | Solid Casting SUS304, Project 3/4"(19mm),Anti-Friction Two Pieces and Can be Reversible |
Auxiliary Latchbolt | Stainless steel |
Forend | Stainless steel Grade 304 |
Strike | Stainless steel Grade 304, Non-Handed |
Door Thickness | 45mm to 55mm As Standard |
Backset | 2-3/4" (70mm) |
Center to Center | 3-5/8" (92mm) |
Door Handing | Left Hand and Right Hand |
Packaging & Shipping
MOQ | 100PCS |
Package | 1pc /poly bag,white box / color inner box,Standard export Carton . |
Sample time | 5-7 working days |
Production lead time | 30-35 days normally |
Shipping Port | Jiangmen , China / Shenzhen , China |
Contact us
The Stainless Steel Euro Door Hinge that we offer are tested to the most stringent international industry standards, including BS EN, CE, UL, ANSI and BHMA, Suitable for Education, Healthcare, Hospitality, Residential and Commercial applications.
More door hardware items include:
1.Door Hinge- UL 10C R38013 & BHMA/ANSI Grade1/2 & CE EN1935 Grade 13
2.Concealed Hinge- BS EN1935, EN1634 Fire Rated & UL Listed, UL 10C Fire Rated
3.Door Lock - CE EN12209 UKCA Fire Rated & UL 10C R40901
4. Door Handle- BS EN 1906 Grade 4, EN1634 Fire Rated
5. Panic Exit Device- UL 10C R40486 & UL305 SA45817 & CE EN1125
6. Door Closer – CE BS EN 1154 & UL 10C R40717
7. Lock Cylinder-BS EN1303, EN1634 Fire Rated
8. Glass Hardware / Bathroom Hardware / Barn Door Hardware
