Template Drilled Hinge

Views: 0     Author: D and D Hardware     Publish Time: 2022-08-30      Origin: D and D Hardware


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

what is template drilled hinge

Template drilled hinges originated because of the need for absolute accuracy of the fixing holes in metal doors and frames.

This allows for doors and frames to be pre-prepared because hinges produced by different manufacturers will have the drillings in exactly the same positions.

For template pattern, the hinge manufacturer uses the positioning of the screw holes shown in the standard ANSI 156.7 (American National Standards Institute), unless otherwise stated.

All template pattern hinges are pressed out to ensure accuracy.

The center of the screw hole to the outside edge of the flap is the critical dimension (vertically and horizontally).

Template drilled hinges can be used on hardware doors as well as metal doors.

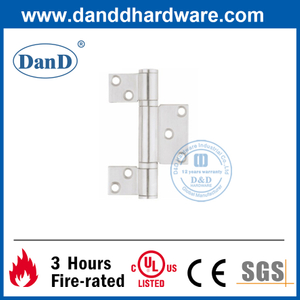

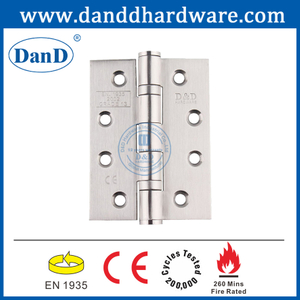

SS UL HingeCE Door Hinge
