When designing commercial spaces, architects and builders often face a difficult compromise between safety and aesthetics. Heavy fire doors and bulky hardware provide crucial protection, but they can easily disrupt the clean, minimalist lines of modern interiors. Modern engineering has provided an elegant solution to this problem.
Fire-rated concealed hinges, often referred to as invisible hinges, offer the perfect balance of form and function. These highly specialized components are engineered to blend seamlessly into doorways. Because they remain completely hidden when the door is closed, they preserve the smooth aesthetic of the surrounding architecture.
Beyond their visual appeal, these hinges perform a vital safety role. They provide strictly tested fire protection that ranges from 20 minutes to three hours. This durability ensures that fire doors maintain their structural integrity during emergencies, containing flames and smoke to allow for safe evacuation.

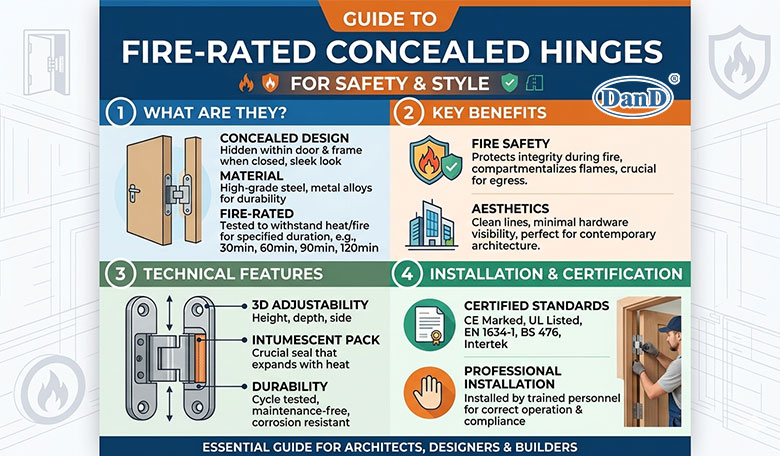

Understanding the specifications, standards, and capabilities of these invisible hinges is essential for anyone involved in commercial construction or facility management. This guide covers everything you need to know about selecting the right hardware, understanding safety certifications, and finding a reliable fire rated concealed hinge manufacturer for your next project.
Concealed hinges operate using a complex multi-pivot system that allows the door to swing open up to 180 degrees. Unlike standard butt hinges, which have a visible barrel and pin sitting outside the door frame, concealed hinges are mortised directly into the door leaf and the frame.
Materials play a huge part in their performance. A high-quality fire rated concealed hinge is typically constructed from heavy-duty stainless steel or specialized zinc alloys. These metals are chosen for their exceptional resistance to extreme temperatures and their ability to bear heavy loads without warping. Depending on the specific model, these hinges can support door weights ranging from 50kg up to 200kg, making them suitable for both interior timber doors and heavy external metal security doors.
D&D Concealed Hinge-BS EN1935 200,000 cycles test, EN1634 Fire Rated 132mins, EN1670 Corrosion Resistance 48 hours.
One of the most significant engineering advancements in this hardware is 3D adjustability. Building settling and environmental changes can cause doors to fall out of alignment over time. Traditional hinges often require doors to be taken off their frames for shaving or shimming.
Modern 3D concealed hinges solve this by allowing precise mechanical adjustments across three different planes while the door remains hanging:
Vertical adjustment (Height): Adjusts the door up or down by +/- 2mm to clear floor obstructions.
Horizontal adjustment (Side): Moves the door left or right by +/- 2mm to ensure an even gap along the frame.
Depth adjustment (In/Out): Adjusts the door forward or backward by +/- 2mm for a perfectly flush finish against the wall.
Installing non-certified hardware on a fire door instantly voids its safety rating and violates building codes. When sourcing hardware, it is critical to verify that the components have been tested by independent laboratories.
The UL10C standard is the benchmark for positive pressure fire tests of door assemblies in North America. A hinge certified under UL10C has proven its ability to withstand intense heat and maintain the door's position for specific durations, typically up to 3 hours. This prevents the door from buckling or falling out of the frame, which would allow fire and toxic smoke to spread rapidly through a building.
In the European market, the EN1634 standard governs the fire resistance of door hardware. Hinges tested to this standard can provide certified fire resistance for up to 132 minutes. Additionally, the EN1935 standard tests the mechanical durability and lifecycle of the hinge. Premium hinges are subjected to grueling cycle tests, often enduring over 200,000 opening and closing cycles to guarantee decades of wobble-free operation.
To better understand why developers are making the switch, review this comparison of standard commercial hinges and concealed fire hinges.
Feature | Standard Fire Hinge | Fire-Rated Concealed Hinge |
|---|---|---|
Visibility | Barrel and pin visible on the outside | Completely invisible when the door is closed |
Aesthetics | Utilitarian, disrupts clean wall lines | Seamless, allows for flush door designs |
Adjustability | Limited; often requires removing the door | 3D adjustability (+/- 2mm in all directions) |
Security | Pins can sometimes be tampered with | Inaccessible to tampering when closed |
Fire Protection | 20 mins to 3 hours (with certification) | 20 mins to 3 hours (with certification) |
Opening Angle | Usually 90 to 180 degrees | Full 180-degree single action swing |
Finding the right supplier is just as important as choosing the right hinge model. A reputable fire door hinge manufacturer will provide comprehensive documentation, including cycle test reports and fire certification documents for all their products.

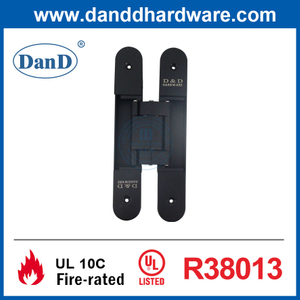

CE Door Hinge-BS EN1935 200,000 cycles test, EN1634 Fire Rated 192mins/260mins, EN1670 Corrosion Resistance 240 hours.
UL Door Hinge-UL/cUL UL 10C Fire Rated 3 Hours, File No.R38013 & ANSI/BHMA Grade1 & Grade 2
For large-scale commercial projects, working directly with an established fire rated concealed hinge manufacturer like D&D Hardware ensures you receive components that meet international compliance standards. With over 18 years of manufacturing experience and an ISO 9001 certified factory, D&D Hardware produces architectural hardware that meets CE, UL, ANSI, and BHMA standards. Their rigorous quality control and custom OEM/ODM solutions make them a preferred partner for global contractors outfitting healthcare facilities, educational institutions, and corporate office buildings.
Safety hardware does not need to compromise your architectural vision. By integrating fire-rated invisible hinges, you guarantee the structural safety of your building's emergency routes while maintaining a sleek, modern environment.
Always verify fire testing certificates and prioritize suppliers who offer 3D adjustable features for long-term maintenance ease. If you are ready to upgrade your commercial door hardware, consult with a certified fire door hardware specialist to identify the perfect concealed hinge configuration for your specific door weights and safety requirements.
For further information about door solution or door hardware, click here.
