A door closer is an essential piece of hardware that ensures doors close safely, securely, and quietly. Over time, you might notice issues like a door slamming too fast, not latching properly, or being overly difficult to open. Fortunately, most modern door closers are equipped with adjustable valves that allow you to fine-tune their performance. This guide will take you through the entire adjustment process.
Before you start adjusting any valves, it's vital to understand the context of the door.
If the door is a fire-rated or emergency exit door, it is part of a life-safety system. Incorrect adjustments can violate fire codes and create a hazardous situation during an emergency. In commercial settings, adjusting fire door closers often requires re-certification by a qualified professional. Look for a label on the door or the closer indicating that it is fire-rated.
Inspect the closer body, arm, and the door itself for any visible signs of damage, leaks, or corrosion. A faulty closer should be replaced rather than adjusted.
Most closers have the manufacturer and model number printed on the body. Knowing this information can help you find a specific manual online if needed. The most common types are overhead concealed closers (installed in the door frame header) and surface-mounted closers (mounted on the door or frame).

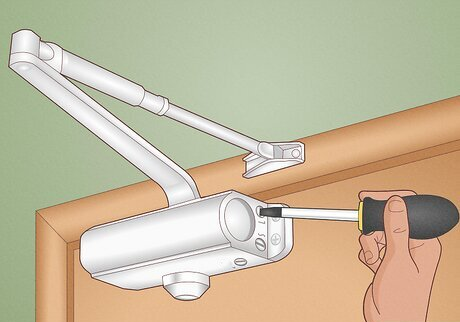

Most standard door closers have two or three adjustment valves, typically hexagonal (Allen key) holes that are labeled or color-coded. You will usually need a dedicated L-key (a small, L-shaped Allen key), which often comes with the closer. Using the wrong size key can strip the valves.

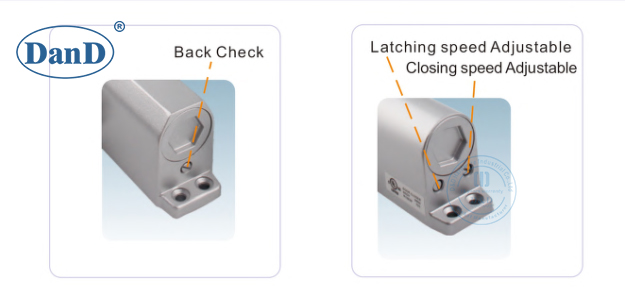

The three main valves control the following aspects:
This valve controls the speed of the door from the fully open position through most of its swing until it is about 15 degrees from closing. It is often the largest valve.
This valve controls the speed of the door during the last few degrees of closing (typically the last 5 - 15 degrees). It ensures that the door engages the latch smoothly and quietly without slamming.
Not all closers have this feature. If present, it controls the resistance and speed when the door is opened forcefully or thrown open. It acts as a cushion to prevent the door from swinging too fast and hitting the wall or other obstacles.
Turn the valve clockwise (to the right): This restricts fluid flow, slowing down the action and providing more resistance.
Turn the valve counterclockwise (to the left): This increases fluid flow, speeding up the action and providing less resistance.
Crucial Tip: Make adjustments in small increments, no more than a quarter-turn at a time. Then, open and close the door to test the effect. Making dramatic turns can render the door inoperable or cause internal damage to the closer.
Follow this logical sequence for the best results.
Fully open the door and let it close on its own. Observe its current behavior and identify what you want to change. Is it closing too fast or too slow? Does it fail to latch properly?
Problem: The overall swing of the door is too fast (it slams) or too slow (it doesn't close).
Solution: Locate the main speed valve. Make a small turn (1/8 to 1/4) clockwise to slow it down or counterclockwise to speed it up.
Test: Open the door and let it close. Repeat this process until the main swing feels controlled and natural.
Problem: The door slams shut violently in the final moment or creeps so slowly that it doesn't have enough energy to engage the latch.
Solution: Locate the latching speed valve. If the door is slamming, turn the valve clockwise a small amount to slow the final swing. If it's failing to latch, turn it counterclockwise a small amount to give it a bit more power.
Test: After each adjustment, let the door close. The ideal setting is a firm, positive, and quiet engagement with the strike plate.
Problem: The door swings open too easily and hits the wall or stops violently.
Solution: Locate the backcheck valve. Open the door forcefully. If it offers too little resistance, turn the valve clockwise to increase the cushioning effect. If the door is too hard to open wide, turn it counterclockwise.
Test: Force the door open quickly after each adjustment until it feels properly cushioned.
Once you are satisfied with each individual setting, operate the door several times at different speeds. Push it gently, let it go from a halfway point, and open it fully and forcefully. Ensure that it behaves correctly in all scenarios.

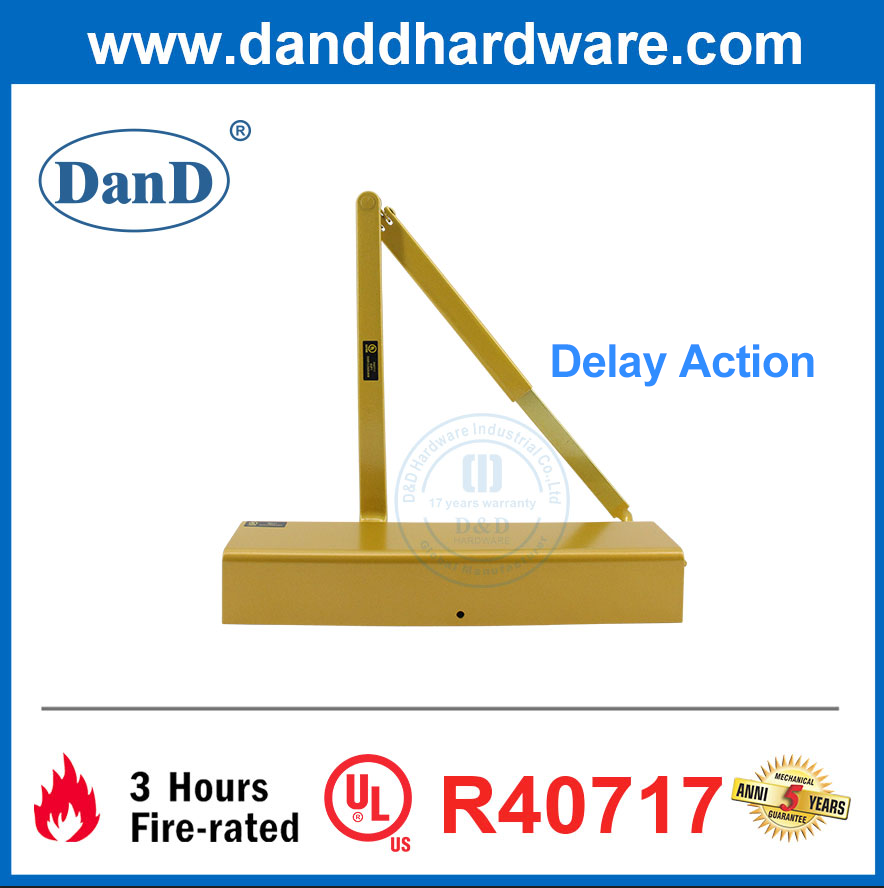

Some closers have a second arm connected to the main body via a slide mechanism. This controls the delayed action or sweep.
This feature allows the door to stay open for a few seconds after being opened to a certain point before beginning to close. It's useful in high-traffic areas. It's usually adjusted by a valve on the slide mechanism itself, following the same clockwise/counterclockwise rule.
Some closers are designed to hold the door open at a certain point (e.g., 90 or 110 degrees). To close it, you must pull it past the hold-open point. This is not typically adjustable and is a built-in function of the arm type.
The closer may be under-powered for the door's size and weight. Check the model number to ensure it's the correct grade (e.g., Grade 1 for heavy doors, Grade 3 for lighter ones). It could also indicate a loss of hydraulic fluid due to a leak, in which case the closer needs to be replaced.
The internal seals may be worn out, or the wrong size closer may be installed.
This almost always indicates that air has entered the hydraulic system, often due to a leak or the closer being installed upside down. The unit likely needs to be replaced.
If you see fluid around the valves or body, the internal seals have failed. The closer must be replaced immediately.
If you are ever unsure, especially when dealing with critical fire-rated doors, stop and call a professional door hardware consultant or locksmith. Proper door operation is not just a matter of convenience; it is a fundamental component of building safety, security, and accessibility. For non-critical interior doors, careful and minimal adjustments can easily restore perfect, quiet operation for years to come.

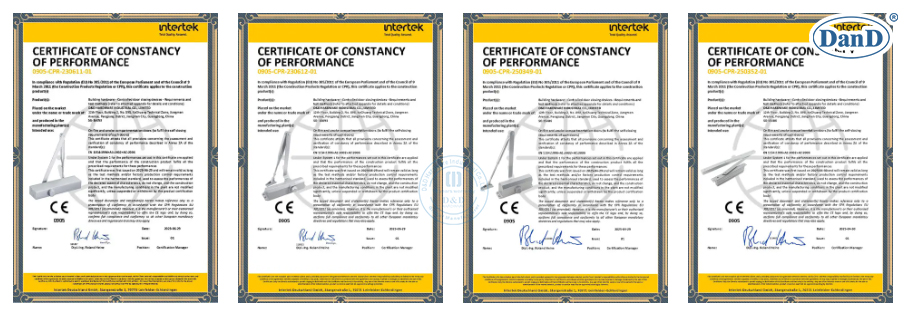

CE Door Closer - EN1154 500,000 cycles test, EN1634 fire rated 120mins/180mins, EN1670 corrosion resistance 96 hours.
