A door closer is a simple but vital piece of hardware, especially in a commercial or public building. It ensures doors shut securely behind people, maintaining fire safety, security, and climate control. But when it's not working correctly—slamming shut too quickly or closing too slowly—it can be both an annoyance and a safety hazard.
If you have a UL-listed door closer, you have a device certified for safety and performance standards. Adjusting it might seem like a job for a professional, but with the right guidance, it's a task you can often handle yourself. This guide will walk you through how to adjust your UL door closer, explaining what each valve does and how to fine-tune it for perfect operation.
Before you start turning screws, it’s helpful to understand the basic components and functions of your UL door closer. Most hydraulic door closers, including UL-certified models, have a similar design. They consist of a main body (the housing), an arm, and several adjustment valves.
These valves control the flow of hydraulic fluid within the closer's body, which in turn dictates the speed and force of the door's closing cycle. The key to a proper adjustment is knowing which screw controls which function.
Common adjustment valves on a UL door closer include:
· Sweep Speed: Controls the main closing speed of the door.
· Latching Speed: Controls the final few inches of the door's movement as it latches into the frame.
· Backcheck: Cushions the door when it's opened forcefully, preventing it from slamming against a wall.
The location of these valves can vary by manufacturer, but they are typically located on the side or top of the door closer body. They are often labeled with letters like "S" for Sweep, "L" for Latch, and "BC" for Backcheck.
Grab a flathead screwdriver or the appropriate Allen wrench for your model. Remember that small adjustments can make a big difference, so it's best to turn the screws in small increments—no more than a quarter-turn at a time.
The sweep speed determines how fast the door closes from its fully open position until the last few inches.
· If the door closes too fast: You'll want to slow it down. Find the sweep speed valve (usually marked with an "S"). Turn the screw clockwise in small increments. This restricts the hydraulic fluid, slowing the door's movement.
· If the door closes too slowly: You'll need to speed it up. Turn the sweep speed valve counter-clockwise. This allows more fluid to flow, increasing the closing speed.
After each adjustment, open the door fully and let it close to test the new speed. Repeat until you are satisfied. A good rule of thumb is that a door should take about 6-8 seconds to close from a 90-degree angle.
The latching speed controls the final part of the closing cycle, typically the last 10-15 degrees of travel. This is crucial for ensuring the door latches securely without slamming.
· If the door slams shut: The latching speed is too fast. Locate the latching valve (marked with an "L") and turn it clockwise to slow it down. This ensures the door clicks shut gently but firmly.
· If the door doesn't latch completely: The latching speed might be too slow, especially if it has to overcome air pressure or a stiff lock. Turn the latching valve counter-clockwise to give it a slight boost of speed just before it closes.
Test this adjustment multiple times to ensure the door latches every time without slamming. A properly adjusted latch is critical for fire doors to function correctly.

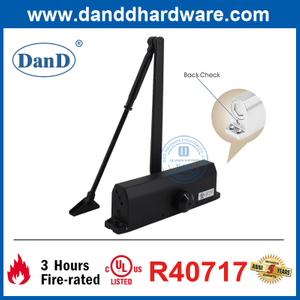

Not all door closers have a backcheck feature, but it's common on UL-rated models used in high-traffic areas. Backcheck provides resistance when the door is opened past a certain point (usually around 75 degrees), preventing it from being thrown open and damaging the wall or the door closer itself.
· If the door is hard to open or offers too much resistance: The backcheck is set too high. Find the backcheck valve (often marked "BC") and turn it counter-clockwise to decrease the resistance.
· If the door slams open against the wall: The backcheck is too weak or not engaged. Turn the backcheck valve clockwise to increase the cushioning effect.
Adjust the backcheck so that it provides a gentle buffer when the door is opened with force, but doesn't make it difficult to open under normal conditions.

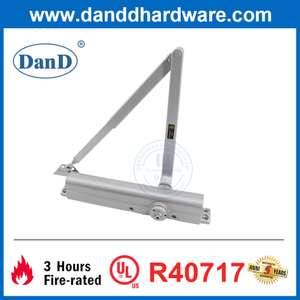

Some UL door closers have an adjustable spring, which controls the overall closing force. This is sometimes adjusted with a large nut at one end of the closer body.
· Increasing spring power: Turning the adjustment nut clockwise typically increases the tension, making the door harder to open but providing more force to close it. This can be necessary for heavy doors or in areas with significant air pressure.
· Decreasing spring power: Turning the nut counter-clockwise reduces tension, making the door easier to open. This is important for ensuring compliance with accessibility standards (like the ADA in the United States).
Important: Adjusting the spring power can significantly impact the sweep and latch speeds, so you may need to go back and fine-tune the other valves after changing the spring tension.
· Oil Leaks: If you see hydraulic fluid leaking from the closer body or seals, it's a sign that the unit is failing. An adjustment won't fix this. The door closer will need to be replaced.
· Valves are Unresponsive: If turning the screws has no effect, the seals inside might be worn out, or the fluid has leaked. This also indicates the need for a replacement.
· Grinding or Scraping Noises: This could be an issue with the arm or the main body. Check that all screws are tight and the arm is not bent or misaligned.
Once you have adjusted your UL door closer, it's a good practice to observe it for a day or two. Temperature changes can affect the viscosity of the hydraulic fluid, which may slightly alter the closing speed. A door that works perfectly in the morning might be a little slower or faster in the afternoon heat. A final, minor tweak might be necessary to get it just right.
Properly maintaining your door closers not only enhances convenience but also plays a critical role in building safety. By following these steps, you can ensure your UL door closer functions effectively and reliably for years to come.
