A properly adjusted door closer ensures your door swings shut smoothly, securely, and at just the right speed. If you've installed a UL 63Z0 16100 door closer—or inherited one in your building—you might be wondering how to fine-tune its performance. Maybe the door slams too hard, closes too slowly, or doesn't latch properly.
The good news? Adjusting this UL door closer is straightforward once you understand the adjustment valves and what they control. This guide will walk you through the process step by step, so you can achieve optimal door operation without calling in a technician.
The UL 63Z0 16100 is a hydraulic door closer designed to control the speed and force of a closing door. The "UL" designation means it meets safety standards set by Underwriters Laboratories, making it suitable for commercial and residential applications where fire safety and accessibility compliance matter.
This model typically features multiple adjustment valves that let you control:
· Sweep speed: How quickly the door moves through most of its closing arc
· Latch speed: The final push that helps the door latch securely
· Backcheck: Resistance when the door is opened too forcefully (not all models include this)
Understanding these functions is key to making the right adjustments.
Before you begin, gather these basic tools:
· Flathead or Phillips screwdriver (depending on your closer's adjustment screws)
· Step ladder (if the closer is mounted high)
· Patience and a willingness to test adjustments multiple times
You won't need specialized equipment. Most adjustments can be made with a standard screwdriver.

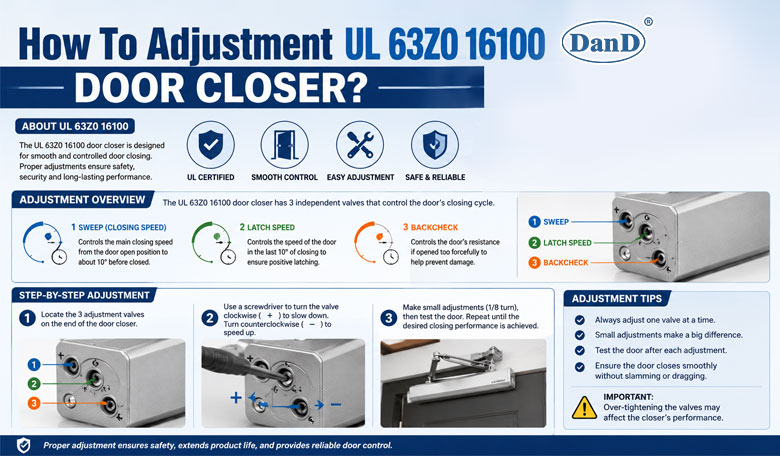

The adjustment valves on the UL 63Z0 16100 door closer are typically located on the body of the closer itself. They appear as small screws, often labeled or color-coded.
Common valve locations:
· Sweep valve: Controls the main closing speed
· Latch valve: Controls the final closing speed near the latch
· Backcheck valve: Controls resistance when opening (if equipped)
Refer to any manufacturer documentation if available, but most UL door closers follow a similar layout. The valves usually sit on the side or end of the closer body.
Before making any changes, observe how the door currently behaves. Open it fully and let it close on its own. Note:
· Does it close too fast or too slow?
· Does it slam at the end, or fail to latch?
· Is there too much resistance when opening?
This baseline helps you know which valve to adjust.
The sweep speed controls how fast the door moves through most of its arc. If the door closes too quickly or too slowly before reaching the latch point, this is the valve to adjust.
To slow down the sweep speed:
Turn the sweep valve clockwise (righty-tighty) in small increments—about a quarter turn at a time.
To speed up the sweep:
Turn the valve counterclockwise (lefty-loosey) in small increments.
After each adjustment, test the door by opening and releasing it. Make further tweaks as needed.
The latch speed controls the final few inches of door travel. If the door doesn't latch properly, or slams shut at the last moment, adjust this valve.
To slow down the latch speed:
Turn the latch valve clockwise.
To speed up the latch:
Turn the valve counterclockwise.
A properly adjusted latch speed ensures the door closes firmly enough to engage the latch without slamming.
Some models include a backcheck valve, which provides resistance when the door is opened beyond a certain point. This prevents damage from doors being flung open too forcefully.
To increase resistance:
Turn the backcheck valve clockwise.
To decrease resistance:
Turn it counterclockwise.
Test by opening the door quickly. You should feel gentle resistance that prevents it from hitting the wall or adjacent surfaces.
After making your adjustments, test the door multiple times. Open it from various angles and speeds to ensure consistent performance. Small tweaks—quarter turns at a time—make a big difference.
If the door still doesn't perform as expected, revisit each valve and make additional minor adjustments.
Cause: Sweep or latch speed is too fast.
Solution: Turn the appropriate valve clockwise to slow the closing speed.
Cause: Latch speed is too slow, or the door isn't closing with enough force.
Solution: Turn the latch valve counterclockwise to increase speed. Also check that the door isn't binding or misaligned.
Cause: Sweep speed is set too slow.
Solution: Turn the sweep valve counterclockwise to speed up the closing action.
Cause: Backcheck is set too high, or the closer is overly tensioned.
Solution: Turn the backcheck valve counterclockwise, or consult the closer's tension adjustment if applicable.
Cause: Over-tightening adjustment valves or a damaged seal.
Solution: Do not over-tighten valves beyond snug resistance. If you notice fluid leaking, the closer may need replacement or professional servicing.
To keep your UL door closer functioning smoothly:
Inspect regularly: Check for loose screws, leaks, or unusual noises every few months.
Clean the closer: Wipe down the body to remove dust and debris that could interfere with operation.
Avoid over-adjustment: Make small changes and test frequently. Over-tightening valves can damage internal components.
Lubricate sparingly: Most hydraulic closers are sealed units and don't require additional lubrication. Consult the manufacturer if maintenance is needed.
Regular upkeep extends the life of your closer and ensures reliable operation.
While most adjustments are DIY-friendly, some situations call for professional help:
· The closer leaks hydraulic fluid despite proper adjustment
· The door still doesn't close correctly after multiple adjustments
· The closer body is visibly damaged or worn
· You're unsure about your building's fire code or accessibility requirements
A qualified door hardware technician can assess the situation and recommend repair or replacement if needed.
Adjusting a UL 63Z0 16100 door closer doesn't require advanced technical skills—just a screwdriver, some patience, and a willingness to test and tweak. By understanding the sweep, latch, and backcheck valves, you can dial in the perfect closing speed for your door.
Start with small adjustments, test frequently, and remember that fine-tuning is an iterative process. With a little effort, you'll have a door that closes smoothly, securely, and exactly the way it should.
