A self-closing door hinge is a great convenience, automatically shutting the door behind you. This is especially useful for exterior doors, garage entry doors, or any door you want to keep closed for safety, temperature control, or privacy. Over time, however, the spring mechanism inside can lose tension, causing the door to close too slowly, not latch properly, or stop closing altogether.
Fortunately, adjusting the tension on most self-closing door hinges is a straightforward DIY project that requires only a few basic tools. There's no need to call a professional if you have a few minutes to spare. This guide will walk you through the process step-by-step, helping you restore your door's automatic closing function and ensure it latches securely every time.
We'll cover how to identify your hinge type, the tools you'll need, and the specific steps for tightening the two most common types of self-closing hinges. By the end, you'll know exactly how to get your door swinging shut just right.
Before we start the adjustment process, it's helpful to understand what you're working with. Self-closing door hinges, also known as spring-loaded hinges, look similar to standard door hinges but contain an internal spring. This spring provides the necessary torque to pull the door closed automatically after it has been opened.
You can usually identify them by their larger, cylindrical barrel, which houses the spring mechanism. You'll often find a series of small holes at one end of the barrel and a tension pin inserted into one of them. These components are key to adjusting the hinge's closing force. Typically, only one of the three hinges on a door is a self-closing one, though heavier doors might have two.
Adjusting your hinge is a simple task, and you probably already have the necessary tools on hand.
Here’s what you’ll need:
· Hex Key (Allen Wrench): This is the most important tool. It's used to turn the adjustment mechanism inside the hinge. Most self-closing hinges come with a specific hex key, but if you've lost it, a standard set of hex keys will have the size you need.
· Tension Pin: This small metal rod is used to hold the spring's tension while you make adjustments. It usually comes with the hinge. If it's missing, you can use a small nail or a sturdy paperclip as a temporary substitute.
· Safety Glasses: It's always a good idea to protect your eyes when working with tensioned springs.
· Ladder or Step Stool (Optional): If you can't comfortably reach the top hinge, use a stable ladder.
There are two primary types of self-closing hinges, and the adjustment method differs slightly for each. The first type uses a series of holes at the top of the hinge to set the tension, while the second type has a tension adjustment screw at the bottom. We'll cover both.
This is the most common design for residential self-closing door hinges. You’ll see a ring of small holes at the top or bottom of the hinge barrel, with a tension pin inserted into one of them.
Start with the door fully closed. This releases the tension from the spring, making it safer and easier to handle the hinge.

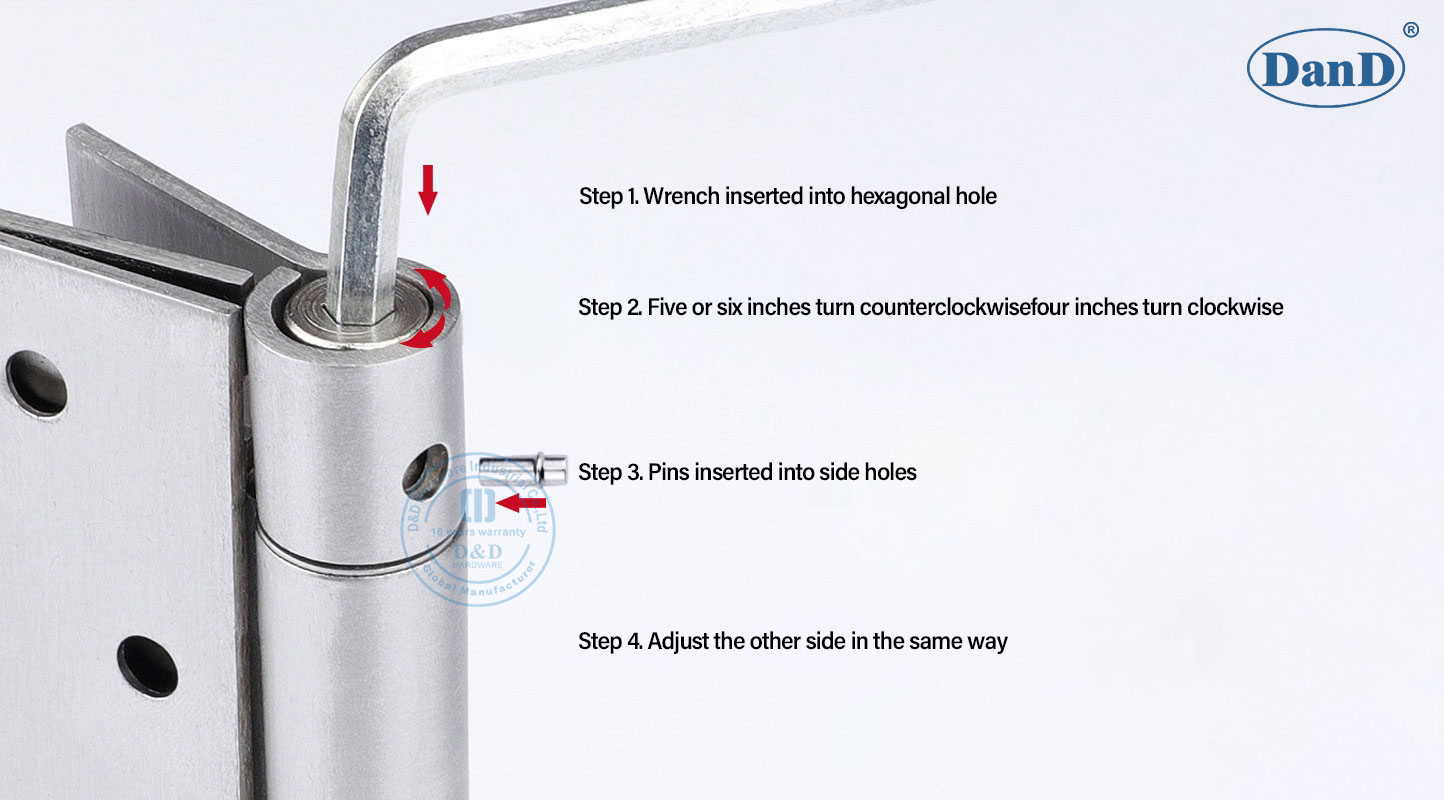

Look at the top or bottom of the hinge barrel. You'll find a small hexagonal slot in the center. Insert the correct size hex key into this slot.
To increase the tension, you need to turn the hex key. The direction depends on the hinge. For most hinges, you'll turn it clockwise (to the right). You will feel the resistance from the spring as you turn.
Important: Turn the hex key just enough to release the pressure on the tension pin. This will allow you to remove it.
While holding the hex key in place, use your other hand (or a pair of pliers if it's stuck) to pull the tension pin out of its hole. Be careful not to let the hex key slip, as the spring is under tension.
Continue turning the hex key clockwise to the next hole in the sequence. Each hole represents a step up in tension. Insert the tension pin into the new, tighter hole. A single hole adjustment can make a significant difference, so it’s best to proceed one hole at a time.
Slowly release the hex key and remove it. Open the door and let it go to see how it closes. If it closes too slowly, repeat the process by moving the pin to the next hole. If it slams shut, you've added too much tension. In that case, turn the hex key just enough to remove the pin, then move the pin to the previous hole (one with less tension).
Your goal is a door that closes smoothly and latches securely without slamming.
Some self-closing door hinges, often found on commercial or heavier doors, use a screw at the bottom of the hinge barrel for adjustment. This method doesn't require a tension pin.
With the door closed, look at the bottom of the hinge barrel. You should see a small screw, which is often a flathead or hex screw.
Using the appropriate screwdriver or hex key, turn the screw to adjust the spring tension.
· To increase tension (make the door close faster/harder): Turn the screw clockwise.
· To decrease tension (make the door close slower/softer): Turn the screw counter-clockwise.
Make small adjustments—a quarter or half-turn at a time—and then test the door. Open it and watch it close. Continue making small adjustments until the door closes at the desired speed and latches properly.
This method is often simpler because you don't need to handle a separate tension pin.
· The Door Still Doesn’t Latch: If you've tightened the hinge to its maximum setting and the door still won't latch, check for other issues. The door might be misaligned, or the strike plate on the door frame could be out of position.
· The Hinge Makes Grinding Noises: A squeaking or grinding noise may indicate the hinge needs lubrication. Apply a silicone-based lubricant into the top of the hinge barrel.
· The Tension Pin is Lost: If you've lost the original tension pin, a small but sturdy nail or even a heavy-duty paperclip can work as a temporary replacement. However, it's best to get a proper replacement pin for a secure, long-term fit.
Adjusting your self-closing door hinges is a quick and satisfying DIY task that can improve the safety and functionality of your home. By following these simple steps, you can easily tighten the hinge to get your door closing exactly how you want it—no more doors left ajar or slamming shut.
Next time your door starts to lag, you'll have the confidence to grab your hex key and fix it in minutes. A well-adjusted self-closing door is a small detail that makes a big difference in daily life.
