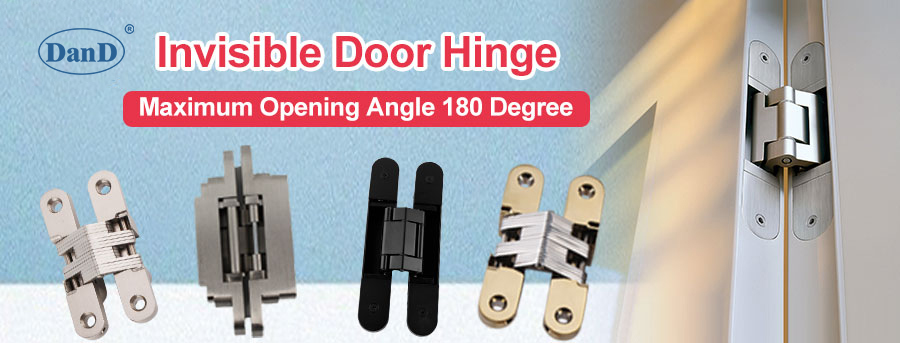

Hidden door hinges are a popular choice for modern homes and commercial spaces due to their sleek, minimalist design. Unlike traditional hinges, hidden door hinges are concealed within the door and frame, providing a clean and seamless appearance. However, adjusting hidden door hinges can be a bit more challenging than adjusting standard hinges. This article will guide you through the process of adjusting hidden door hinges, with a focus on adjustable door hinges, 3D door hinges, and 180-degree door hinges. These three types of hinges are among the most commonly used and offer unique features that make them ideal for various applications.
Hidden door hinges, also known as concealed hinges, are designed to be invisible when the door is closed. They are typically used in high-end furniture, cabinetry, and interior doors where aesthetics are a priority. The main advantage of hidden door hinges is that they allow the door to blend seamlessly into the surrounding wall or frame, creating a modern and sophisticated look.
However, because these hinges are concealed, adjusting them requires a bit more precision and attention to detail. The process involves aligning the door properly, ensuring smooth operation, and making sure the hinge mechanism is functioning correctly.

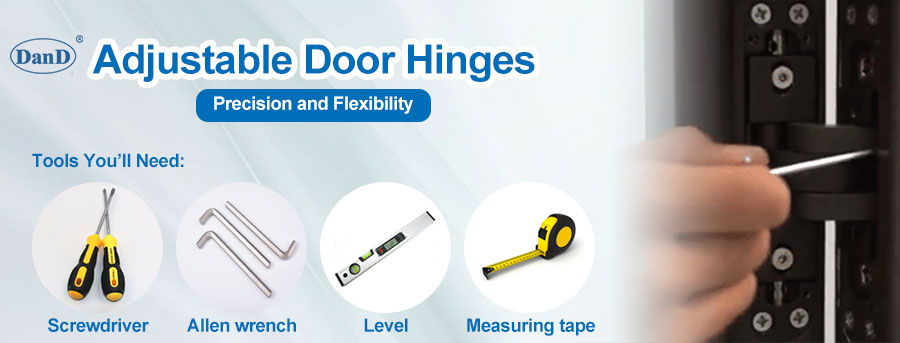

Adjustable door hinges are a type of hidden hinge that allows for fine-tuning after installation. These hinges are ideal for situations where precise alignment is critical, such as heavy doors or doors that need to fit flush with the frame. Here’s how to adjust them:
● Screwdriver (usually a Phillips or flathead, depending on the hinge)
● Allen wrench (for some models)
● Level
● Measuring tape
● Identify the Adjustment Screws: Most adjustable door hinges have three screws that control different aspects of the door’s alignment. These screws typically adjust the door’s height, depth, and lateral position.
● Adjust the Height: If the door is sagging or not aligned with the frame, locate the height adjustment screw. Turn it clockwise to raise the door or counterclockwise to lower it. Use a level to ensure the door is perfectly horizontal.
● Adjust the Depth: If the door is too tight or too loose against the frame, use the depth adjustment screw to move the door closer to or farther from the frame. This is especially useful for ensuring a proper seal on doors with weather stripping.
● Adjust the Lateral Position: If the door is not aligned vertically, use the lateral adjustment screw to move it left or right. This helps ensure the door fits snugly within the frame without rubbing against it.
● Test the Door: After making adjustments, open and close the door several times to ensure it operates smoothly. Make additional tweaks as needed.
Adjustable door hinges are a great choice for anyone who values precision and flexibility. They allow you to make fine adjustments without removing the door or hinge, saving time and effort.

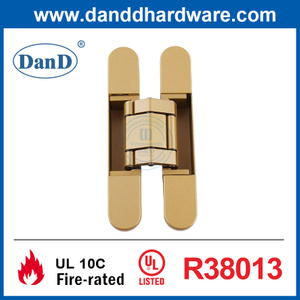

3D door hinges are a more advanced type of hidden hinge that allows for adjustments in three dimensions: height, depth, and lateral position. These hinges are particularly useful for heavy doors or doors that require precise alignment in multiple directions. Here’s how to adjust them:
● Screwdriver
● Allen wrench
● Level
● Measuring tape
● Locate the Adjustment Mechanism: 3D door hinges typically have a series of screws or knobs that control the door’s position in three dimensions. These are usually located on the hinge itself or on a separate adjustment plate.
● Adjust the Height: Use the height adjustment screw or knob to raise or lower the door. This is particularly useful for correcting sagging or uneven gaps at the top or bottom of the door.
● Adjust the Depth: Use the depth adjustment screw or knob to move the door closer to or farther from the frame. This is important for ensuring the door fits snugly without rubbing against the frame.
● Adjust the Lateral Position: Use the lateral adjustment screw or knob to move the door left or right. This helps align the door vertically and ensures it operates smoothly.
● Test the Door: After making adjustments, test the door to ensure it opens and closes properly. Make additional adjustments as needed.
3D door hinges are ideal for situations where precise alignment is critical. They offer unparalleled versatility and are a great choice for heavy or high-traffic doors.
180-degree door hinges are a specialized type of hidden hinge that allows the door to open a full 180 degrees. This is particularly useful for spaces where maximizing door swing is important, such as small rooms or tight corners. Here’s how to adjust them:
●Screwdriver
● Allen wrench
● Level
● Measuring tape
● Check the Door Swing: Before making any adjustments, ensure the door is able to swing open the full 180 degrees. If it’s not, the hinge may need to be adjusted.
● Adjust the Hinge Angle: Some 180-degree door hinges have an adjustment screw that controls the angle of the door swing. Use this screw to increase or decrease the angle as needed.
● Align the Door: Use the height, depth, and lateral adjustment screws (if available) to align the door with the frame. This ensures the door operates smoothly and fits snugly when closed.
● Test the Door: After making adjustments, test the door to ensure it opens and closes properly. Make additional adjustments as needed.
180-degree door hinges are a great choice for maximizing space and ensuring smooth operation in tight areas. They are particularly popular in modern homes and commercial spaces where space efficiency is a priority.
● Regular Cleaning: Dust and debris can accumulate in hidden door hinges, affecting their performance. Regularly clean the hinges with a soft cloth and a mild cleaner to keep them functioning smoothly.
● Lubrication: Apply a small amount of lubricant to the hinge mechanism to reduce friction and prevent squeaking. Be sure to use a lubricant that is safe for the hinge material.
● Check for Wear and Tear: Over time, hidden door hinges may wear out or become loose. Regularly inspect the hinges for signs of wear and tighten any loose screws as needed.
● Professional Help: If you’re having trouble adjusting your hidden door hinges, consider consulting a professional. They have the tools and expertise to ensure your hinges are properly aligned and functioning.
Adjusting hidden door hinges may seem daunting at first, but with the right tools and techniques, it’s a task that can be easily accomplished. Whether you’re working with adjustable door hinges, 3D door hinges, or 180-degree door hinges, the key is to take your time and make small, incremental adjustments. By following the steps outlined in this guide, you can ensure your hidden door hinges are properly aligned and functioning smoothly, enhancing both the aesthetics and functionality of your space.
Hidden door hinges are a testament to the marriage of form and function in modern design. With their sleek, concealed appearance and advanced adjustment capabilities, they offer a level of precision and versatility that traditional hinges simply can’t match. So the next time you find yourself struggling with a misaligned door, remember these tips and take control of your hidden door hinges with confidence.
